3 Axle LiveStock Fence Trailer

3 Axle LiveStock Fence Trailer:

CIMC fence cargo trailer is commonly used in transportation industry. Fence cargo trailer is used to deliver varioius kinds of products such as steel, pipe, lumber, bulker cargo and other things that are difficult to be loaded into the back of the trailer.

CIMC fence cargo trailer is famous for their extremely robust steel structure. We can provide different flatbed trailers to meet your various requirements.

Stake Trailer | 3 Axle LiveStock Fence Trailer Prices in Sudan

Stake Trailer | 3 Axle LiveStock Fence Trailer Prices in Sudan

Stake Trailer | 3 Axle LiveStock Fence Trailer Prices in Sudan

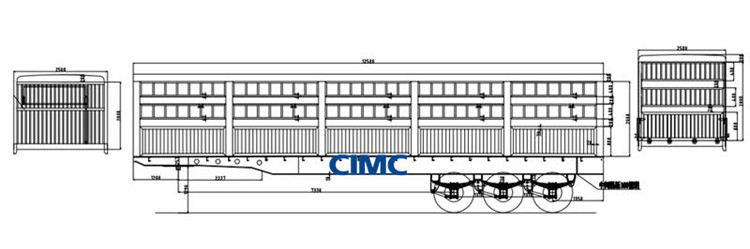

Stake Trailer Specification:

L*W: 12500mm*2500mm

Sidewall Height: 1800mm

Max Payload: <60T

Application: Livestock Transport

Material of the main beam: Q345 high strengh steel

Bottom of the Platform: 3mm-5mm thick (according to the loading capacity)

King Pin: JOST Brand 2.0 or 3.5inch(bolted or welded type)

Suppoort leg: JOST leg

Suspension: Mechanical suspension

Axles: FUWA/BPW/CIMC/Other

Tires: 12.00R22.5/315 80R 22.5( Specially designed and for overseas markets)

Brake System: WABCO brake system

Elecetric System: 24-volt lighting system

Fence Trailer Advantages:

1. Fence cargo trailer is made by the wear-resistant and high-strengh steel, which makes the trailer have higher loading capacity  and longer service life

2. The main beam of the semi trailer is welded by the automatic arc-submerging welding method, there isn’t interface between the steel plate，it can ensure the intergrated main beam, so the main beam is more stronger and more durable

3. All the spare parts we adopt are World Famous brand. We use famous German WABCO braking valve, which will definitely shorten the Braking Distance, to make the safety of trailers and drivers.

4. The trailers floor is checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff.
