CIMC Tanker Trailer

CIMC Tanker Trailer

  • 1/1

CIMC Fuel/Petrol/Diesel/Oil/Gasoline Tanker Trailer for Sale



Table of Contents

1. About CIMC fuel tanker trailer

1-1. What is a fuel tanker trailer?

1-2. What are the common types of fuel tanker trailer?

1-3. What can the petrol tanker trailer transport?

1-4. How many Litres does a fuel tanker carry?

2. CIMC fuel tanker trailer specs, capacity and drawing

3. Quality testing of CIMC fuel tanker semi trailer before leaving the factory

4. Package and delivery of petrol tanker trailers?

5. How do fuel tanker trucks work?

6. Some precautions when using fuel tank trailers

7. How to maintain the gas tanker trailer?

8. How many Litres is a fuel tanker?

9. Failure and repair methods.



1. About CIMC fuel tanker trailer

1-1. What is a fuel tanker trailer?

Fuel tanker trailers are mainly used for transport liquid and oil. CIMC fuel tank body is generally made of carbon steel sheet, and it can also be made of aluminum alloy, stainless steel, polyethylene and other materials.

CIMC fuel tanker trailer adopt advanced design concept. We can customized the tankers for you according to your request. The tank body has sufficient strength. There are anti-shock plates inside the diesel tank trailer. There are manholes and liquid discharge valves in the tank accessories. To fabric the most durable tankers, especially for Africa Market, considering the road condition. This distortion resistance, earthquake resistance and bump, make your transport safety, also beneficial.

CIMC 3 axle fuel tanker trailer for sale

CIMC 3 axle fuel tanker trailer for sale



CIMC 4 axle 90000liters diesel fuel trailer for sale

CIMC 4 axle 90000liters diesel fuel trailer for sale



CIMC 3 axle aluminum fuel tanker trailer for sale

CIMC aluminum fuel tanker trailer for sale

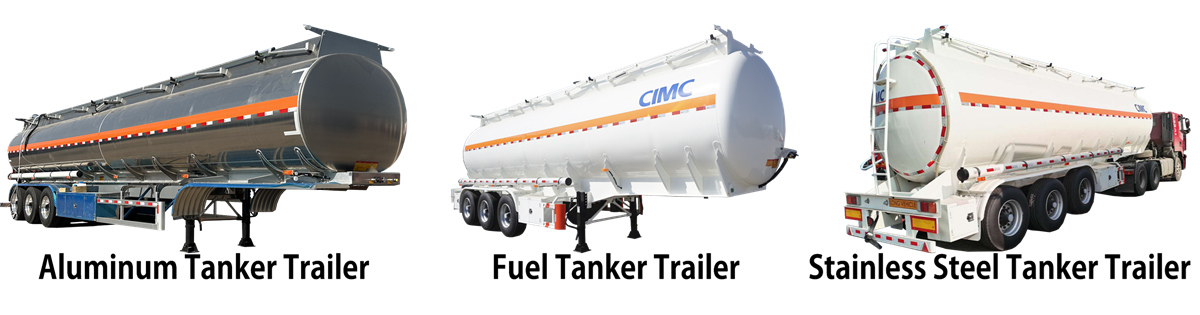

1-2. What are the common types of fuel tanker trailer?

CIMC Petrol tanker trailer material: carbon steel, stainless steel, aluminum alloy, pure aluminum tank, rubber-lined, rotomolded, plastic tank, glass steel tank can also be used as required

Tanker trailer body types: square, oval, round.

1-3. What can the petrol tanker trailer transport?

Diesel tank trailer mainly transport gasoline, diesel, crude oil, lubricating oil, olive oil, soybean oil, olive oil, alcohol, edible oil. Stainless steel tanker trailer can also be used to transport chemical products such as sulfuric acid, hydrochloric acid, phosphoric acid and caustic soda. raw material.

1-4. How many Litres is a fuel tanker?

CIMC fuel tanker trailer can be designed in different capacities: 30 tons, 40 tons, 50 tons, etc. The volume of petrol tanker trailer often purchased are 30 cubic meters, 35 cubic meters, 40 cubic meters, 45 cubic meters, 50 cubic meters, 55 cubic meters, and 60 cubic meters.



2. CIMC fuel tanker trailer specs, capacity and drawing

Most popular 3 axle 40000liters fuel tanker trailer

Dimension: 11000mm*2500mm*3700mm(the exact size depends on the final design)

Volume: 40000liters

Application:  transport Fuel, Oil, Diesel

Tank body:

Material: Carbon steel

Tank body and separate compartment plate:  6mm

Compartments: 2 compartments (based on customer needs)

Manhole cover: Carton steel or Aluminum alloy API manhole cover 500mm (diameter)

Discharge valve: Diameter is 3 or 4 inch

Bottom valve: Aluminum  API Pneumatic Bottom Valve

Tanker body test: Hydrostatic test to 5 psi (35 Kpa) on each compartment

Chassis:

Axles: 3 units, FUWA/BPW/CIMC/other

Landing Gear: JOST brand

King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Suspension: Mechanical suspension and air suspension

Brake System: WABCO

Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional

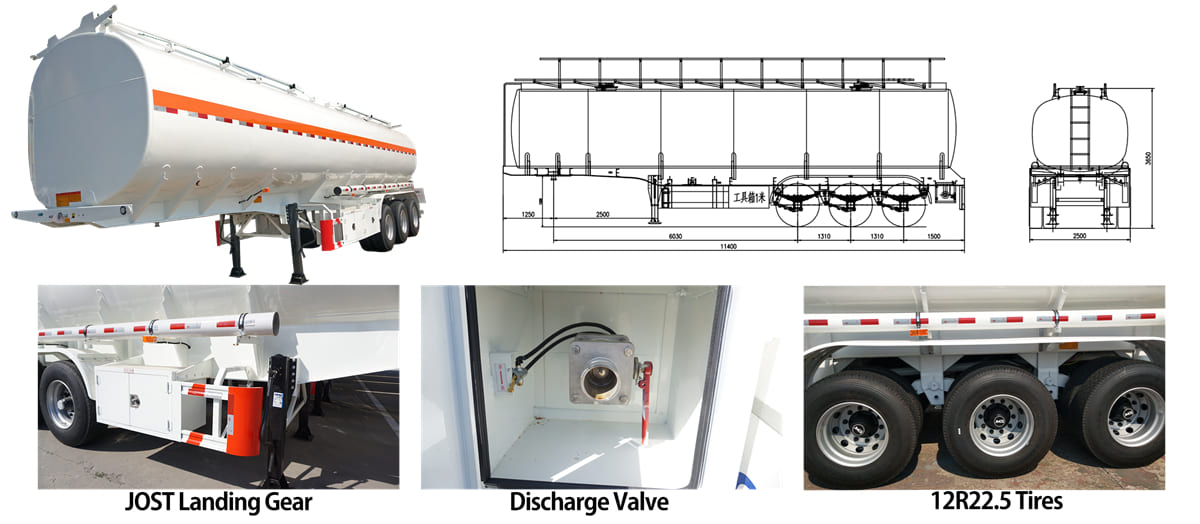

CIMC 2 compartment 3 axle fuel tanker trailer drawing



3. Quality testing of CIMC fuel tanker semi trailer before leaving the factory

Water injection experiment: to ensure the high sealed of tank body and avoid the leaks oil

Air pressure detection: to ensure that the oil and gas will not volatilize under high temperature, and to ensure the safety of the vehicle while driving and parking.

After the production of the oil tank truck trailer is completed, it must be inspected in the inspection room to check whether the tank has defects (impurities, etc.) to prevent potential safety hazards.



4. Package and delivery of petrol tanker trailers?

CIMC fuel tanker trucks trailer for sale usually adopt by bulk carriers or ro-ro ships. We spray wax on the tank. Cover it with a waterproof rain cloth.

Some countries can also ship by container or frame cabinet.

CIMC diesel tanker trailer ready for shipment



5. How do fuel tanker trucks work?

1> European standard aluminum alloy tank cover

Aluminum alloy European standard tank cover is also manhole cover. It’s usually on the top of the oil tank, the tank cover has built-in breathing and emergency exhaust functions. CIMC diesel trailer has oil and gas recovery valve, oil measuring hole, anti-overflow probe on the manhole cover, etc.

During the filling process of the anti-overflow sensing system, when the liquid level reaches the detection position, the sensing system will automatically alarm to stop the loading of the oil.

The built-in breathing valve keeps the internal pressure of the CIMC fuel tank trailer stable and balanced with the external pressure when transporting oil.

Its spill-proof design prevents tanker trucks from being sealed in the event of an accident.

When the pressure of the emergency exhaust device in the fuel tank rises sharply, it will automatically open to release the pressure in the fuel tank, thereby preventing accidents and greatly improving the safety of oil transportation.

2> Bottom loading system of the storage tanker trailer

In the previous fuel tank semi trailer, we pour oil into the tank from the manhole above the tank trailer.Add a special oil pump at the rear of the petrol tanker trailer to realize the reverse loading and unloading of diesel.

Now, in order to improve the safety, CIMC oil tanker trailer production has all done the bottom filling process.

What is bottom filling? Important components for bottom filling: The main components of bottom filling are exhaust gas recovery system, anti-spill system, subsea valve, European standard tank mouth, control head, SO2 socket, anti-static system, bottom canned API connector.

3> Subsea valve

Subsea valve(emergency shut-off valve). Simple operation, time saving, safety and environmental protection.

Pressure-balanced subsea valve is used for multi-compartment tanker trucks, which can carry out separate loading and unloading of different tanks. The three-way design simplifies the pipeline, reduces the load, easy to operate, and safe and reliable.

The pneumatic shut-off valve is installed at the bottom of the tanker tank and can be refueled. The internal pressure of the valve is small, the flow is large, and there is a cut-out groove on the flange of the valve body.If the force is too large, the car body pipeline and the tank body will be automatically disconnected, and the automatic centering plunger and durable spring will still remain sealed, and the medium in the tank will not leak, thereby ensuring the safety of the oil tank.

When we can’t open because there is no air source or other reasons, we can open the cylinder piston rod and open it manually.





6. Some precautions when using fuel tank trailers

Oil losses can sometimes occur due to negligence on the basic safety requirements needed for operations. With ever-more rapid technological advancements, the detection and correction of oil handling equipment can be streamlined to guarantee transportation safety. For preventing oil losses, the following is a list of measures to be taken:

1> When filling the diesel fuel trailer, it is recommended to strictly control the safe capacity and loading height of the petrol tanker in order to ensure that there are no oil spills or splash;

2> Filling the oil drum, care should be taken to ensure no oil leaks from the reservoir;

3> When loading and unloading oil, the remaining oil at the bottom of the tank should be sucked;

4> Used oil drums and the bottom of every barrel should be cleaned and drained;

5> In the process of cleaning the oil tank trailer, the remaining oil at the bottom of the tank should be removed.



7. How to maintain the gas tanker trailer?

In addition to the normal inspection of the braking system and the lubrication system, the gasoline tanker semi-trailer should also pay attention to the following points:

1> Do not make the tire pressure too high.

If the tire pressure is too high, the ground contact area of the tire will be reduced. The tread wear will be severe, this will reduce the braking effect when braking. There is no doubt that this will affect driving safety; when the air pressure is too high, the tires will easily explode on bumpy roads.

However, too low tire pressure is not good. Too low tire pressure will accelerate tire wear, increase vehicle fuel consumption, and also affect driving safety and vehicle braking effect.

Factory Show of Fuel Tanker TrailerFactory Show of Fuel Tanker Trailer

2> Too much diesel or gasoline filling in diesel tanker trailer.

Too much diesel or gasoline can easily block the breathing valve. As a result, steam cannot be effectively eliminated, and pressure is generated inside the tanker truck. Valve damage has occurred.



8. How many Litres is a fuel tanker?

The tank semi-trailer is a semi-trailer with a tank structure. Mainly used to transport liquids, bulk materials, and bulk cement.

1. The tank truck series are divided into oil tank trucks, concrete mixer trucks, powdered materials and bulk cement trucks, water supply trucks, etc.

2. The tank body is manufactured by three-dimensional design and advanced processing technology. The chassis adopts special chassis from various manufacturers with advanced technology and reliable performance. Cargo truck with canned containers.

Oil tanker trailer is mainly used for large-scale oil transportation, and the tonnage is generally around 40-60 cubic meters. The 50CBM Fuel tanker trailer square tank material is made of a Q235A steel plate. The tank body has built-in multi-channel reinforced anti-wave baffle plates, and the lower end of the baffle plate has through holes to reduce the impact of the oil in the tank and improve the strength of the tank during driving.

The mouth of the combined tank is located on the top of the tank body. There is a small self-locking cover on the big cover, and a breathing valve is installed on the upper side of the big cover to ensure the same atmospheric pressure inside and outside the tank; it has an electrostatic grounding wire.

3 Axle Fuel Tanker Trailer for Sale Maunfacturer3 Axle Fuel Tanker Trailer for Sale Maunfacturer

Install the oil pump system, take the power from the gearbox side through the power take-off, which can be self-priming and self-draining; with two oil pumping pipes, equipped with quick couplings, and the suction range is 6 meters.

Advantages: high efficiency of loading, unloading and transportation. Guarantee the quality of goods. Conducive to transportation safety. Reduce labor intensity and improve loading and unloading conditions. Save packaging materials and labor. Reduce transportation costs. Tank cars: shipping fuel, lubricating oil, acids, alkalis, water, food and beverages, etc.



9. Failure and repair methods:

1. The rocking resistance of the rocker is too large. Reasons: poor lubrication, replenishing lubricating grease, bearing damage, replacement of bearing gear eccentricity or serious wear, decomposition and inspection of replacement parts screw thread damage, replace the screw.

2. Reasons for fuel tanker of tire swing: loose wheel nuts, tightening of axle bearings, sintering and damage, replacement of bearings, bending of axles, correction and replacement of axle bearings, too large clearances, correct tightening of bearing lock nuts, replacement of bearing grease on time, replacement of axle bearings; excessive tires Partial wear, the verticality of the axis of the axle and the centerline of the frame is serious. Adjust the distance between the two ends of the axle and the traction pin as much as possible.

3. The brake cannot be released, and the brake release is slow. Reason: The system pressure is too low, increase the air brake system pressure to the specified value. The brake return spring is damaged, the spring pipe is blocked, and the emergency relay valve or quick release is checked and cleared. The valve is not working properly. Check and replace the brake cylinder and the stroke of the push rod is incorrect.

45000L Aluminium Fuel Tanker Trailer Price45000L Aluminium Fuel Tanker Trailer Price

4. Braking failure and slow braking Reasons: the gap between the brake shoe friction lining and the brake drum is too large, adjusting the gap, the brake shoe friction lining is excessively worn, replacing the brake shoe lining, the air chamber is damaged, and the air chamber air system is replaced Leakage of the dynamic system causes the pressure to drop. Check the leaking location, repair or replace the parts, and the emergency relay valve is not working properly.
