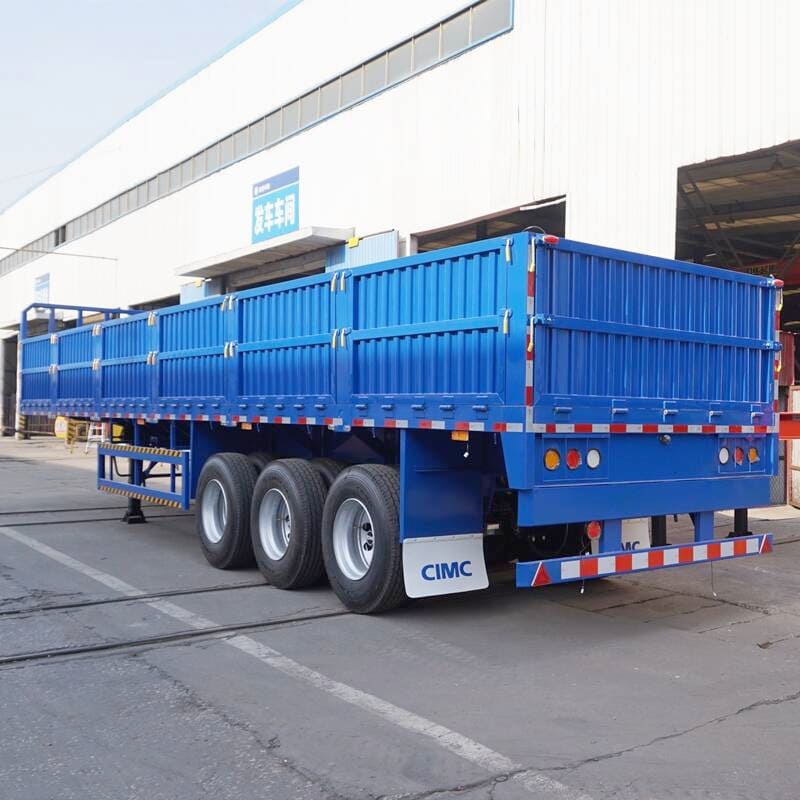

60 Ton Drop Side Wall Trailer

60 Ton Drop Side Wall Trailer:

The 3 Axle Side Wall Semi Trailers for Container or Cargo are widely used to transport container, pipe , steel , lumber , heavy equipment , and any other item that would be difficult to load into the back of a trailer.

The 3 axle drop side trailer is mainly used for transporting steel, timber, stone and other cargo goods, The advantage of the sidewall trailer is that it can carry goods like super long, super wide and super high.it have wide applicability.

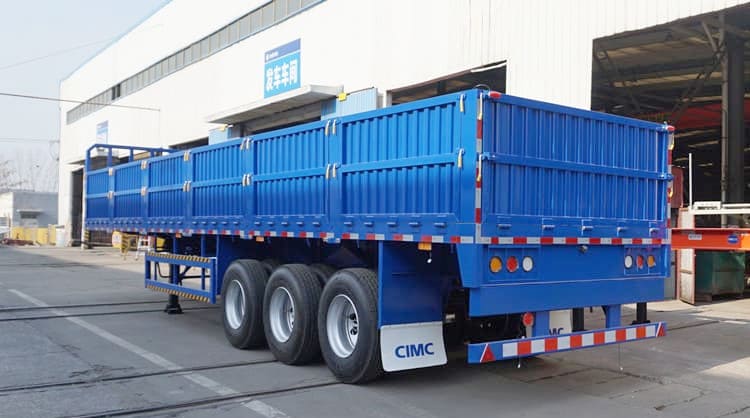

Cargo Semi Trailer | 60 Ton Drop Side Wall Trailer for Sale in Sudan

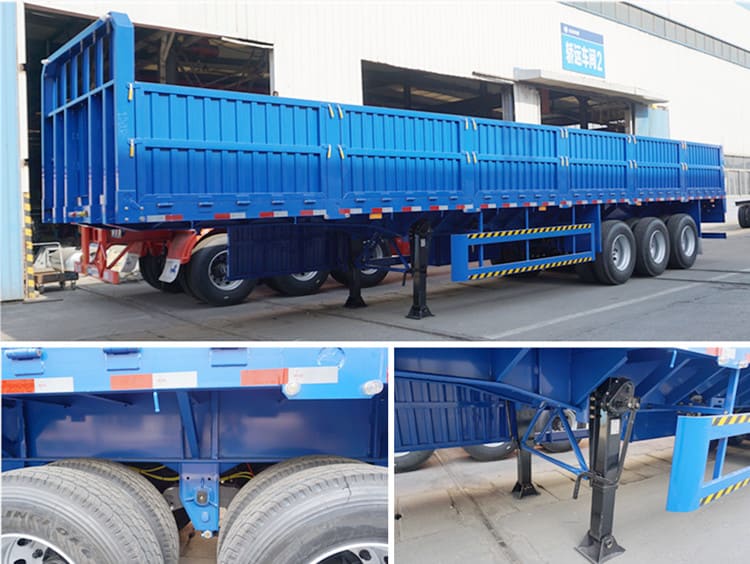

Cargo Semi Trailer | 60 Ton Drop Side Wall Trailer for Sale in Sudan

Cargo Semi Trailer | 60 Ton Drop Side Wall Trailer for Sale in Sudan

Cargo Semi Trailer Specification:

L*W: 12500mm*2500mm

Sidewall Height: 600mm

Max. Payload: <50T

Application: Coal/Cargo/Containers Loading

Material: Q345B Steel

Bottom Platform: 3mm-thick checkered plate

King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Support leg: JOST brand

Suspension: Airbag / Mechanical / bogie suspension

Axles: FUWA/BPW/CIMC/other

Tires: 12.00R22.5/315 80R22.5(Specially designed and for oversea markets)

Brake System: WABCO

Electrical System: 24-volt lighting system

Side Wall Trailer Advantages:

1.Protection device:Trailer protection device consists of side protection and rear protection to protect pedestrians and other vehicles from getting under the side panel cargo semi trailer. It can also reduce wind resistance and save fuel.

2.High side wall:The side wall is divided into a flat plate and a vertical corrugated board. The vertical corrugated board is a typical board, and the strength will be higher. Can be detached or welded to death.

3. To make sure the service life of the semi trailers, all the spare parts we adopt are World Famous brand. We use famous German WABCO braking valve will definitely shorten the Braking Distance, to make the safety of the trailers and the drivers.

4.Traction king pin:The traction pin is an important component that connects the high side trailer to the tractor and withstands traction, and is connected to the traction seat. It is generally forged from chrome-alloyed steel.
