3 Axle 60 Ton Dump Trailer

3 Axle 60 Ton Dump Trailer

18500 USD

Name: CIMC 3 axle Dump Trailer

Capacity: 60T

Lifting system: Hydraulic Lifting Cylinder

Axle: 3 axles, 13T/16T, optional

King Pin: 50#, 90#

SKU: 3 Axle 60 Ton Dump Tipper Trailer
GTIN: 6975766105532
MPN: ZJV9501131
Brand: CIMC

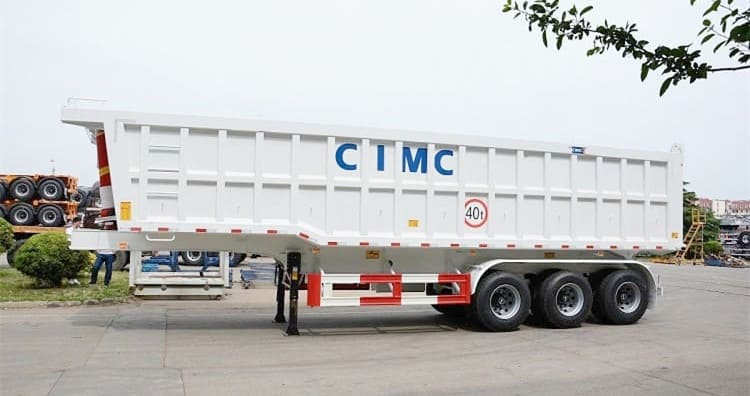

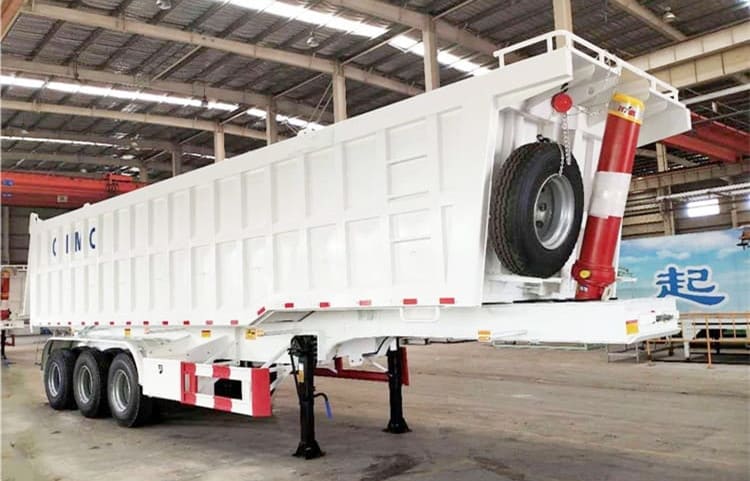

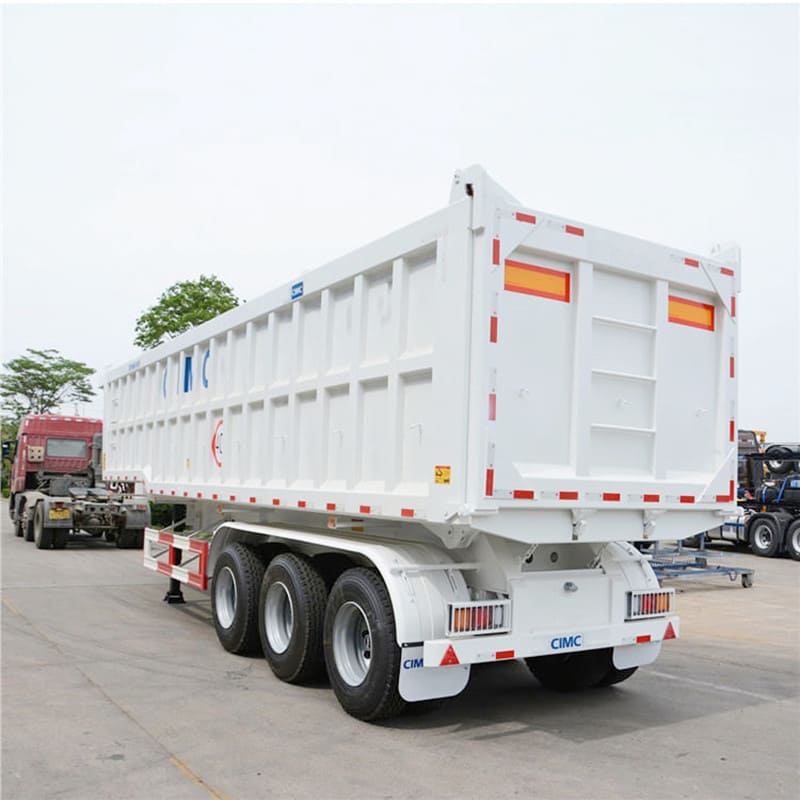

3 Axle 60 Ton Dump Tipper Trailer:

CIMC Dump Trailer adopts high strength steel T700, offering all the durability of high-tensile-strength steel and unique structure design to maximize payload to increase your profitability. So, CIMC designs one of the strongest flatbed trailers on the road today.

CIMC Tipper Trailer equipped with reliable hydraulic cylinder. We can customize the tipper trailers for sale according to your special need, like U shape dump trailer, end dump semi trailer, side tipper, and container tippers.

3 Axle 60 Ton Dump Tipper Trailer for Sale in Sudan

3 Axle 60 Ton Dump Tipper Trailer for Sale in Sudan

3 Axle 60 Ton Dump Tipper Trailer for Sale in Sudan

3 Axle 60 Ton Dump Tipper Trailer for Sale in Sudan

3 Axle 60 Ton Dump Tipper Trailer for Sale in Sudan

3 Axle 60 Ton Dump Tipper Trailer for Sale in Sudan



Dump Trailer Specification:

Name: CIMC Dump Trailer

Tare weight: 60T

Bottom plate thickness(mm): 5mm-8mm /Q235 steel or can be optional

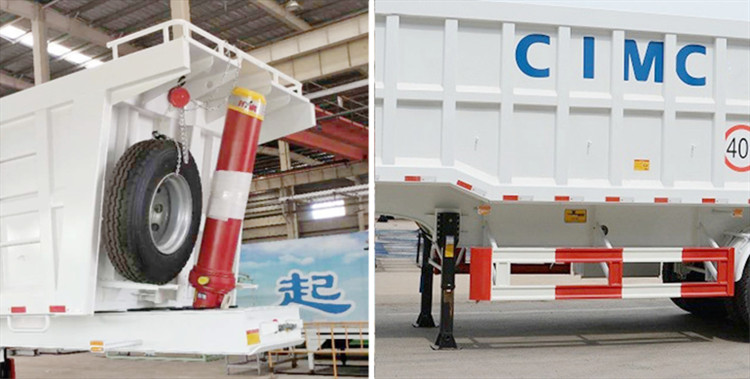

Lifting system: Full set of Hyva (FC214-5-07130) Hydraulic Lifting Cylinder

Main Beams: Height:500mm, upper plate is 16mm,middle is 8mm(double+three plate),down plate is 18mm,material is Q345B steel

Axle: 3 axles, 13T/16T, FUWA/BPW/ Brand

Landing Gear: JOST (D200T)or China Brand 28Tons

King Pin: 50#, 90#

Suspension: Mechanical suspension or Air suspension

Feedback

Review

Directorate from Bengal - 2022-04-14T17:04:20+0800
Very powerful cylinder when I using this CIMC dump trailer!! And obviously the diameter has been widened.
