Name: CIMC 3 Axle Semi Dump Trailers
Capacity: 40T
Lifting system: Hydraulic Lifting Cylinder
Axle: 3 axles, 13T/16T, optional
King Pin: 50#, 90#
CIMC 3 Axle Semi Dump Trailers for Sale adopts high strength steel T700, offering all the durability of high-tensile-strength steel and unique structure design to maximize payload to increase your profitability. So, CIMC designs one of the strongest Tipper Trailers for Sale on the road today.
CIMC 3 Axle Semi Dump Trailers equipped with reliable hydraulic cylinder. We can customize CIMC Semi Dump Trailers according to your special need, like U shape dump trailer, end dump semi trailer, side tipper, and container tippers.
1. Leaf spring and suspension: The leaf spring is widened and thickened, the shock absorption effect is good, the suspension is widened, and the center pin is wider, which makes the vehicle more stable during driving.
2. Self-weight: We can emphasize the weight of CIMC 3 Axle Semi Dump Trailers to our customers, weigh more weight and better carrying capacity;

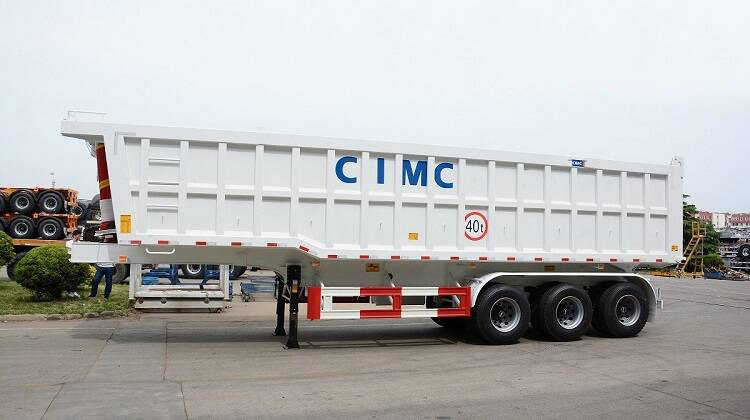

CIMC 3 Axle Semi Dump Trailers for Sale in Chile

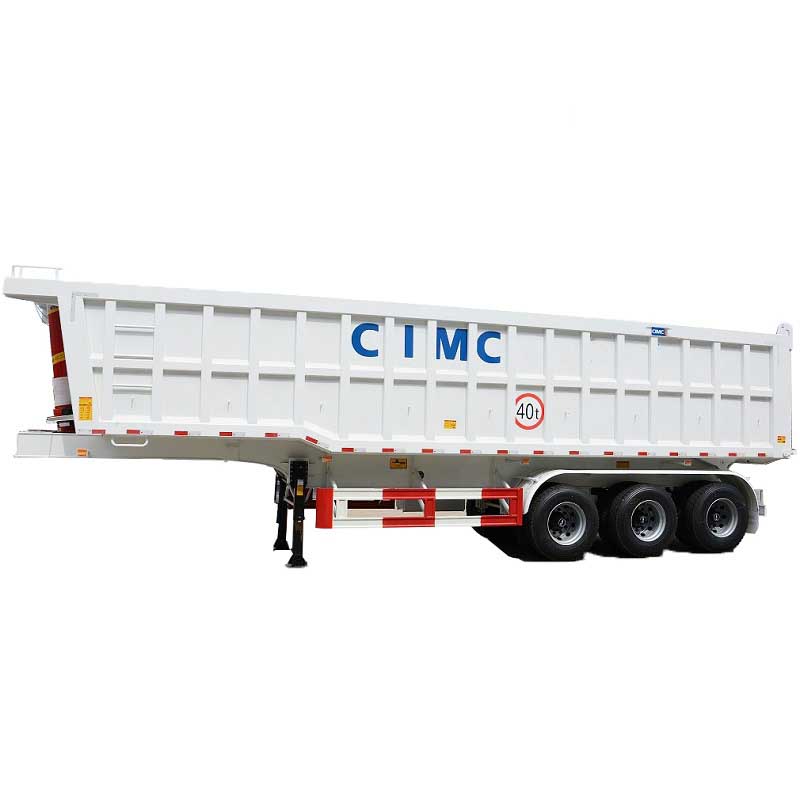

CIMC 40T Semi Dump Trailers for Sale
Specification:
Name: CIMC 3 Axle Semi Dump Trailers
Tare weight: 40T
Bottom plate thickness(mm): 5mm-8mm /Q235 steel or can be optional
Lifting system: Full set of Hyva (FC214-5-07130) Hydraulic Lifting Cylinder
Main Beams: Height:500mm, upper plate is 16mm,middle is 8mm(double+three plate),down plate is 18mm,material is Q345B steel
Axle: 3 axles, 13T/16T, FUWA/BPW/ Brand
Landing Gear: JOST (D200T)or China Brand 28Tons
King Pin: 50#, 90#
Suspension: Mechanical suspension or Air suspension
