Max payload: 60T
Suspension: Bogie/Air/Mechanic/Rigid Optional
Function: Transport Sand and Stone Transport
Brake system: WABCO Valve
The dump tipper carriage is inclined at a certain angle, so that the cargo in the carriage is unloaded.The dump trailer carriage adopts rear-dump and side -dump self-unloading methods, which improves the efficiency of the bulk cargo transport by the loader.
There are four types of tipper tractor trailer: rear tipping semi trailers, side rock dump semi trailer, tipper semi trailer, and flatbed type tipping trailer.The power of the dump truck trailer engine is used to complete the dumping mechanism.
The dump tipper hydraulic lift system is mainly composed of power take-off (transmission), hydraulic pump, lift valve, pneumatic control valve, limit valve, hydraulic cylinder, hydraulic oil tank, high (low) pressure oil pipe and so on.
The lift valve sends high pressure oil to the oil cylinder or discharges it into the hydraulic oil tank under the control of the air control valve, thereby achieving the functions of lifting, stopping and lowering the hydraulic oil cylinder.The tipper semi trailer train is mainly composed of a tractor and a semi-trailer. The tractor is connected by a saddle and a semi-trailer to form a semi-trailer train.

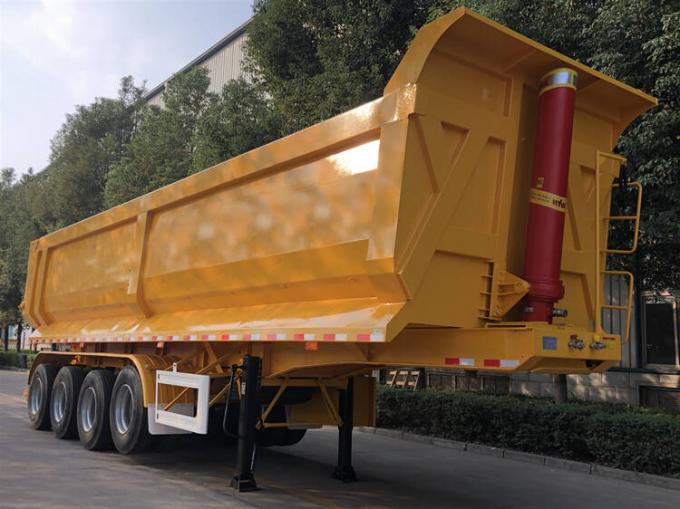

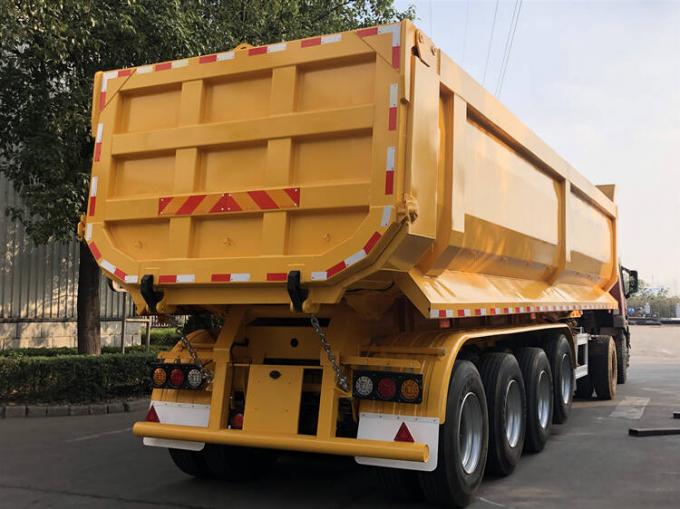

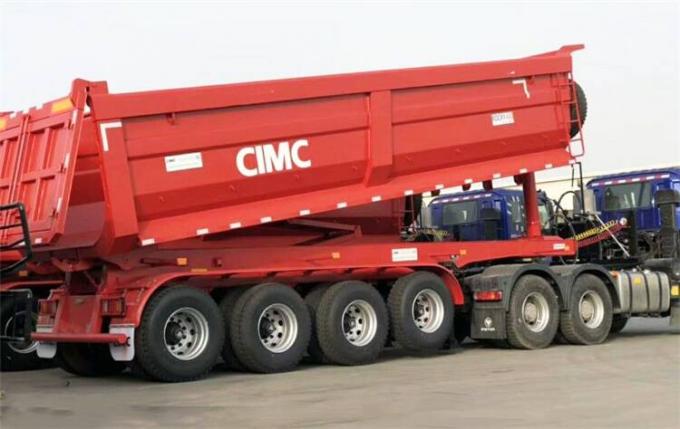

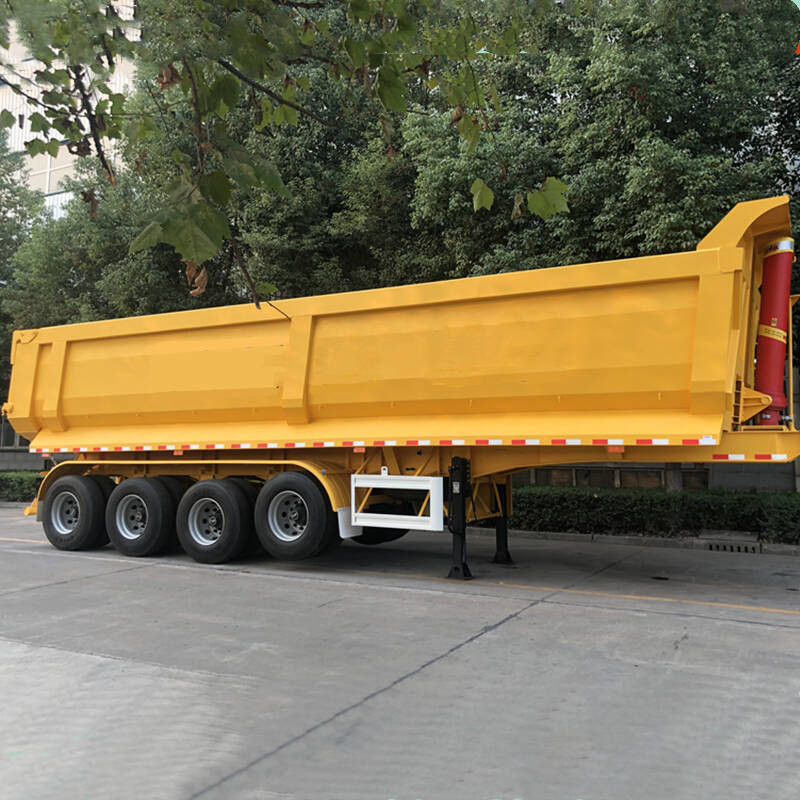

4 Axle Tipper Semi Trailer Price
semi tipper trailers for sale
tractor tipper trailer price
| Volume: | 33CBM |
| Axles: | 4 axles |
| Suspension: | Heavy duty mechanical suspension |
| Tipping system: | 196 hydraulic cylinder |
| Tire | 16 units |
| King pin | 90# |
| Landing gear | JOST |
| Brake system | WABCO |
| Electrical system | 24V, LED lights |
|
1.The new hydraulic tipper tractor trailer should be slowly raised during the running-in period. In principle, we should control the engine speed at about 1000 rpm, and it should not exceed 1500 rpm after the running in period; |
| 2.The high pressure oil pipe must be replaced every two years. In daily maintenance, if you find that the hose is leaking, damaged or partially swollen or cracked, you should replace it in time; |
| 3.Due to the existence of impurities such as iron filings in the hydraulic system during the running-in of the tractor tipper trailer, when the side tipper trailer is lifted about 300 times, we should replace the hydraulic oil and clean the hydraulic oil box in time; |
