Size: 11000*2500*3600mm
King pin: 2"(50mm) or 3.5"(90mm) JOST Brand
Color: Customers Optional
Function: Transport Sand and Stone Transport
The built-in structure of the semi trailer tipper of rear door can guide the cargo during unloading, avoid the impact of cargo accumulation on the rear of the vehicle, and protect the rear parts of the tractor trailer tipper. The back door opens smoothly for easy unloading.
Wear-resistant steel has good impact toughness, and its ability to resist dents is significantly better than that of ordinary structural steel when subjected to heavy impact. This property is suitable for the production of dump tipper bodies and is suitable for thinning of steel plates.

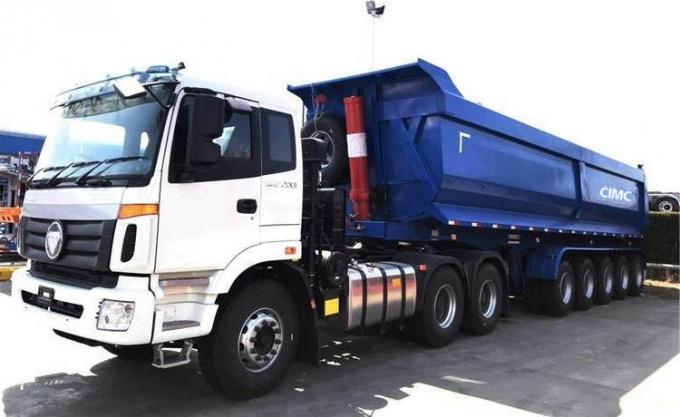

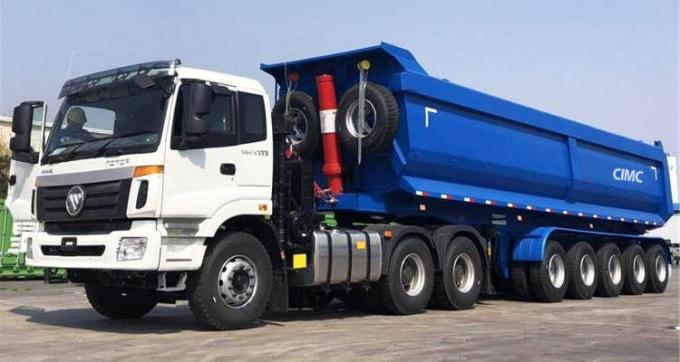

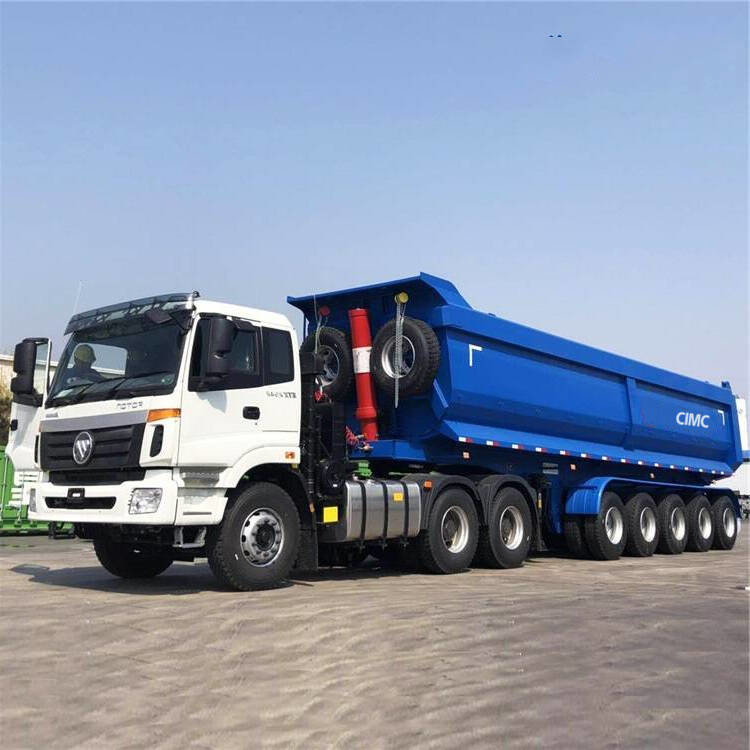

5 axle dump truck
semi tipper trailers for sale
| Overall dimension: | 11000mm * 2500mm *4000mm |
| Volume: | 80-100T |
| Axles: | 6 axles |
| Suspension: | Heavy duty mechanical suspension |
| Tipping system: | 196 hydraulic cylinder |
| Tire | 24 units |
| King pin | 90# |
| Landing gear | JOST |
| Brake system | WABCO |
| Electrical system |
24V, LED lights |
| 1.With a dump truck trailer that has been used for a while, it's possible that the feed line has aged, or the filter of the oil outlet of the oil storage tank is blocked, causing a poor oil feed. |
| 2.New tipper trailer this phenomenon, may be the oil pump into the oil pipe is too thin or into the oil pipe is deflated caused by. The oil inlet pipe should be thickened, and the oil inlet pipe with high strength and hardness should be used. |
| 3.Sometimes when the pickup force, gear pumps make a rasping noise, which is mostly due to insufficient oil pump into the oil caused by. |
| 1.Auxiliary beams: a total of 4 web beams, which can make the bottom of the box better bearing capacity and will not easily deform. The lattice structure design of the side door makes the side door stronger; |
| 2.Leaf spring and suspension: The leaf spring adopts a widening and thickening type, which has good shock absorption effect. The suspension adopts a widened type and the center pin is wider, which can make the vehicle more stable during driving; |
| 3.Flip brackets: 4 flip brackets, which can make the rear end force more even when unloading, and it is not easy to damage the vehicle; |
| 4.Cross balance beam: There is a balance beam at the front and rear of the beam, which can better support the beam and prevent deformation; |
