Triple Axle Dump Trailer-CIMC Manufacturer

Triple Axle Dump Trailer-CIMC Manufacturer Description:

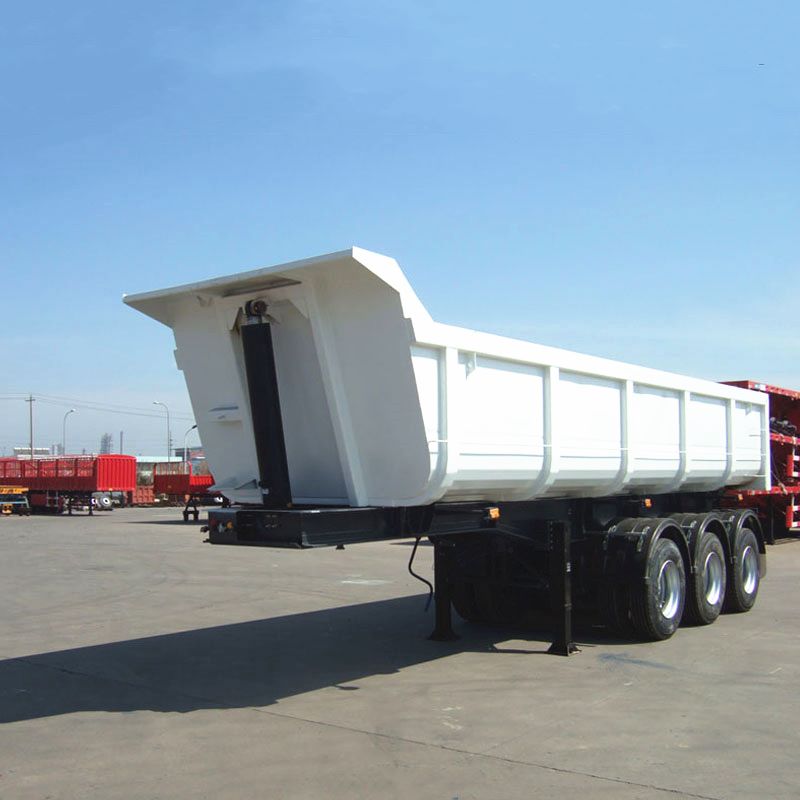

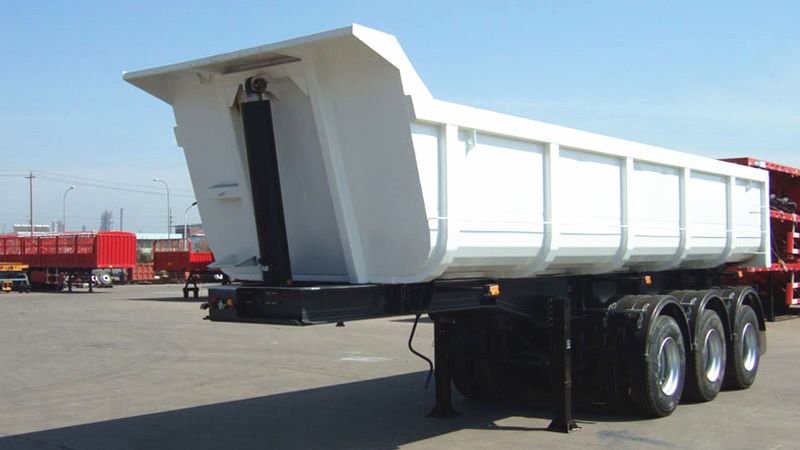

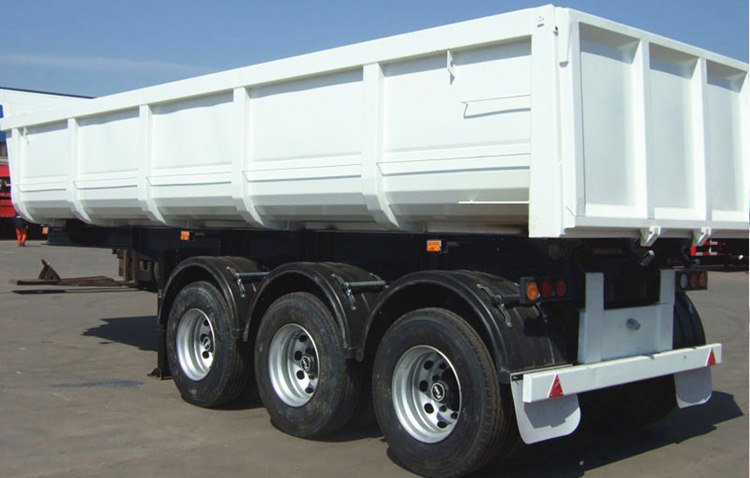

CIMC 3 Axle End Dump Trailers are equipped with HYVA cylinder, which is more reliable and more safety, all key parts of dump trailer are from famous brands boty at home and aboard.

CIMC can supply 2 axles, 3 axles, 4 axles tipper semi trailer, which loading capacity from 40 ton 80 ton for customer specific requirements. Because of Reliability, durability and the low maintenance of CIMC rear end U shape tippers semi trailer have been appreciated around the world.

Triple Axle Dump Trailer-CIMC Manufacturer

Specification:

Dimension: 9300*2500*3700

Model: Heavy duty and extra durability designed I beam

Axle: 3 Axles

Hydraulic system: HYVA cylinder

Suspension: Mechanical suspension

Lifting system: Front lifting

Kingpin: 3.5’’ bolt - in king pin 90

Landing gear: JOST

Braking system: WABCO

Tire: 11.00R20

Accessories: One standard tool box , one rocker handle, one Shaft wrench

Competitive Advantage-CIMC 3 Axle End Dump Trailer

1.Frame body Q345B high strength structure steel, automatic submerged arc welding throughout beams, and other cross-section main stringers structure for optimum carrying effect

2. Well-known brand axles, suspension systems, high performance, and reliable to use, to ensure good performance of the vehicle

3. CIMC dump tipper trailers are equipped with HYVA cylinder, which is more reliable and more safe

4. Full braking and electrical systems at home and abroad in accordance with ISO standard, optional ABS system, braking, lighting is absolutely safe and reliable.

5. We suppply tipper semi trailers with multiple customization options.
