Overall dimension:6700mm * 2500mm *2900mm
Loading capacity: 60T
Axles:3 axles
Suspension:Heavy duty mechanical suspension
Tipping system: 196 hydraulic cylinder
CIMC adopts high strength steel, offering all the durability of high-tensile-strength steel and unique structure design to maximize payload to increase your profitability.
This type of trailer could bear the bad road conditions. We reinforce the sides with high tensile strengthening rip and the channel steel-reinforced enclosure shape design. The sides are welding molding which increasing the loading capacity. This type of trailer could be used for nearly 10 years.
Main parts, especially the stress point, we'll adopt the reinforced design. The strength of CIMC skeleton trailers is our reinforced main beam.
20Ft Flatbed Tipper Trailer

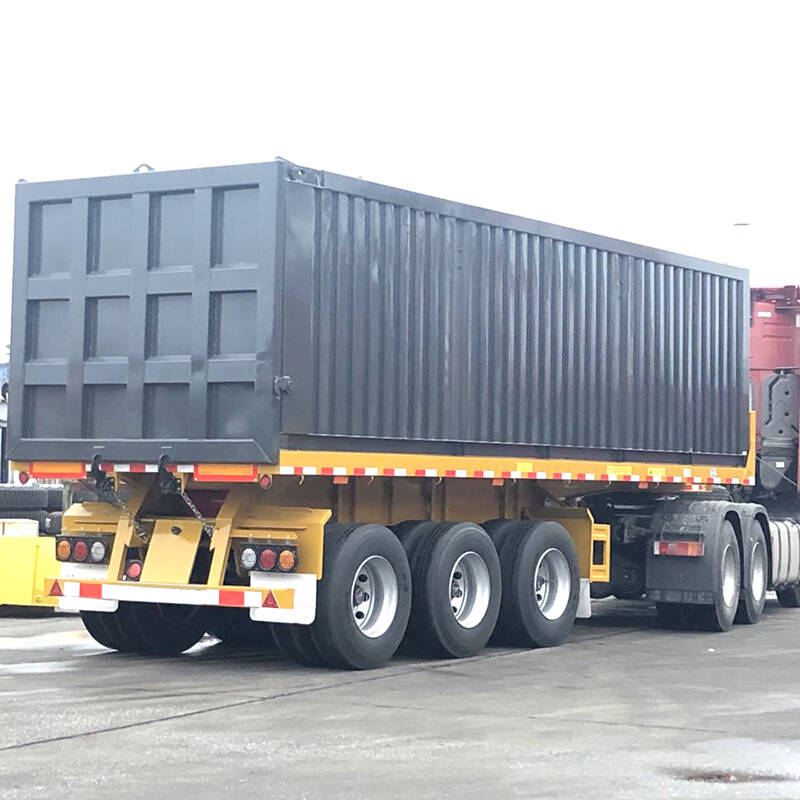

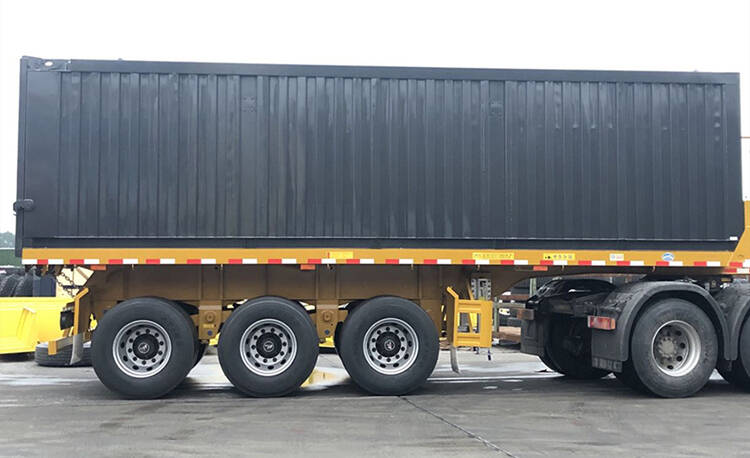

CIMC Tri Axle Flatbed Tipper Trailer
1. The leaf spring is widened and thickened, the shock absorption effect is good.
2. Flip Bracket: 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the trailer.
3. with 4 units vice beam and cross balance beam. The lattice structure of the side door makes the side door more solid.

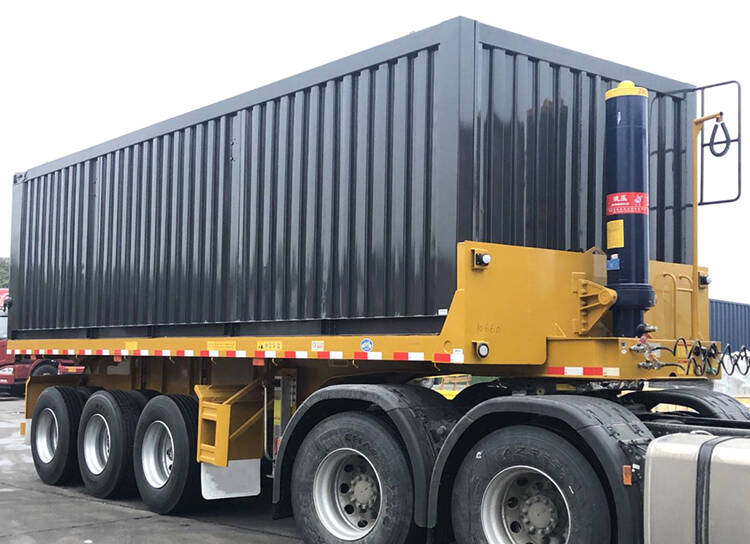

4. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.
5. Double-plate main beam for heavy-duty dump trailer, which have stronger carrying capacity, it is not easy to damage.
6. Strengthened Ribs, unique structure design to maximize the payload.
Overall dimension:6700mm * 2500mm *2900mm
Loading capacity: 60T
Axles:3 axles
Suspension:Heavy duty mechanical suspension
Tipping system: 196 hydraulic cylinder
Tire:12 units
King pin:90#
Landing gear:JOST
Brake system: WABCO
Electrical system: 24V, LED lights
