CIMC aim is to provide the highest-quality trailer,so we're constantly improving the details of our trailer. CIMC flatbed trailer can be used for more than 10 years.
The advantages of the Flatbed trailer are that it is convenient to load and unload, safe and reliable, flexible to use, and able to meet the transportation needs of goods of different sizes.

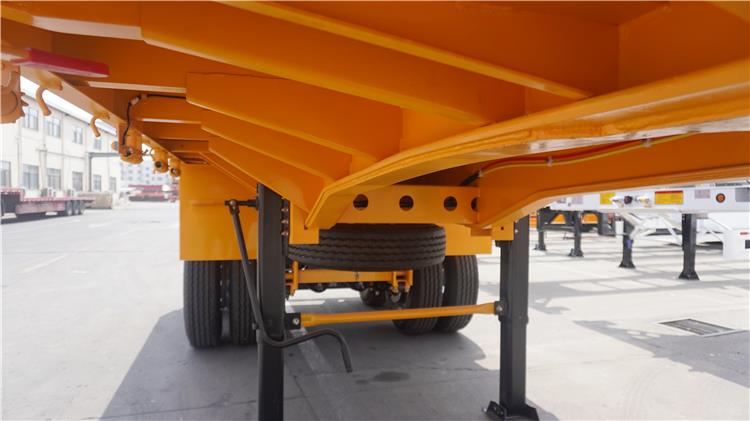

Flatbed trailer reinforces the main beam.The middle plate has been reinforced by double plate,which makes the main has small deformation even if loading heavy things.
The china cimc flatbed trailer bottom plate of the gooseneck part also be reinforced by double plate.
CIMC flatbed trailer uses high-density inclined support to support the trailer's beams,every beam has its own support.

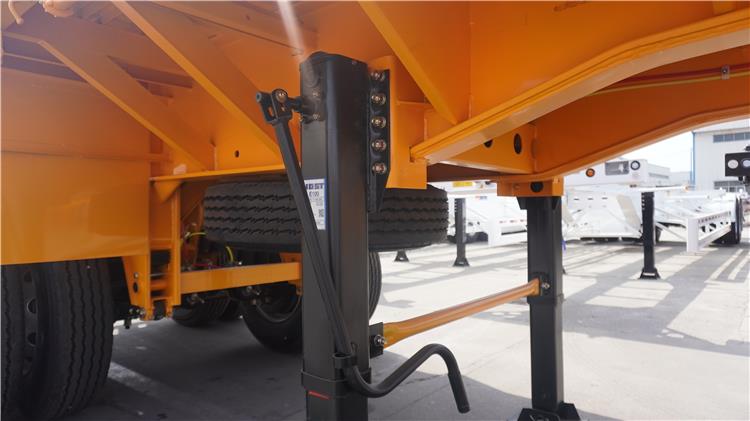

CIMC 20 ft flatbed trailer lading gear adopts triangle reinforcement,which can effectively prevent the landing gear left and right tilt of outrigger and prolong its service life.

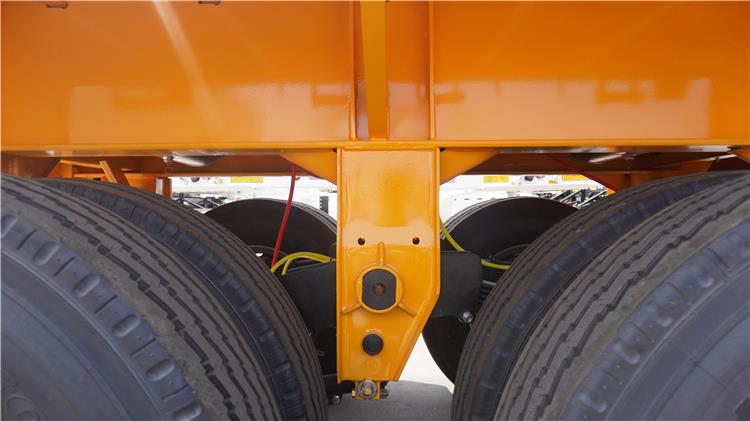

CIMC flatbed trailer suspension adopts triple reinforcement,the diameter of kin pin is 70 mm, which makes the suspension much stronger.

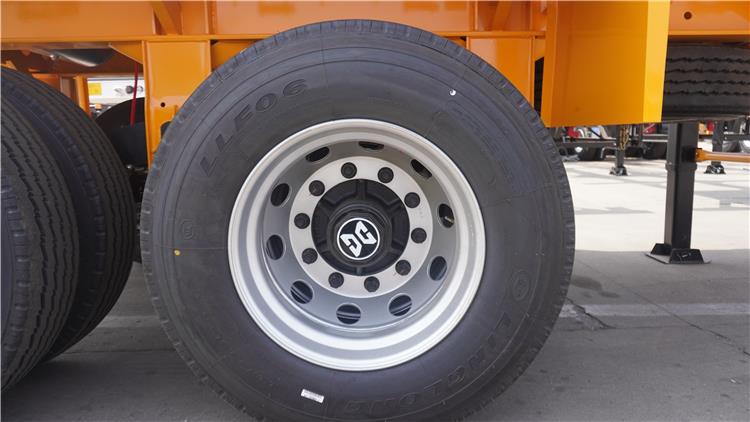

CIMC flatbed trailer tire: 12R22.5, 8units

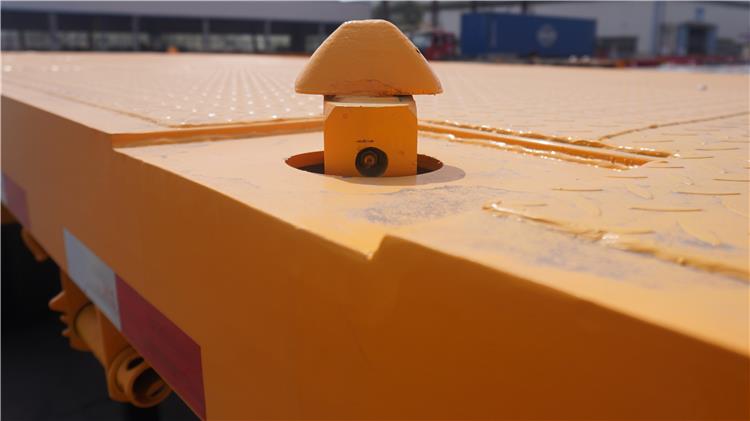

CIMC flatbed trailer container locks will not damage the side beam
Dimension(mm): 7500x2500x1500mm
Loading capacity(ton): ≤60T
Application: Transport 20ft container
Suspension: Mechanical suspension
Axles: 2 axles, 13T/16T, FUWA/ BPW/ TITAN Brand
Tire: 8 units, 12.00R22.5
Landing gear: JOST
Kingpin: 50(2inch)#or 90(3.5inch)# bolted type
