Material: main beam Q345B
Size: 12500*2500*1550mm
Suspension: Mechanical Suspension
King pin: 2"(50mm)or3.5"(90mm) JOST flatbed semi trailer
CIMC 40 Foot Flatbed Three Axle Container Trailer can transport up to 60 tons of commercial and industrial cargo on roads of any category.
Raw material resource of CIMC guarantees quality, excellent processing equipment and fixture ensure product quality accuracy. All parts use the products of foreign and domestic famous producers,are purchased, inspected and used strictly according to the requirements of quality system documents, and ensure good performance of 40 foot flatbed trailer for sale.
The front wall is useful to block the goods to drift when the 40 foot flatbed container semi trailer carries the prolong subjects.
When transporting three axle flatbed trailer, many customers use container transportation, which has low transportation costs and short transportation time. And some customers are bulk carriers or ro-ro ships.

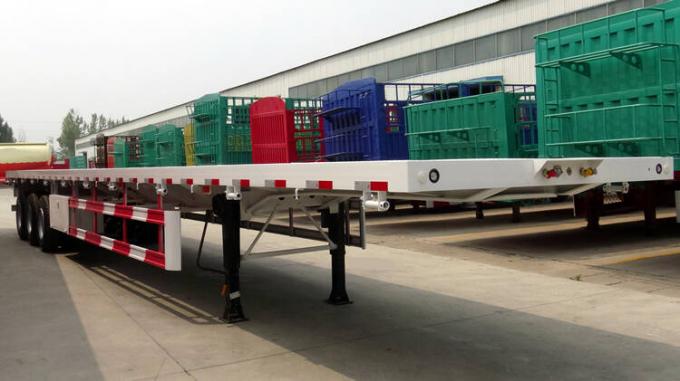

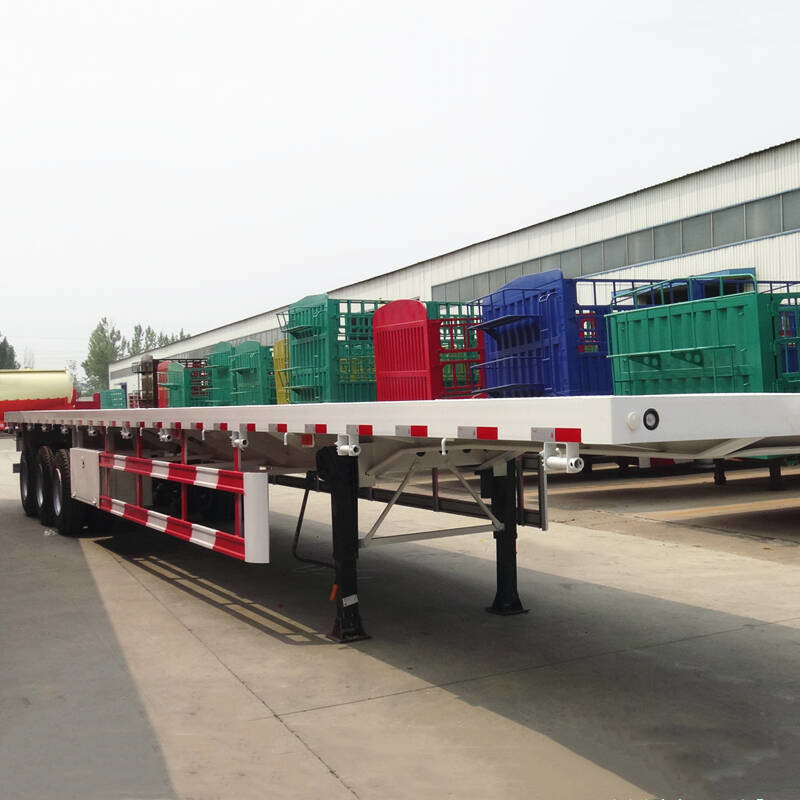

CIMC 3 axle 40 flatbed container trailer with front wall
CIMC 40 foot flatbed semi trailer for sale
Overall L*W*H | 12500*2500*1530mm |
Payload | 60 tons |
Container lock | 12 pcs |

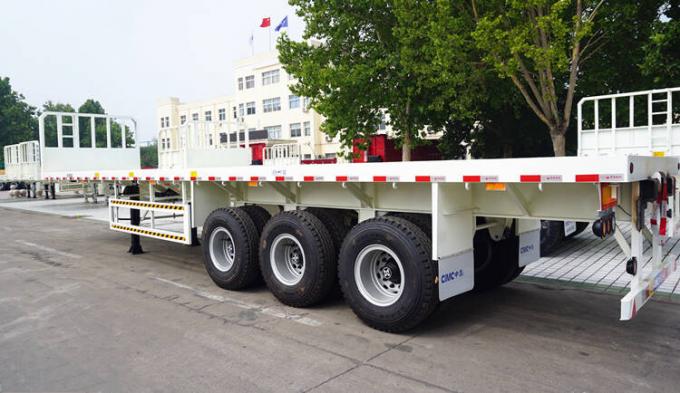

Axles | 3 axles, Fuwa/BPW /CIMC or other Chinese famous brand |
Tire | 12 units |
Brake system | WABCO brake system with dual brake chambers and emergency brake valve |
Suspension | Mechanical / airbag / bogie suspension |
King Pin | JOST brand 2.0 or 3.5 inch (bolted or welded) |

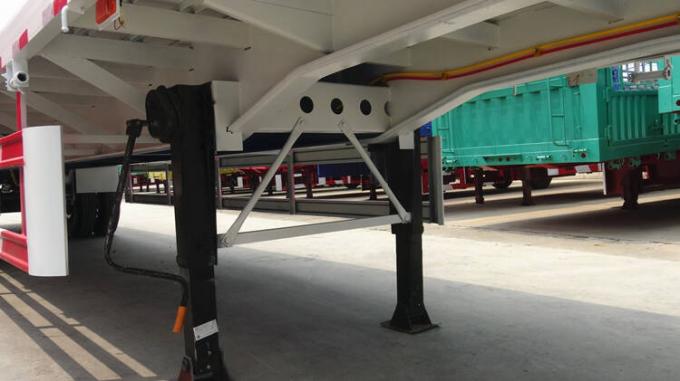

Landing Gear | JOST brand |
Accessories | Tool box , spare tire carrier |
1. This 40 foot trailer adopt premium steel material, advanced technology and strict production to our flatbed trailer.
2. CIMC trailer use the 13 ton axle but the 16 ton 220 mm width brake pads which can improve the brake performance 20 %.
3. CIMC trailer use polyurethane paint, it has a strong adhesion, long-term use of non-fading, effective protection of the body against rust, prevent acid and alkali corrosion, extend the life of the vehicle.
4. 40 foot flatbed trailer can be tailor made to suit individual needs.
