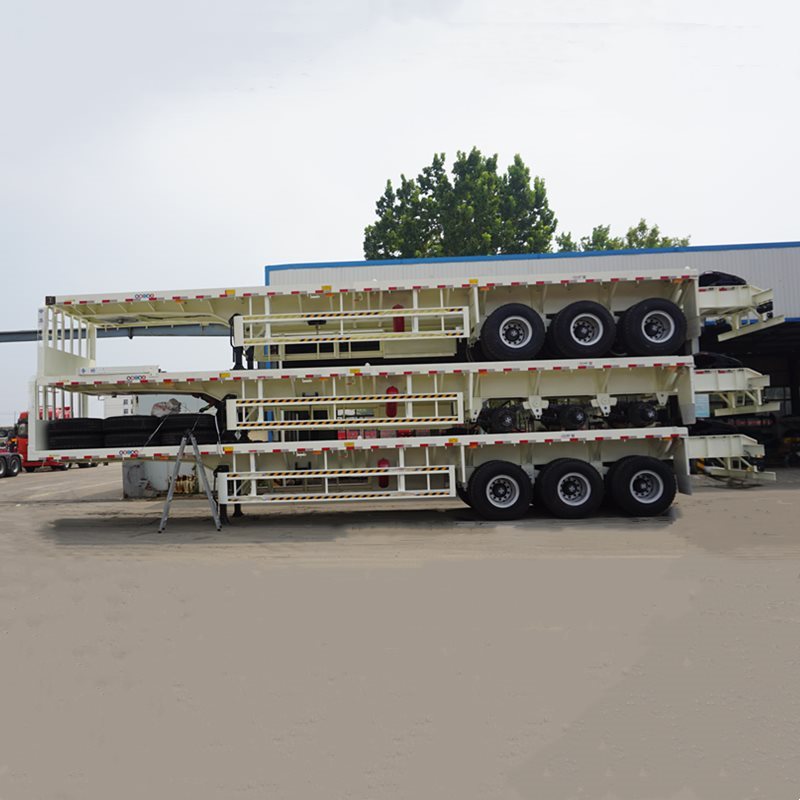

Brand: CIMC 3 Axle Flatbed Semi Trailer for Sale
Braking System: WABCO
Landing Gear: JOST
Loading Capacity: Customized
Axle: 3 Axles
Flatbed Semi Trailer, 40ft is the most popular model. According to the length, we can also offer the 45ft 48ft 52ft, 2axles/3axles/4axles, the capacity from 35 ton to 60 ton. For the types, we can also make the flatbed with side wall, side panel with fence, or with front board, or with columns to load the logs. CIMC flatbed trailer is designed for transporting 1x40', 1x 20' or 2x20'. SO cargo containers and loose cargo. The side wall fence trailer is used to load a wide range of products and materials, like sand, bags, poultry etc. Also the some bulk cargo, very widely used in the transportation industry.

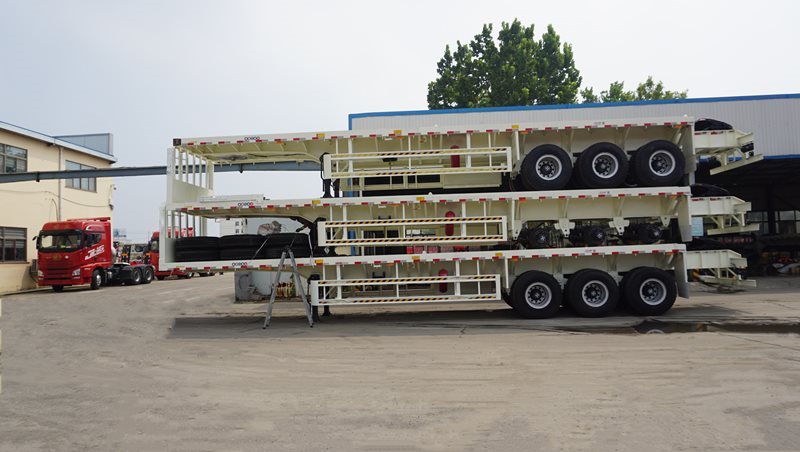

3 Axle Flatbed Semi Trailer
1. CIMC adopts high strength steel material to manufacture the flatbed trailer, it can make the flatbed trailer have a higher loading capacity and a longer service life
2. We use automatic arc-submerging welding method to weld the main beam, there isn’t interface between the steel plate，it can ensure the intergrated main beam, so the main beam is more stronger and more durable.
3. There are 9 cross beams, the distance between two tilted supports is less than 50 centimeters, it can help the main beam have a better loading capacity.
4. Polyurethane paint, the vehicle is more beautiful, has a strong adhesion, long-term use of non-fading, non-fading paint, effective protection of the body against rust, prevent acid and alkali corrosion, extend the life of the vehicle
Loading Capacity: 60 tons, customized
Axles: 3 axles ( Fuwa/BPW /CIMC or other Chinese famous brand )
Tire: 12.00R20 / 11.00R20 / 12R22.5 / 385/65R22.5, optional
Landing gear: JOST
Kingpin: 50(2inch)#or 90(3.5inch)# bolted type
Suspension: Mechanical / airbag / bogie suspension
Brake system: WABCO brake system with dual brake chambers and emergency brake valve
Accessories: Tool box , spare tire carriers
