CIMC 3 Axle Flatbed Container Trailer with Front Wall

CIMC 3 Axle Flatbed Container Trailer with Front Wall

10800 USD

Material: main beam Q345B

Size: 12500*2500*1550mm

Suspension: Mechanical Suspension

King pin: 2"(50mm)or3.5"(90mm) JOST flatbed semi trailer

SKU: CIMC 3 Axle Flatbed Container Trailer with Front Wall
GTIN: 6975766100315
MPN: ZJV9501074
Brand: CIMC

CIMC 3 Axle Flatbed Container Trailer with Front Wall Description:

CIMC 3 axle shipping container trailer with front wall is a specialized transport for all kinds of containers.

CIMC 3 axles flatbed container semi trailer for carrying 40ft container, 20ft container and bulk cargo.

Flatbed manufacturers CIMC brand container semi trailer with the feature of light tare weight, large loading capacity, durable performance. It's widely exported to South-east Asia, Middle-east, and Africa market.

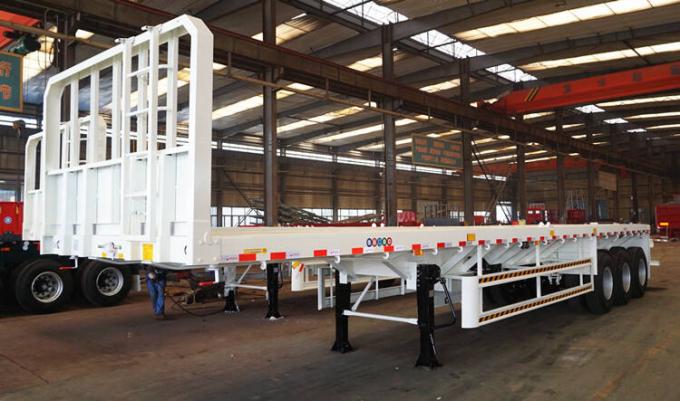

CIMC 3 Axle Flatbed Container Trailer with Front Wall

CIMC 3 axle flatbed container trailer for sale

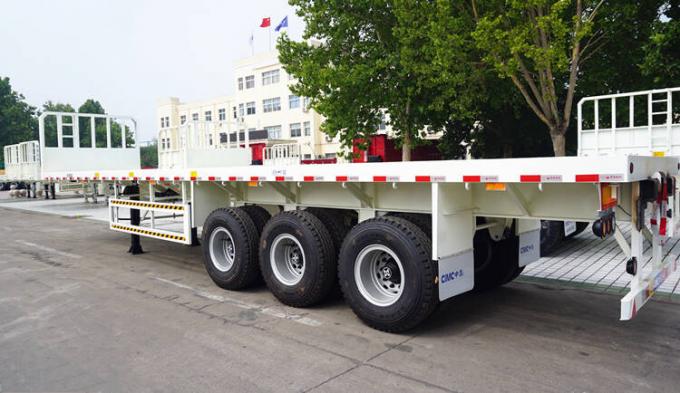

CIMC 3 Axle Flatbed Container Trailer with Front Wall

CIMC shipping container trailer with front wall

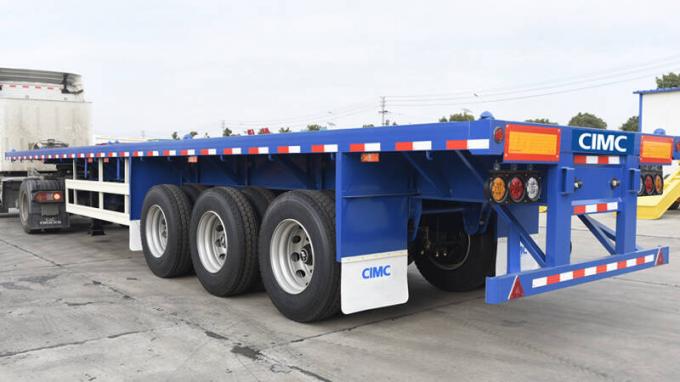

CIMC 3 Axle Flatbed Container Trailer with Front Wall

3 axle 40ft container flatbed manufacturers - CIMC

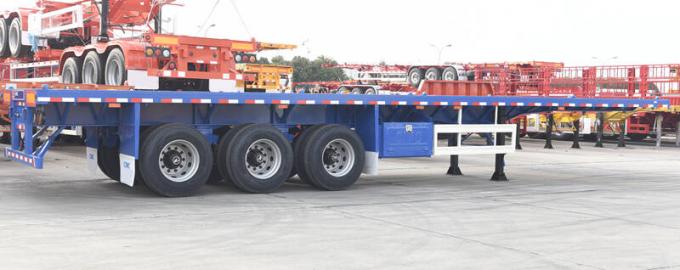

CIMC 3 Axle Flatbed Container Trailer with Front Wall



Specification of flatbed container trailer:

Dimension 12500×2500×1530mm
Payload 60 tons
Container lock 12 pcs
Axles 3 axles, Fuwa/BPW /CIMC or other Chinese famous brand
Tire 12 units
Brake system WABCO brake system with dual brake chambers and emergency brake valve
Suspension Mechanical / airbag / bogie suspension
King Pin JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear JOST brand
Accessories Tool box , spare tire carrier



Advantages:

1. The flatbed container trailer front wall will be a safe barrier between the truck cabin and the carrying goods.

2. The front wall is useful to block the goods to drift when the container semi trailer carries the prolong subjects.

3. Also the trailers floor is checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff.

4. All spare parts used by CIMC are world famous brands to ensure the service life of flatbed trailers.



Loading containers:

Before the high bed semi trailer are loaded into the container, the used turn lock head should be completely overlapped with the lock seat and fixed. Then the container is correctly placed on the semi trailer, and then the turn lock handle is turned lock the container vertically with the lock head and the lock seat.

Before unloading the container, the turn lock should be turned to the position where the lock head overlaps with the lock seat and fixed, and the container can be removed only after it is confirmed that the container is not locked.
