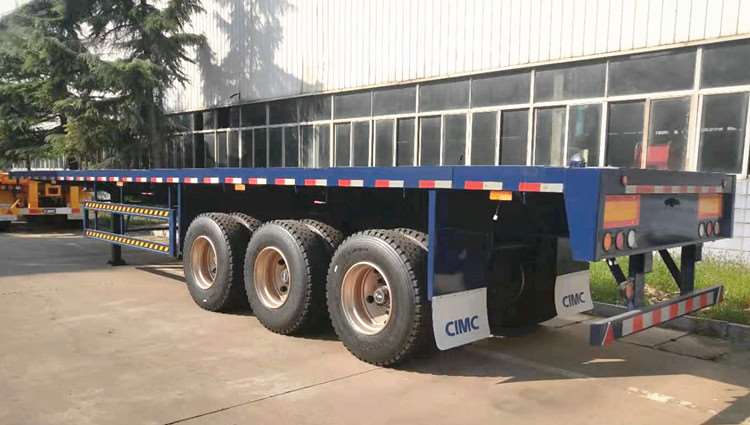

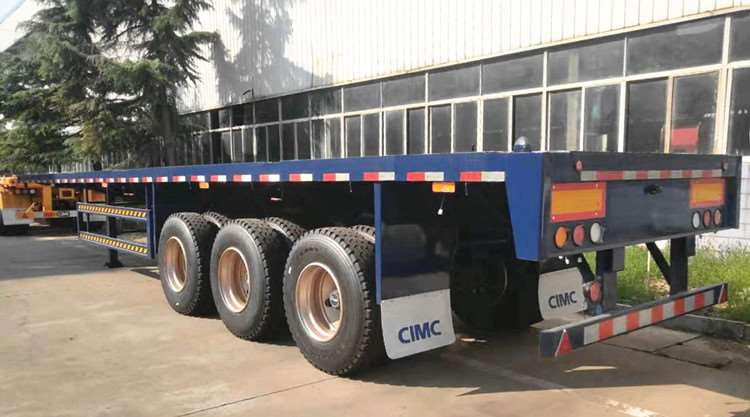

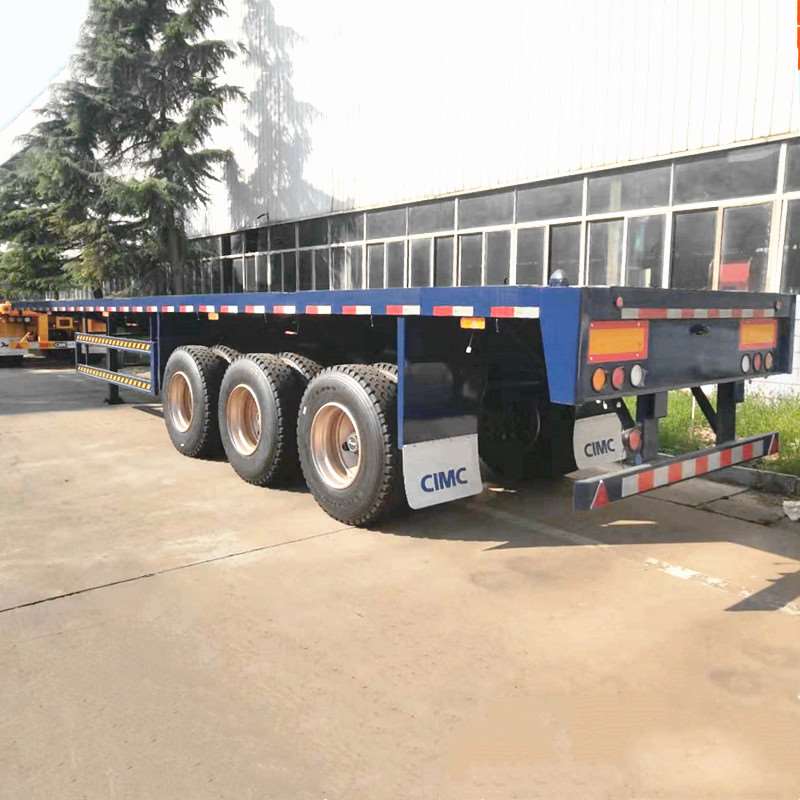

China CIMC Tri Axle Trailer

Product description:

China CIMC tri axle trailer for sale is another commonly used type of container and equipment in the transportation industry.

CIMC flatbed trailer  feature durability in off-road conditions, they are cross-functional for the carriage of commercial and industrial cargo up to 60 tons on roads of any category.

CIMC 3 axles flatbed trailer for carrying 40ft container, 20ft container and bulk cargo. the 40ft semi flatbed trailer can carry loads 40 ton machines and cargos. The 3 axles 40ft flatbed trailer also called tri-axle semi flatbed trailer.

CIMC tri axle flatbed trailers for sale

China CIMC tri axle trailer

Specification-tri axle flatbed trailer

Overall L*W*H: 12,500×2,500×1,530 mm

Payload: 60 tons

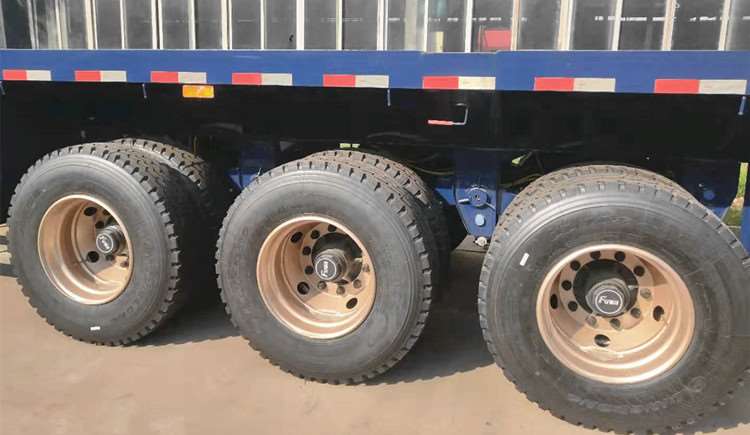

Axles: 13 tons / 14 tons / 15 tons /16tons / 20 tons ( Fuwa/BPW /CIMC or other Chinese famous brand )

Tire: 12.00R20 / 11.00R20 / 12R22.5 / 385/65R22.5, optional

Landing gear: JOST

Kingpin: 50(2inch)#or 90(3.5inch)# bolted type

Suspension Mechanical: / airbag / bogie suspension

Brake system: WABCO brake system with dual brake chambers and emergency brake valve

Container lock: 12 pcs

Accessories: Tool box , spare tire carrier

Advantages:

1>We adopt premium steel material, advanced technology and strict production to our flatbed trailer.

2>The floor is covered with corrugated sheet metal

3>Good brake effects. Axles are equipped with WABCO emergency brake valve also dual-brake chambers also widen brake pads.

4>The flatbed container semi trailer painted by advanced painting system, the painting effect can meet Swedish Sa2.5 class marine anti-corrosion standards.
