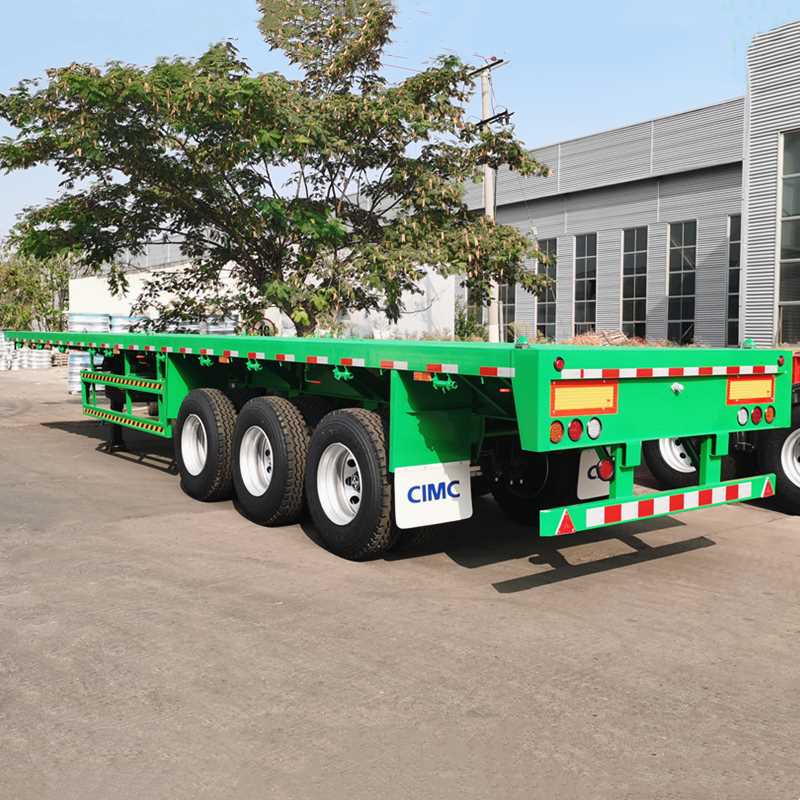

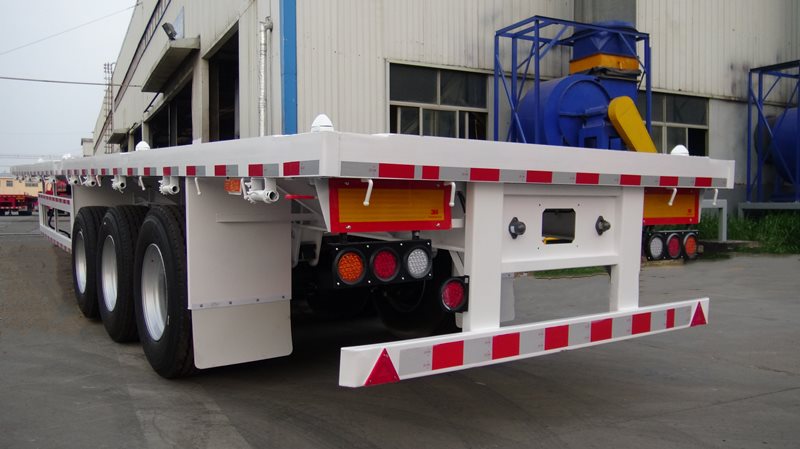

CIMC 40 Foot Flatbed Trailer

CIMC 40 Foot Flatbed Trailer Description:

The tri-axle low flat bed trailer 60 tons with a low loading height and high payload . It is widely used to carry construction machinery, tracked vehicles, wheel loaders, vessels, boats, combine harvesters, machine parts or prefabricated sections. CIMC production the semi low bed trailer 60 tons can carry capacity between 40 tons to 80 tons, and we can provide our customers with different tonnage lowbed trailer to meet customers' requirements.

Low bed trailers are the economic and flexible solution for numerous different tasks in heavy duty or special transportation.

CIMC 40 Foot Flatbed Trailer

Main Specification

Brand: CIMC 40 Foot Flatbed Trailer

Overall dimension: 12500mm X 2500mm X1530mm

Loading capacity: <80t, customized

Axle: 3 axles

Suspension: Heavy duty mechanical spring suspension

Tyre: 12 units

Landing gear: JOST

Brake system: WABCO

King pin: 90#

Electical system: 24V, LED lights

Characteristics of the flatbed truck trailer:

1.Adopting high strength steel material to manufacture the flatbed traile

2.Using automatic arc-submerging welding method to weld the main beam

3.Highly robust structure steel with tensile and high load capacity

4.Heavy duty type mechanical spring suspsension for large loads

5.Length and width of lowbed trailer are customized to meet your requirements

6.Air suspension and bogie suspension is optional
