40 foot/feet Flatbed Tractor Trailer

40 foot/feet Flatbed Tractor Trailer Price: 13500USD

CIMC china trailers 40 feet flatbed trailer adopts use automatic submerged arc welding process to weld the main beam. There is no interface between the upper, middle and lower plates of the beam, so it can ensure the integrity of the main beam and make the beam more solid and durable.

40 foot/feet Flatbed Tractor Top Semi Trailer for Sale | CIMC China Trailers - CIMC china trailers flatbed tractor trailer optional Jost landing gear which is a world recognized famous brand accessory with a better bearing capacity and long service life

40 foot/feet Flatbed Tractor Top Semi Trailer for Sale | CIMC China Trailers - CIMC china trailers flat top semi trailer adopts the best parts for our trailer, such as the axle with 16 tons brake system, 3mm base plate, etc. with longer service life.

CIMC china trailers 40 foot flatbed trailer for sale thickness of the side beam we made is 160mm, 100mm channel for through beam, and all of the through beam are supported by the Inclined support frame, and the distance of these frame no more than 500mm, which can ensure the trailer not easy to deform.

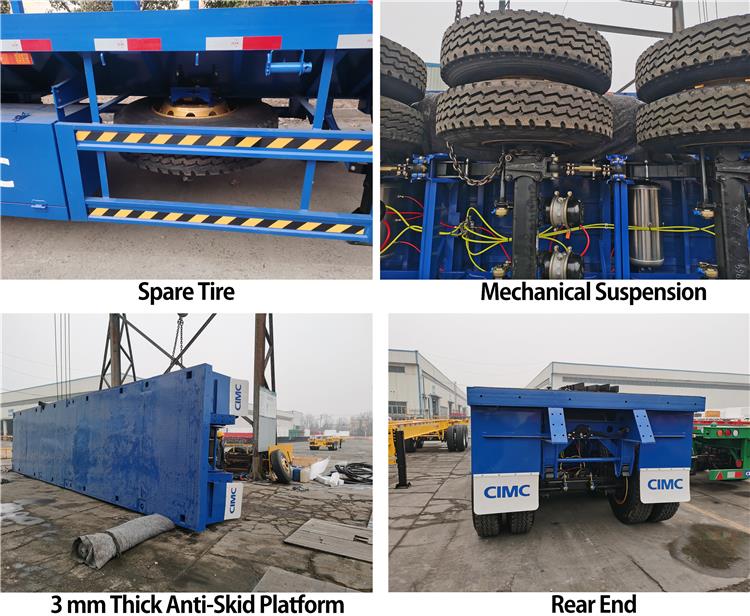

40 foot/feet Flatbed Tractor Top Semi Trailer for Sale | CIMC China Trailers - CIMC china trailers 40 feet flatbed trailer floor plate is the 3 mm and it’s diamond plate, The floor plate is strong and durable, and is not easy to deform

Specification of 40 foot Flatbed Trailer for Sale

Overall L*W*H: 12500*2500*1530mm

Payload: <80 tons, customized

Application: Transport 20/40ft Container

Axles: 16tons Fuwa/BPW/CIMC brands

Tire: 12.00R20/11.00R20/12R22.5/385/65R22.5, optional

Landing gear: JOST

Kingpin: 50(2inch)#or 90(3.5inch)# bolted type

Suspension: Mechanical Suspension

Brake system: WABCO brake system with dual brake chambers and emergency brake valve
