Different Parameters, Different Price. Price Reference Only.
CIMC adopts high strength steel material to manufacture the tri Axle 50t side wall trailer, it can make the flatbed trailer have a higher loading capacity and a longer service life.
CIMC uses automatic arc-submerging welding method to make the tri Axle 50t side wall trailer and weld the main beam, there isn’t interface between the steel plate，it can ensure the intergrated main beam, so the main beam is more stronger and more durable.
To make sure the service life of tri Axle 50t side wall trailers, all the spare parts we adopt are World Famous brand. We use famous German WABCO braking valve will definitely shorten the Braking Distance, to make the safety of the trailers and the drivers.

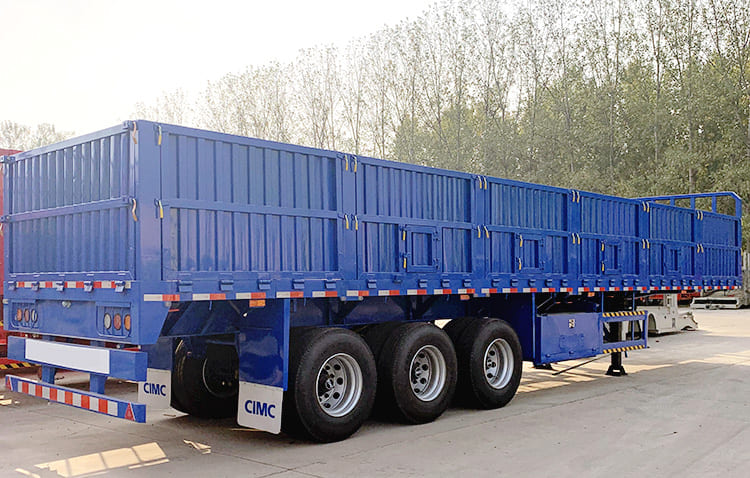

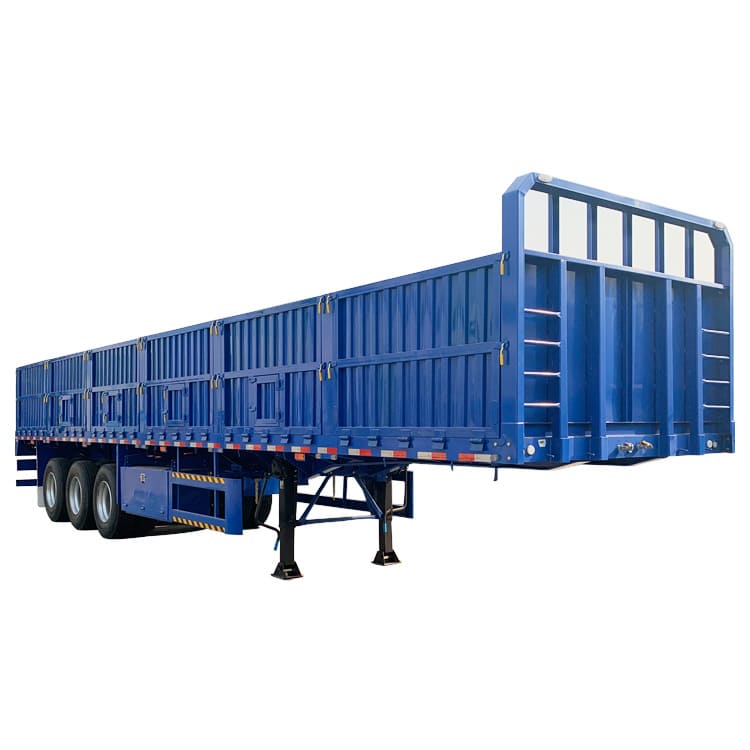

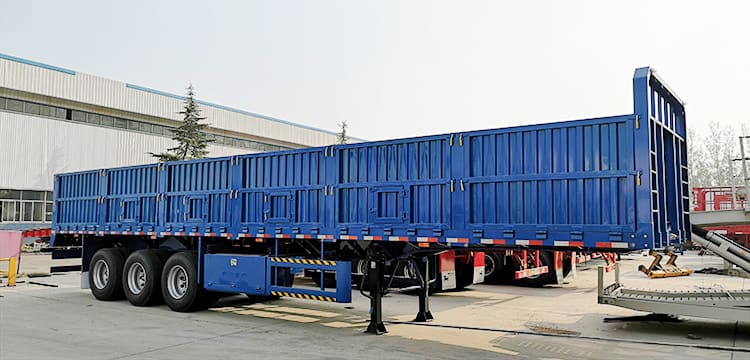

Tri Axle 50T Side Wall Trailers for Sale in Zimbabwe Harare
Tri Axle 50T Side Wall Trailers for Sale in Zimbabwe Harare
Tri Axle 50T Side Wall Trailers for Sale in Zimbabwe Harare
Tare Weight: About 7.6T
Dimension(mm): 12500x2500x3350mm
Loading capacity(ton): 50T
Axles: 3 axles, 13T/16T ,FUWA/ BPW
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Trailer Sides: 600-2000mm, or box type sides
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
