Different Parameters, Different Price. Price Reference Only.
CIMC use Q345 low-carbon alloy steel to make the 3 axles 40 40000l fuel tanker trailer with a thickness of 5mm and a very strong tank body.
CIMC 3 axles 40000l fuel tanker trailer is using the most advanced welding technology, through single-side welding double-sided forming welding, welding more solid and smooth, no welding without defects, absolutely will not appear the phenomenon of open welding, tank can be used for more than 10 years.
CIMC 3 axles 40000l fuel tanker trailer adopts polyurethane paint with high adhesion, high chromogenic, beautiful color, and the cost is twice that of ordinary paint. The paint will not come off after five years.

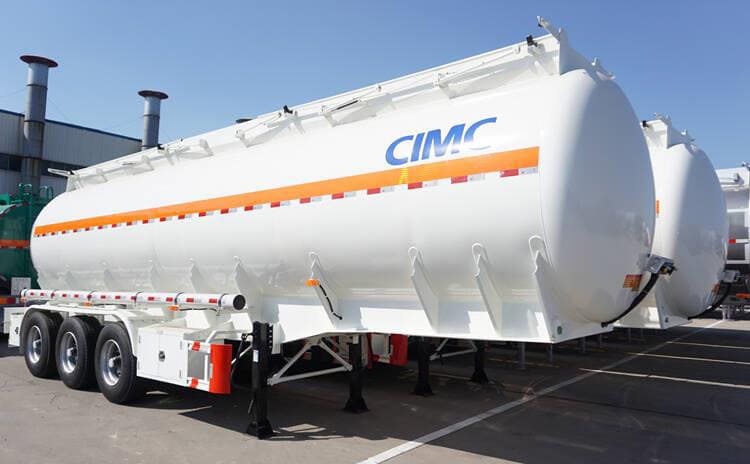

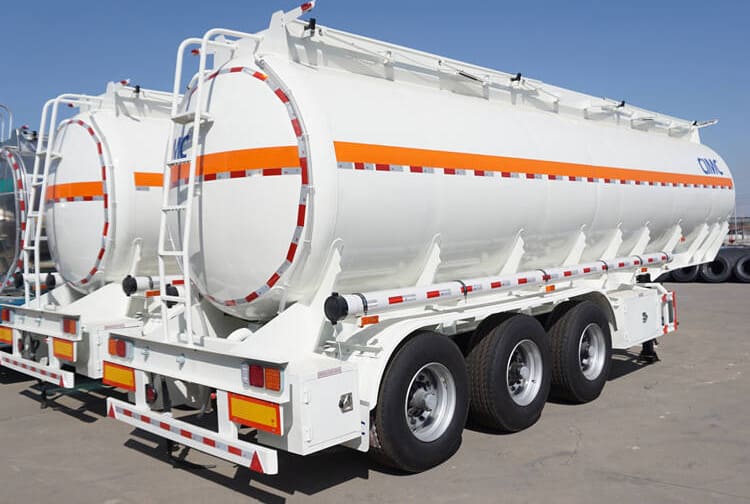

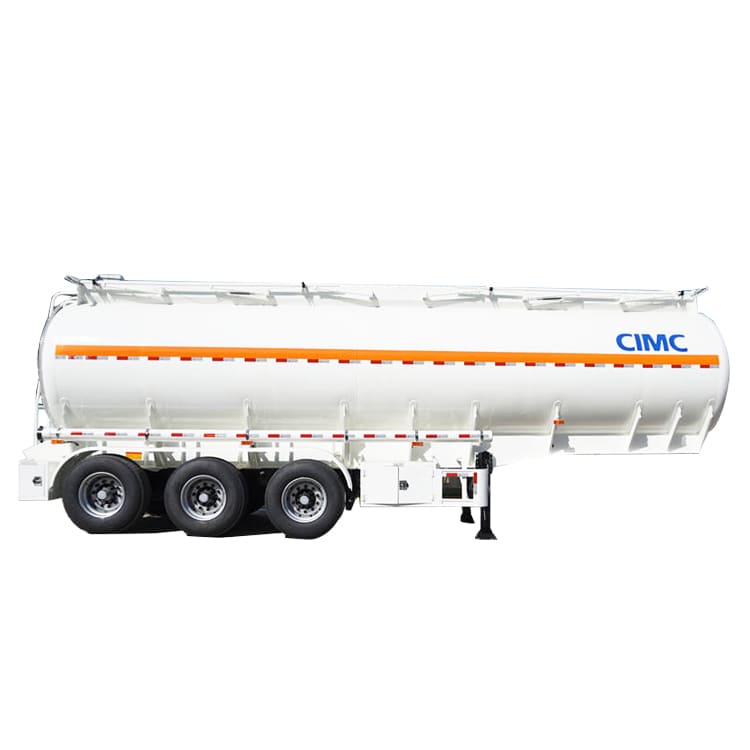

3 Axles 40000L Fuel Tanker Trailers for Sale in Zimbabwe Bulawayo
3 Axles 40000L Fuel Tanker Trailers for Sale in Zimbabwe Bulawayo
3 Axles 40000L Fuel Tanker Trailers for Sale in Zimbabwe Bulawayo
Dimension: 11500mm * 2500mm *3700mm (the exact size depends on the final design.)
Tare Weight (semi trailer): About 8000-12800kg
Total volume(m³): 40 Cubic
Tank Body Material: 5mm or 6mm/Q235 carbon steel
End plate: 5mm or 6mm/Q235 carbon steel
Manhole Cover: Carton steel
Bottom Valve: Aluminum API Pneumatic Bottom Valve
Compressor: BOHAI 10m³/12m³ or other brands
Discharging Valve: Diameter is 3 or 4 inch
Compartments: Optional
Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Cat Walk: With (common model or special design)
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material
Axle: 3 axles,12T/13T/16T,BPW/ FUWA
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin
Suspension: Mechanical suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank
Rim: 9.00-22.5/8.00-20/8.5-20 Chinese brand
Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
ABS: Optional
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box
Shipping Terms: By bulk cargo, RORO or 40HQ containers
1. With safety devices: the manhole is an explosion-proof large cover. The bottom outlet of the tank is equipped with an emergency shut-off valve.

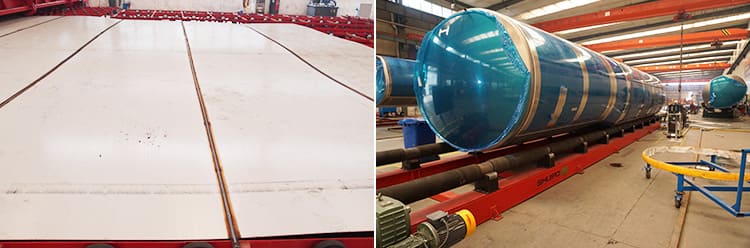

2. The tank body is automatically welded by an advanced large-scale special welding machine.
3. Water filled test equipment Water tank: To ensure the high sealed of tank body and avoid the leaks oil.
4. The waved board reduces the impact of the liquid on the tanker.
5. Advanced paint system and polyurethane paint. Appearance is beautiful, use time is above 5 years.
6. We adopt famous brand parts for our tank trailer, it saves costs & ensures long-time service.
