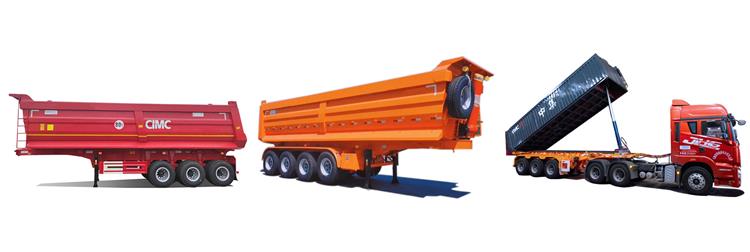

Semi tipper trailer is a large trailer, Semi tipper trailer will help you to carry and unload bulk cargo in a very simple and efficient way. In the end, your operation will be very affordable. Especially when dealing with large jobs. With Semi tipper trailers, they are suitable for construction, agriculture and recycling industries and many others. They come in different shapes and types. Therefore, you will have a variety of options based on your specific needs and requirements.
The structure of the engine, chassis and cab is the same as that of general trucks. The tipping box can be tilted backward or sideways. Semi tipper trailer are more common. Push the piston rod to tilt the box. A few two-way tips. The high-pressure oil enters the lifting hydraulic cylinder through the distribution valve and hydraulic hose. And there is a safety protection plate at the front end of the cabin.
The hydraulic tilting system is composed of oil tank, hydraulic pump, distribution valve, lifting hydraulic cylinder, controlling valve and hydraulic hoses. The engine drives the hydraulic pump through the transmission and the power take-off device. By controlling the movement of the piston rod through the controlling system, the tipping box can be stopped at any position. The tipping box uses its own gravity and hydraulic to return back.

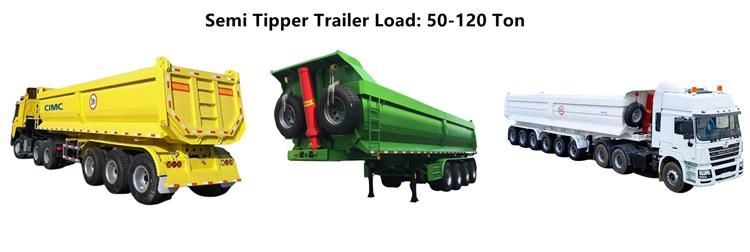

Semi tipper trailer can load 50-120ton.
The main technical parameter of the semi tipper trailer is the payload, and showing the loading volume. The new trailer or the overhauled trailer must be put into trial operation, ensuring that the lifting process is stable.
The lubricant oil should be correctly selected according to the regulations and pay attention to the lubrication cycle, and maintain the lifting mechanism strictly on schedule. Overload is strictly prohibited. Semi tipper trailer can save the unloading time and labor cost.

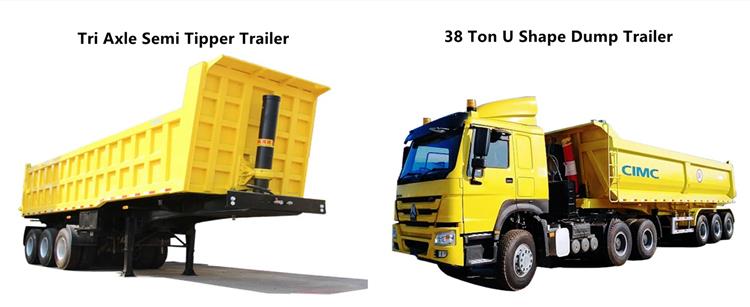

Semi tipper trailer can be designed as U-shaped or square bucket according to your requirements, U-shaped tipper trailer will dump sand and gravel faster than square, but square tipper trailer will be stronger than U-shaped.
Semi tipper trailer is also known as a rear tipper trailer works by offloading cargo towards the back area. They are commonly used to carry construction materials such as sand and stones as well as other materials such as coal.
Ideally, you can use it for loading industrial raw materials or any other solid material used in construction. The rear tipper design is meant to facilitate the offloading process.
Once the back of your trailer is locked, you can load your cargo in that position. On arriving at your destination, the front side of the tipper trailer gets raised causing your cargo to drop off from the back.
The bucket of your semi tipper trailer has been built with a thicker steel plate to sustain the weight of the cargo that is usually of hard materials. This way, the tough steel plate prevents the cargo from damaging your trailer.
The semi tipper trailer is suitable for cargo with a large rest angle. It is important to note that the Rear tipper cannot be more than 12m long. Any truck longer than that may be dangerous.
U-type semi tipper trailer is Streamline and therefore, the unloading speed is faster and more thorough compared to other options you will find in the industry market.
Most importantly, this is a lightweight trailer that offers you a large load capacity. Stability is guaranteed with the trailer’s low center of gravity.
Essentially, the center of gravity decreases by 120mm. As a result, it helps in making your operations safe. this is a piece of the whole plate that does not have splicing. This offers you a good wear-resistant product
1. Double-plate main beam for heavy-duty semi tipper trailer, for heavy-duty semi tipper trailer, the main beam is designed with double plates, which have stronger carrying capacity, it is not easy to damage.
2. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.
Steel material: HG60 high-strength steel, high hardness of steel, can effectively prevent collision and avoid deformation of the cargo box.
3. Vice beam: with 4 units vice beam, which can make the bottom of the box better bearing capacity, and will not easily deform. The lattice structure of the side door makes the side door more solid.
4. Cross balance beam: There is a balance beam at the front and rear of the main beam, which can better support the beam and is not easy to deform.
5. Flip Bracket: 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the trailer.
6. Leaf spring and suspension: The leaf spring is widened and thickened, the shock absorption effect is good, the suspension is widened, and the center pin is wider, which makes the semi tipper trailer more stable during driving.
7. Self-weight: We can emphasize the weight of our semi tipper trailer to our customers, weigh more weight and have a better carrying capacity.

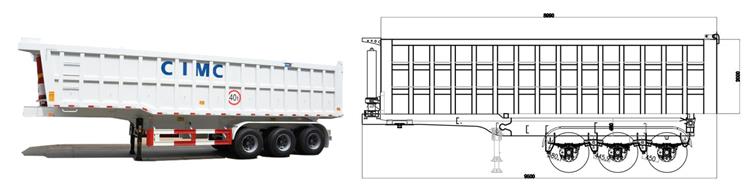

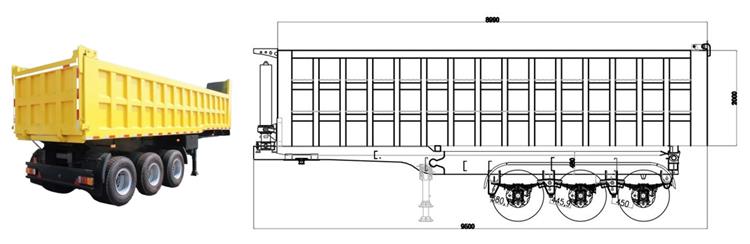

Semi tipper trailer can load 50-120ton. CIMC can customize different semi tipper trailers according to customer needs. 3 Axle 35cubic semi tipper trailer, it can transport 60 tons of stones and mining materials. Our engineers designed it with 8mm on the floor and 6mm on the side for heavy-duty transportation in the harsh road conditions in Africa.
Ghana transport market has 6 axle 45cbm semi tipper trailer, it is very popular semi trailer. We have designed a total of 6 axle dump trailers, as Ghana has limited weight on the road, and one axle can transport 12 tons of manganese, so multiple axles would be a good choice for transport companies.
Semi tipper trailer axles are heavy-duty axles specially designed for African road conditions, the front three axles are 14 tons, super single tire and airbag suspension, can be raised and lowered, and the rear three axles are 16 tons, double tires, leaf spring suspension. 6 axle 45cbm semi tipper trailer can transport 100 tons heavy load, we designed gooseneck chassis to lower trailer height, safer tipper trailer.
The oil cylinder is the top priority of the semi tipper trailer. We use the HYVA brand 214 hydraulic oil cylinder imported from the Netherlands as the lifting bucket system
Semi side tipper trailer adopts high-quality steel plate, which can realize coal transportation of over 100 tons. Semi side tipper trailer can transport a large amount of sand and coal at one time, reducing transportation costs. For transporting bulk cargo such as sand, wheat, corn, coal, rock, granite and other building materials, with payloads up to 120 tons
The semi side tipper trailer can go left and right. In order to improve the carrying capacity of the Semi side tipper trailer, engineers design and workers weld the small details dedicated to our side semi tipper trailer to meet the transportation needs of the buyers of the roll semi-trailer. It is mainly made of thicker steel plates and one unwelded two thin steel plates. Semi side tipper trailers can primarily serve 100 ton payloads for many years without bending in this way.
Semi tipper trailer refers to a car that mainly transports goods and has a dump truck, also known as a dump truck. The feature of the Semi tipper trailer is that its compartment can be tilted at a certain angle, so that the cargo in the compartment can be unloaded. The tilting of the carriage is accomplished by the tipping mechanism with the power of the dump truck engine.

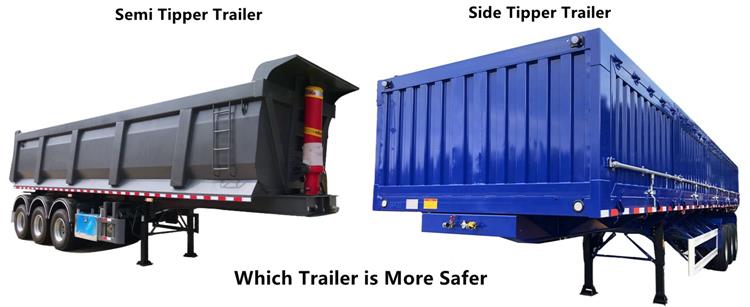

The side tipper trailer has higher requirements on the site than the rear-turning semi-trailer. The side tipper trailer requires a large, wide and flat site. The rear-turning semi-trailer requires no obstructions above the site, and the site is also required to be flat. If the two types of self-unloading semi-trailers are not well controlled, rollover accidents are likely to occur.
But the Side tipper trailer is equipped with a shift cylinder in this regard, which reduces the danger, but does not completely eliminate it. The important thing is the correct and standardized operation of the user.
Whether it is for the Semi tipper trailer or the Side tipper trailer, safe driving is very important. In order to prevent problems before they occur, the dump semi-trailer should be checked and maintained regularly. Problems with the dump semi-trailer are often caused by not paying attention to details during maintenance. As a result, paying attention to details is not only a good habit, but also allows the driver of the dump semi-trailer to go on the road safely.
1. It is necessary to identify the ex-factory time of the used semi tipper trailer.
Like other second-hand cars, the used semi tipper trailer is closely related to the technical condition of the vehicle, so be sure to carefully verify the factory time when choosing.
2. The mileage of the used semi tipper trailer.
The mileage and driving time of the used semi tipper trailer seriously affect the life of the semi tipper trailer. Generally, the performance of the semi-trailer will decrease significantly after the semi-trailer is in the form of 150,000-200,000 kilometers, and the maintenance cycle and cost will increase significantly.
Therefore, it is necessary to confirm the mileage of the used semi tipper trailer, which can generally be read through the odometer. In the process of determining the mileage, the frequency and time of use of the car owner and the degree of wear of the tires can be used as a reference.
3. Overall inspection of used semi tipper trailer.
The first thing to check is whether the various ancillary facilities of the used semi tipper trailer are working properly. Such as mirrors, turn signals and air conditioning equipment, these are basic, but the most important are the following:
1) The damage of the car body: carefully observe whether the seams are bent and whether the size is different. If this happens, it proves that the car has had an accident and has undergone major repairs;
2) The degree of rust of the car body: if the seam of the semi tipper trailer is severely corroded, it means that the car is old;
3) Positioning of the front wheel: jack up the front wheel with a jack, and shake the front wheel with your hand to see if it shakes left and right, up and down, if there is a large gap, it means that the bearing and other parts of the car are seriously worn;
4) Inspection of shock absorber and suspension system: Press down the corner of the front of the car with force. After loosening, the semi tipper trailer will automatically bounce back and jump freely for 2-3 times. If there is no such situation, it means the shock absorber or suspension spring of the car Bad working condition.
1. Clean the head of the semi tipper trailer with wax
Although the car wash lotion is very common, we pay more attention to the care of the exterior wall paint of the semi tipper trailer. Due to the increased amount and type of car wax during the washing process, the car will have a brighter luster. Washable surfactants are a common ingredient in cleansers that do not harm the body.
2. It is best to avoid scratching the semi tipper trailer.
The scratch-free cleaning liquid contains makeup remover ingredients, and is also rich in moisture, especially the ingredients that eliminate static electricity needs. It needs to be pointed out that it uses scientific and technological achievements in other fields.
The concept is The sediment is suspended. Due to the use of the sludge suspension agent, the sediment needs to be cleaned with the help of external natural conditions, and the semi tipper trailer can be cleaned without scratches. In practical situations, this is the best approach.
3. Clean with dish soap and dish soap
The semi tipper trailer is often washed by rainwater and is easily soiled, and the cleaning of the trailer is especially important. The best cleaning method for semi-trailer cleaning is to use a non-scratch car wash. Generally, we use washing powder and detergent wax brush. The cleaning ingredient of washing powder detergent is sulfonic acid. The paint surface has a long-lasting effect, and it is easy to paint white and lose its original luster. . General detergent is also a basic product, detergent is neutral, but long-term use will hurt hands.
