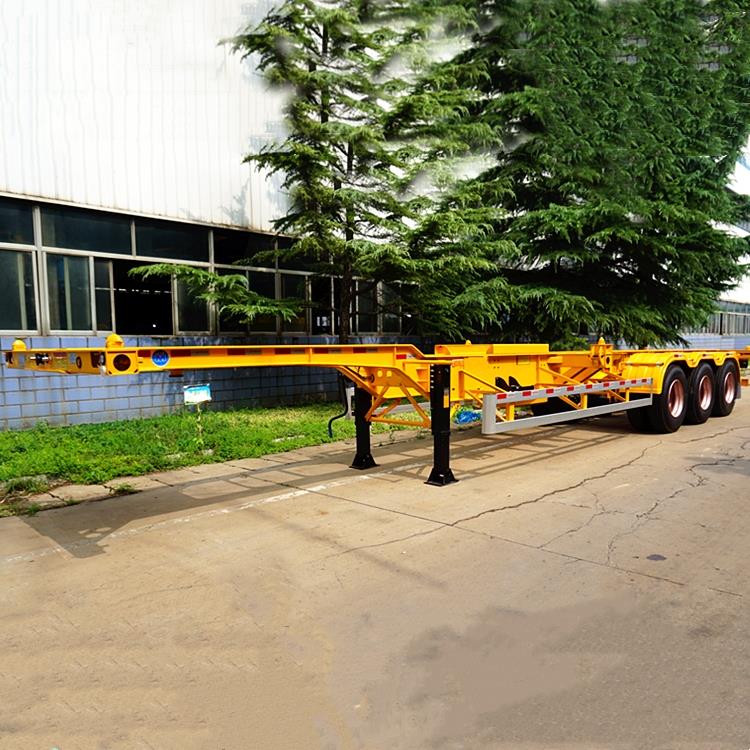

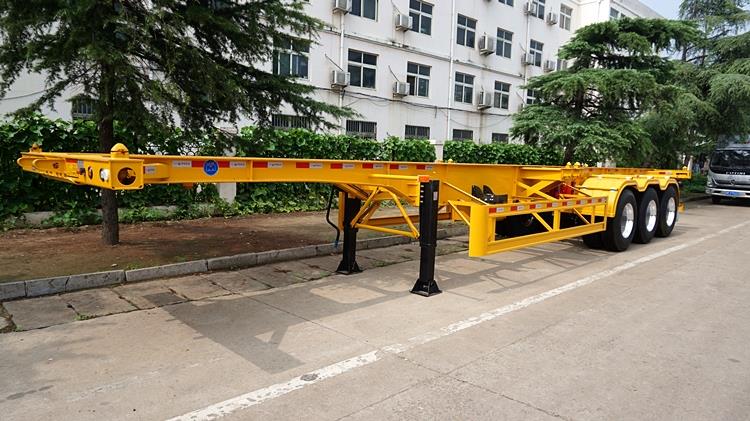

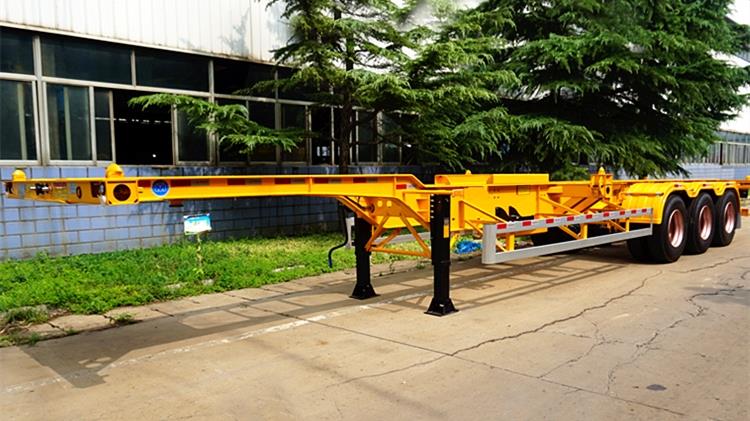

Type: CIMC 40ft Skeleton Trailer for sale
Loading capacity: 30-60 Ton
Application: to carry 20ft 40ft container
Trailer type: container chassis
Material: high strength carbon steel material
Container chassis is a specially designed trailer or wheeled carrier to transport containers from trucks between terminals, warehouses, and ports. Design-wise, this equipment is a steel frame with tires and axle systems, suspension, brakes, and lighting mechanisms. New-aged chassis also come with other features like ABS, weight sensors, LED lights, GPS tracking systems, etc. Chassis are key links for container movement and transportation.
Overall L*W*H: 12360*2500*1550mm
Load weight:40 tons ~70 tons
Axles: 3x13 tons / 14 tons / 15 tons /16tons / 20 tons
Tire:12R22.5
Landing gear: JOST
Kingpin: 50(2inch)#or 90(3.5inch)# bolted type
Suspension: Airbag / Mechanical / bogie suspenion
Brake system: Wabco
Electric system: 24V / 12V + LED lights
Accessory: spare tire carrie + tool box
Remark: we can supply different specification for different road condition
