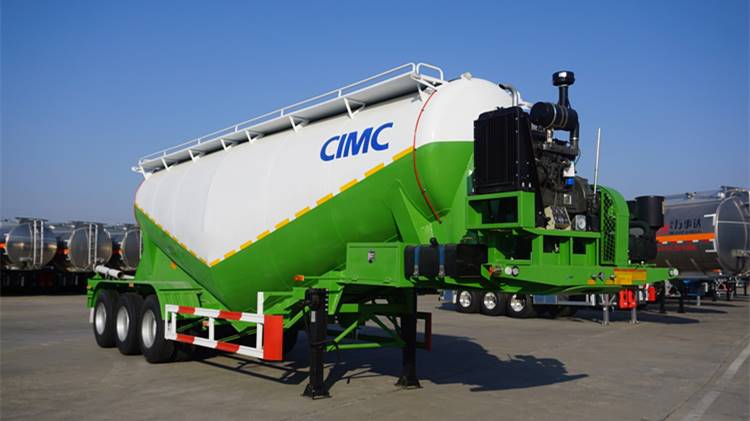

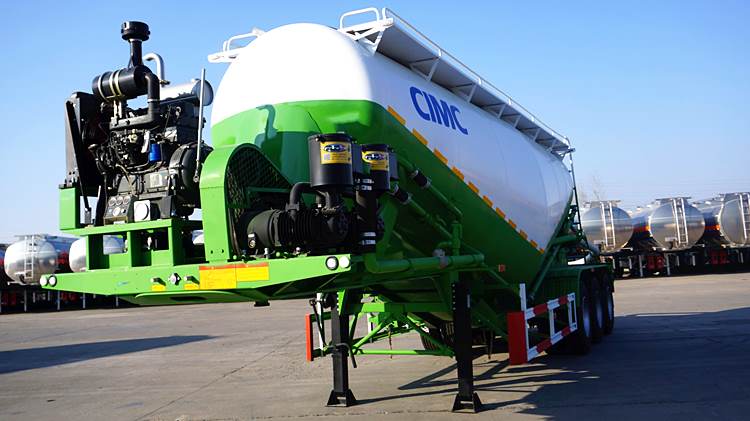

Brand: CIMC 38cbm Silo Trailer for Sale
Total Volume (m³): 25cbm-55cbm
Diesel Engine: WEICHAI 4105 Brand
Compressor: BOHAI
Axle: 3 axles, 13 ton
The silo trailer is generally formed by splicing the front head, the rear head, and the multi-segment tank body. Take the "dual warehouse" tank body as an example. The multi-segment tank body is composed of multiple tank bodies. The front and rear are generally provided with an inclination angle of 13° or 14°, mainly to meet the angle required for the material to reach the fluidized state.
Among them, the tank body and the end of the tank body and the head butt, the cross section of the tank body is ring-shaped, which is convenient for the docking between the head and the tank body: because the tank body has a certain inclination in the front and rear direction and the tank body width must not exceed 2.5m.
Brand: CIMC 38cbm Silo Trailer for Sale
Total Volume (m³): 25 cbm ~60 cbm
Tanker Body Material: 5mm or 6mm/ high strength wear-resistance steel
Diesel Engine: WEICHAI 4105 Brand
Compressor: BOHAI, FUDA 12m3/14 m3or other brands
Manhole Cover: Carbon steel or Aluminum 500mm(Diameter)
Discharging Valve: Diameter is 3 or 4 inch
Main Beams: Welded design, High Strength Steel
Axle: 3 axles, 14 ton
Suspension: Mechanical suspension
