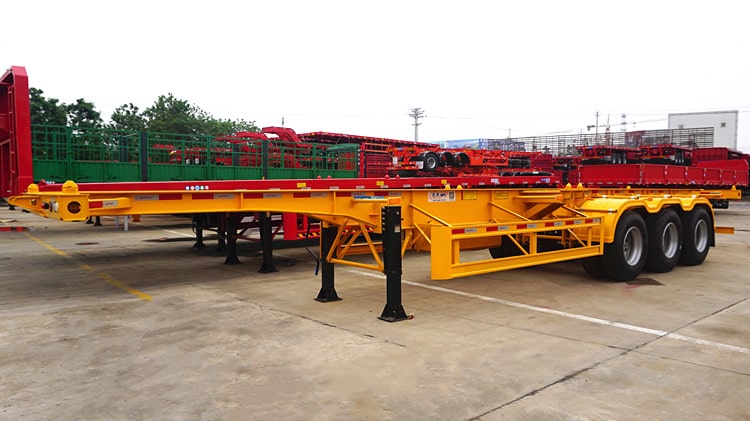

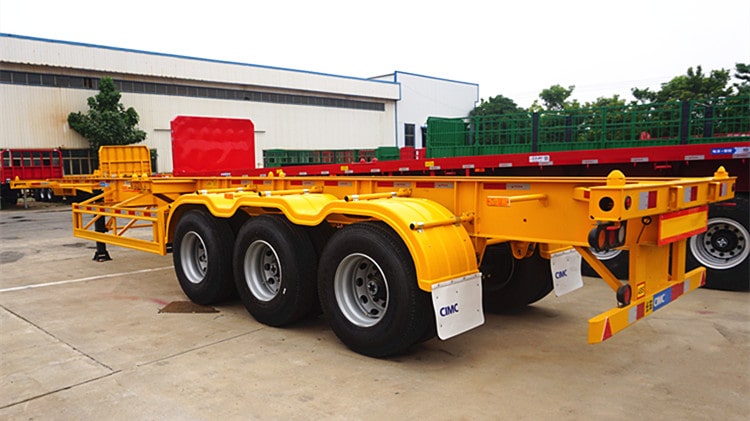

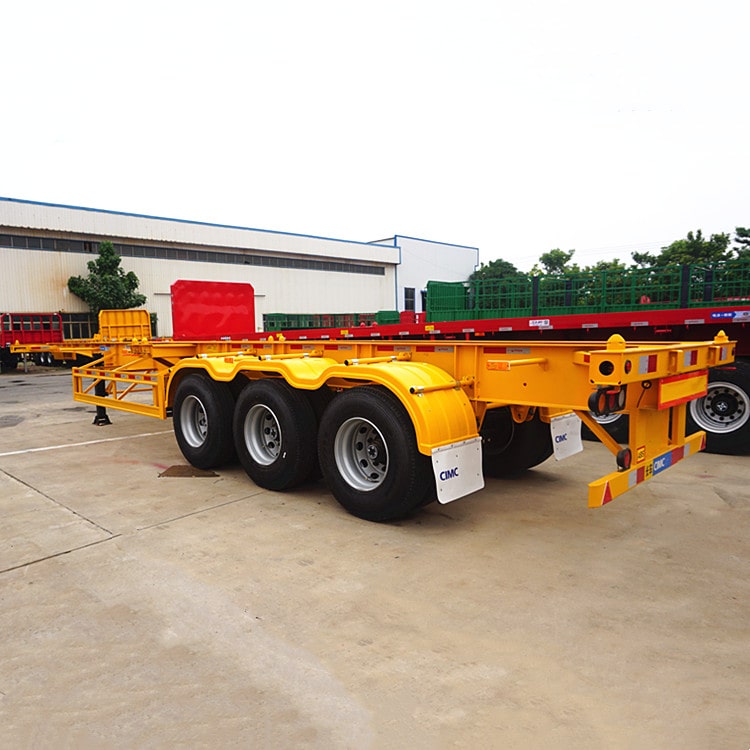

Type: CIMC 3 Axle 40ft Container Skeletal Trailer
Loading capacity: 40-70 Ton
Application: to carry 20ft 40ft container
Trailer type: container chassis
Material: high strength carbon steel material
Skeleton trucks are generally named as container skeletal trailers. They are semi-trailers with container construction for cargo and other parts. They are mainly suitable for use in ships, ports, routes, highways, and multimodal logistics transportation computer systems. In order to create differences in structure, container skeletal trailers can be divided into good flat type and frame type; and compared with appearance performance, they can be summarized into straight frame type and gooseneck type.
Overall L*W*H: 12400*2500*1550mm
Load weight:40 tons ~70 tons
Axles: 3x13 tons / 14 tons / 15 tons /16tons / 20 tons
Tire:12R22.5
Landing gear: JOST
Kingpin: 50(2inch)#or 90(3.5inch)# bolted type
Suspension: Airbag / Mechanical / bogie suspenion
Brake system: Wabco
Electric system: 24V / 12V + LED lights
Accessory: spare tire carrie + tool box
Remark: we can supply different specification for different road condition
1>Light dead weight, strong frame structure ;
2>Container lock with secondary lock mechanism ;
3>High tensile steel and bolted type king pin plate ;
4>Double brake chambers makes a performance braking effects.
