Overall dimension: 12500*2500*3400 mm(customized)
Standard Loading capacity: 60 ton and customized
Axles of the trailer: 13T/16T ,FUWA or BPW brand
Landing gear: JOST
King pin: 50 #

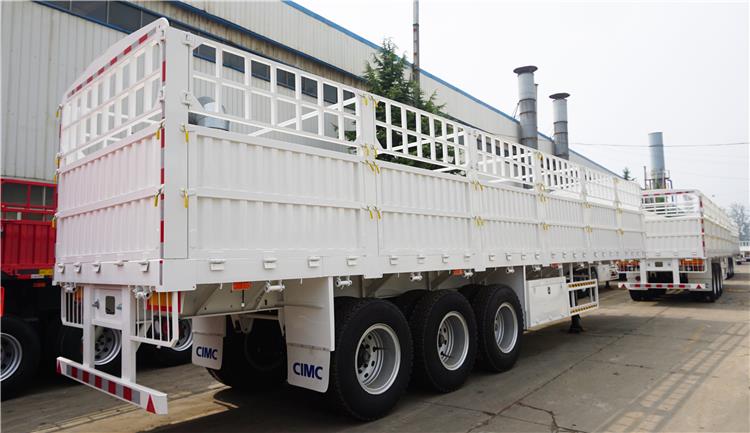

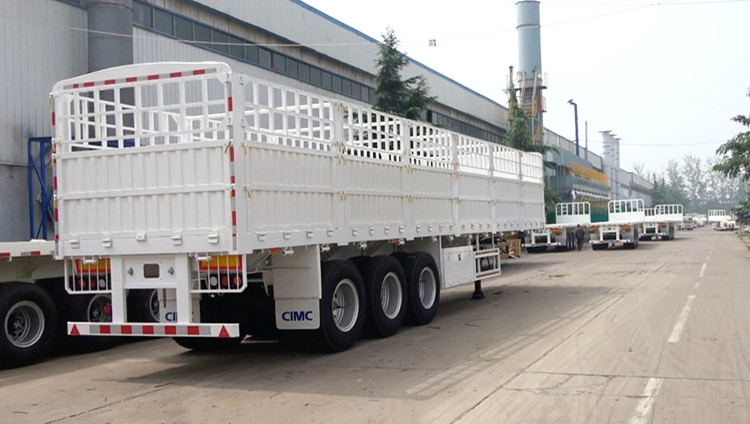

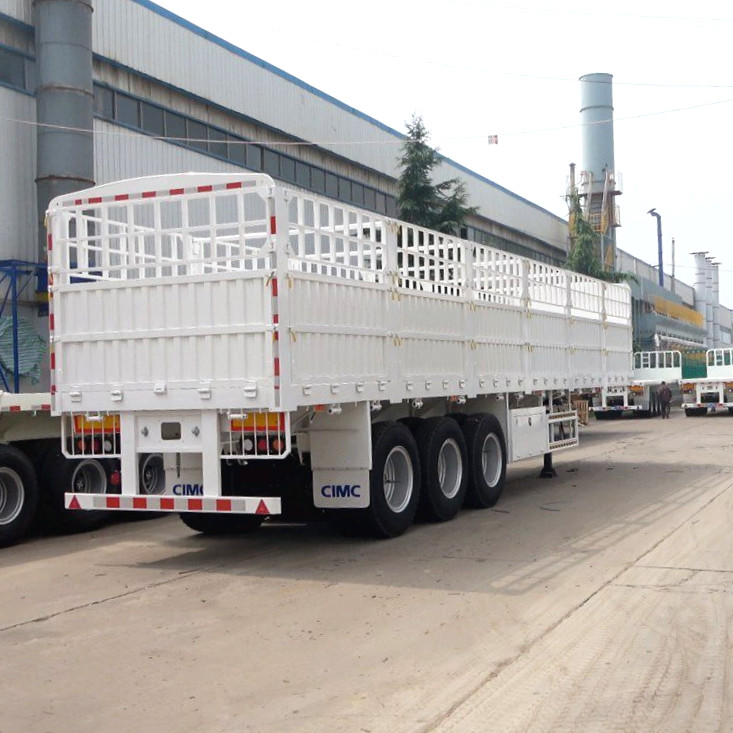

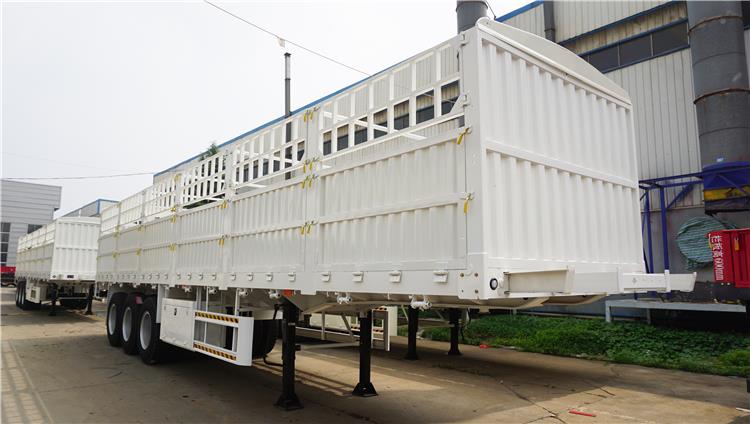

CIMC fence semi trailer are another commonly used type of equipment in the transportation industry . The fence semi trailer use to load a wide range of products and materials, like sand, bags, poultry, vegetables, fruits, clothes, appliances, and other daily necessities. Also the some bulk cargo, very widely used in the transportation industry. Livestock semi trailers can also be used to transport sheep, cattle and other animals.
CIMC production the fence cargo truck trailer are noted for their highly robust structure steel, we can provide difference configurations of our flat bed semi trailer to meet your transportation requirement.
Features:
Highly robust structure steel with tensile and high load capacity, 60 ton loading capacity .
Heavy duty type mechanical spring suspsension for high loads requirements needs.
Length and width of lowbed avaiable custom made
L*W: 12500mm*2500mm
Sidewall Height: 1800mm
Max. Payload: <60T
Application: Coal/Cargo/Containers Loading
Material of the main beam : Q345 high strength steel
Bottom Platform: 3mm-5mm thick(according to the load capacity)
King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Support leg: JOST brand
Suspension: Mechanical suspension or air suspension
Axles: FUWA/BPW/CIMC/other
Tires: 12.00R22.5/315 80R22.5(Specially designed and for oversea markets)
Brake System: WABCO
Electrical System: 24-volt lighting system
