Max payload: 40T
Suspension: Mechanical / air / bogie suspension
Landing gear: Heavy Duty Landing Gear
Loading capacity: 30T~80T according to your requestment
CIMC Dry van trailers are mainly used in the bulk cargo transportation.
The rated capacity varies widely from 30Tons to 100Tons, and the dimension different from 7000mm to 18000mm, we can manufacture it according to your needs.
The side wall height and side or back door numbers and opening ways have several options for your better usage.

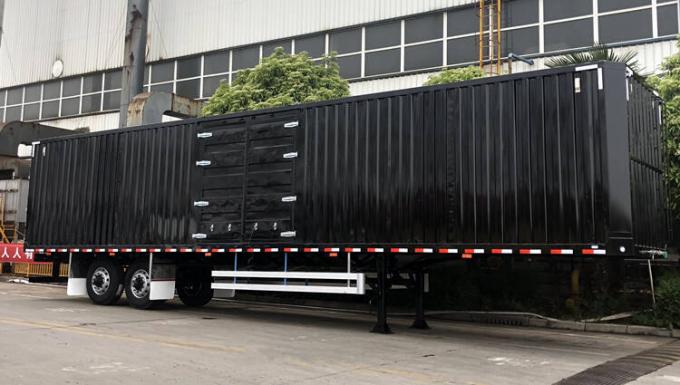

CIMC 2 axle dry van trailer for sale
|
Dimension |
13000mm*2500mm*4000mm |
|
Load Capacity(T) |
40T |
|
Axle |
2 axles |
|
Tire |
8 units |
|
Suspension |
Mechanical suspension |
|
King pin |
JOST brand 2.0 or 3.5inch(bolted or welded type) |
|
Support leg |
JOST brand |
|
Main beam |
Height: 500mm Upper Plate: 14mm Middle Plate: 8mm Bottom Plate is 16mm; Material: Q345B Steel |
|
Side beam |
16mm or 18mm steel channel(Material: Q235steel) |
|
Brake chamber |
WABCO |
|
ABS |
Optional |
|
Valve |
WABCO valve |
|
Light |
LED light (specially intended for oversea market) |
|
Voltage |
24V |
|
Receptacle |
7-pin Socket (for 7 wire harness) |
|
Semi Trailer Surface Coating |
Sandblasted, anti-rust chassis surface is available with 1layer of anticorrosive primer and 2 layers of top coats |
1. The body of the vehicle is made of high stength full thickness Steel, titanium content of 0.98‰, which ensure Beam and frame’s Toughness and strength.
2. Strong Loading Capacity,30-100 Tons Loading Range.
3. Multi Door-Opening Style.Side/Rear/Wing Opening.
4. Widely used in different areas, mainly used in long-haul freight transport.
