Max payload: 45 - 100 Tons
King pin: JOST 2.0 inch (50mm)/3.5 inch (90mm)
Axle: FUWA or BPW brand
Loading capacity: 30T~80T according to your requestment

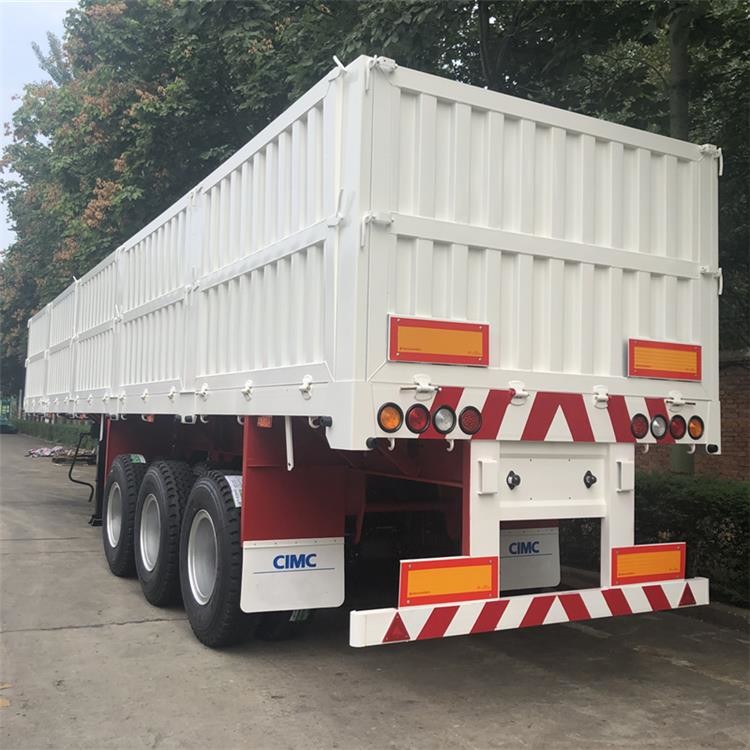

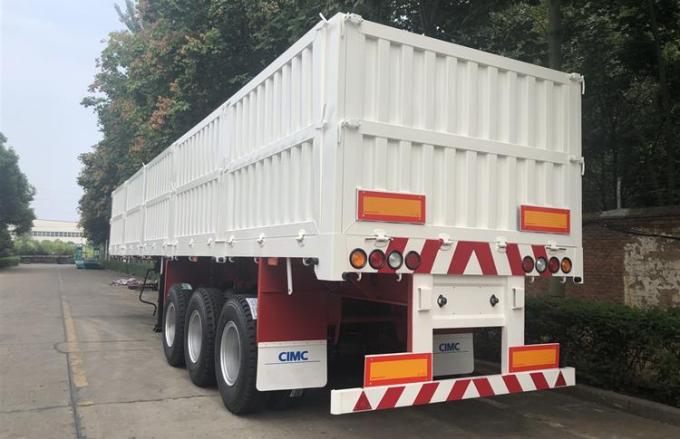

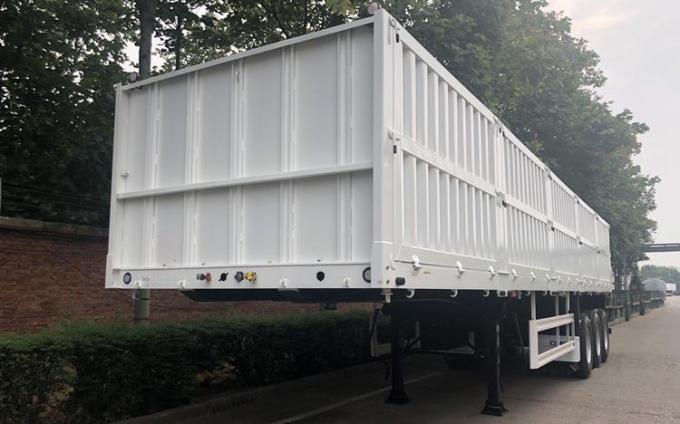

Grain trailer could be used to carry the bagged grain, cement, steel or other kinds of bulk goods. Suitable for the mid/long distance transportation of the mid/heavy duty and bulk cargo.
This platform semi trailer is widely used in the logistics. Dropside trailer developed on the basis of a container flatbed trailer, the grain trailer has a side wall structure design.
dry goods carrier trailer
flatbed trailer with long side wall
| Dimension: | 12500mm*2500mm*2350mm(800mm sidewall) |
| Payload: | 40-80ton |
| Container lock: | 12 pcs |
| Axles: | 3 axles, Fuwa/BPW /CIMC or other Chinese famous brand |
| Tire: | 12 units |
| Brake system: | WABCO brake system with dual brake chambers and emergency brake valve |
| Suspension: | Mechanical / airbag / bogie suspension |
| King Pin: | JOST brand 2.0 or 3.5 inch (bolted or welded) |
| Landing Gear: | JOST brand |
| Accessories: | Tool box , spare tire carrier |
| 1.Traction king pin:The traction pin is an important component that connects the high side trailer to the tractor and withstands traction, and is connected to the traction seat. It is generally forged from chrome-alloyed steel. |
| 2.High side wall:The side wall is divided into a flat plate and a vertical corrugated board. The vertical corrugated board is a typical board, and the strength will be higher. Can be detached or welded to death. |
| 3.Sidewall semi trailer frame:The frame is a space frame type low alloy steel welded structure. The frame is welded by two T-shaped longitudinal beams and beams to support the load. There are a traction pin and a traction pin plate connected to the tractor under the front of the frame. |
| 4.Protection device:Trailer protection device consists of side protection and rear protection to protect pedestrians and other vehicles from getting under the side panel cargo semi trailer. It can also reduce wind resistance and save fuel. |
