Size: 13000*2500*1550mm
Material: main beam Q345B
Suspension: Mechanical Suspension
King pin: 2"(50mm)or3.5"(90mm) JOST flatbed semi trailer
CIMC 48 flatbed trailer for sale is a rigid structure of steel construction forming a platform on which containers get loaded and unloaded through the use of overhead cranes.
48 foot flatbed trailer comes with well-marked points to facilitate the loading of containers and their transportation to designated locations.
This type of platform semi trailer is affordable and easy to use.

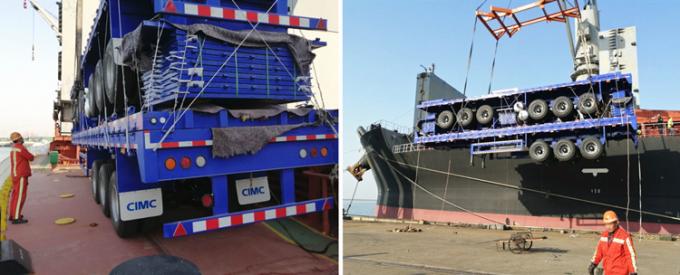

When transporting 48 ft flatbed trailer, many customers use container transportation, which has low transportation costs and short transportation time. And some customers are bulk carriers or ro-ro ships.

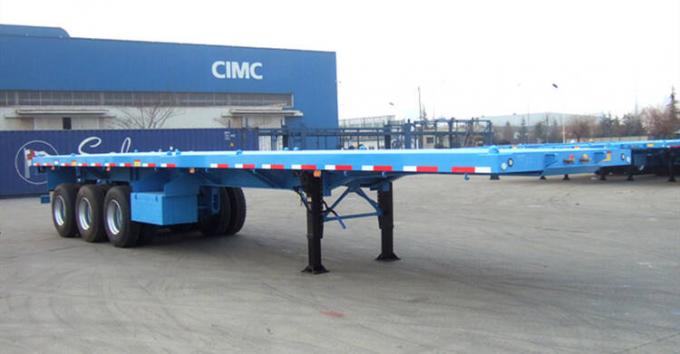

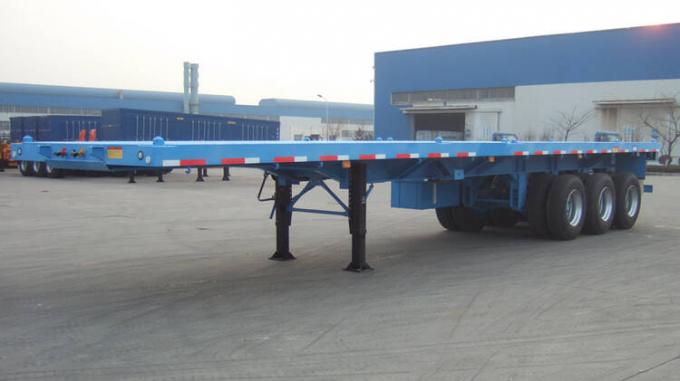

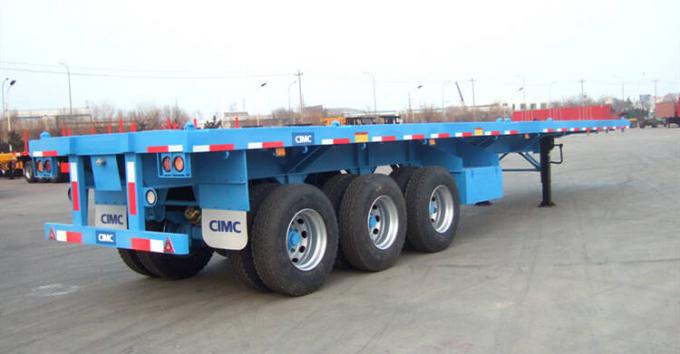

CIMC 3 axle 48 foot flatbed trailer

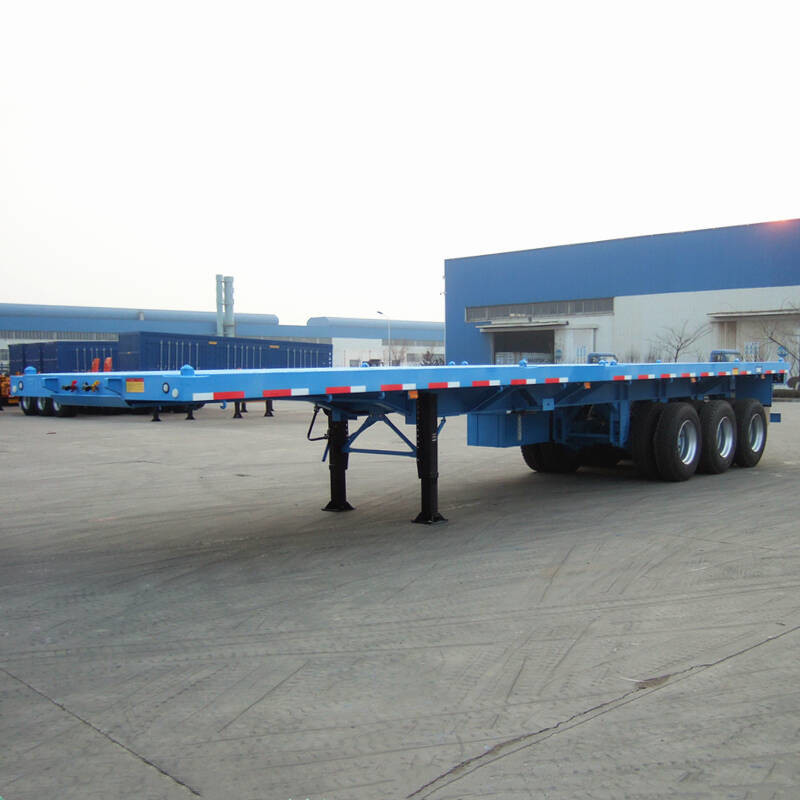

CIMC 48 ft flatbed trailer for sale
| Dimension | 12500*2500*1530mm |
| Payload | 60 tons |
| Container lock | 12 pcs |
| Axles | 3 axles, Fuwa/BPW /CIMC or other Chinese famous brand |
| Tire | 12 units |
| Brake system | WABCO brake system with dual brake chambers and emergency brake valve |
| Suspension | Mechanical / airbag / bogie suspension |
| King Pin | JOST brand 2.0 or 3.5 inch (bolted or welded) |
| Landing Gear | JOST brand |
| Accessories |
Tool box , spare tire carrier |
1. 48 ft flatbed trailer for sale comes with JOST landing gear that plays a key role in enhancing stability during loading and unloading operations.
2. The platform semi trailer painted by advanced painting system, the painting effect can meet Swedish Sa2.5 class marine anti-corrosion standards.
3. CIMC can also offer the 20ft/40ft/45ft/53ft, 2/4/5 axles, the capacity from 60-100 tons.
4. The flatbed trailer for sale is equipped with a coupling device that can transmit horizontal or vertical forces to the tractor. Platform semi trailer doesn’t have itself power, it is driven by the truck head.
