Overall L*W*H:12500×2500×1530 mm
Payload: 40-60 tons
Landing gear: JOST
Kingpin: 50(2inch)#or 90(3.5inch)# bolted type
Suspension: Mechanical
CIMC Platform semi trailer can load 1x 40ft container and also can transport 2x20ft container, When shipping a 20ft container separately that put it in the middle of the 40 ft flatbed trailer .this kind of Platform semi trailer mainly transporting container, what's more, It can also transport bags of chemical fertilizers, wood, steel bars, boxes and other more easily fixed goods.

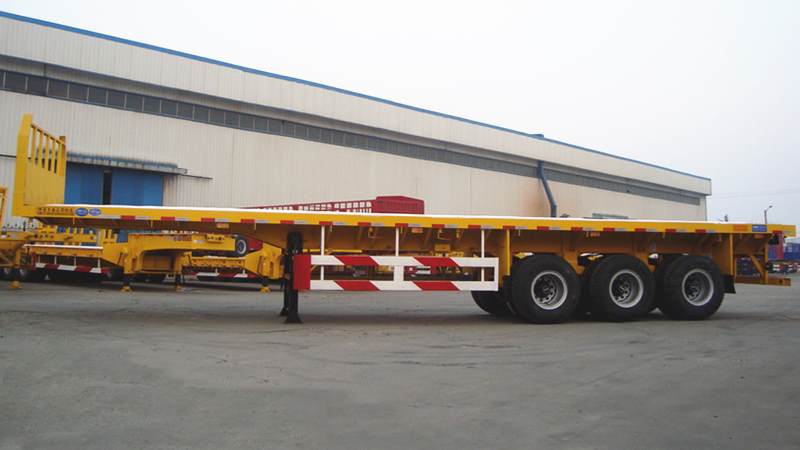

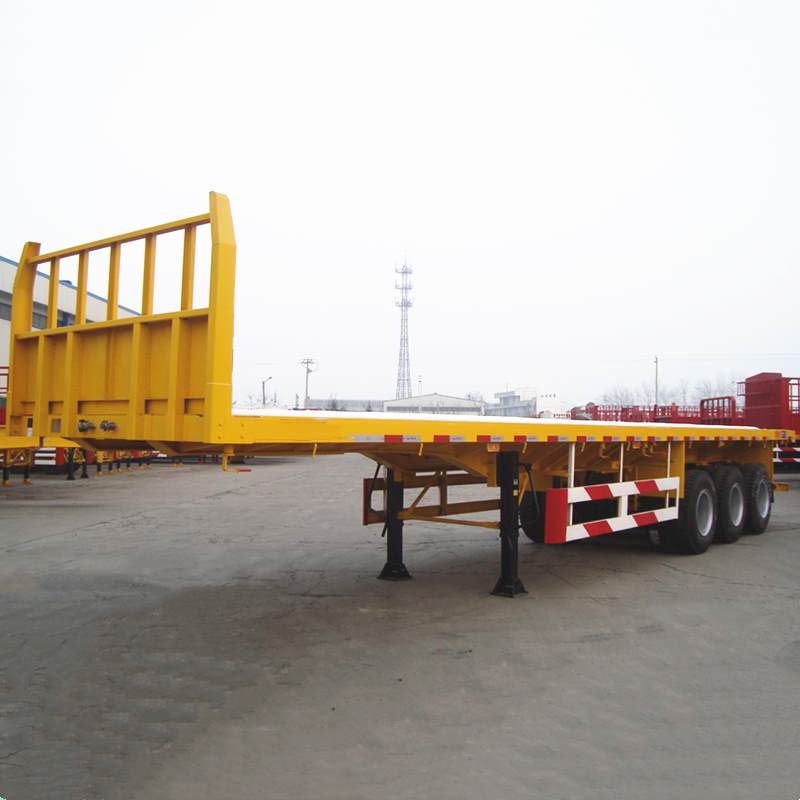

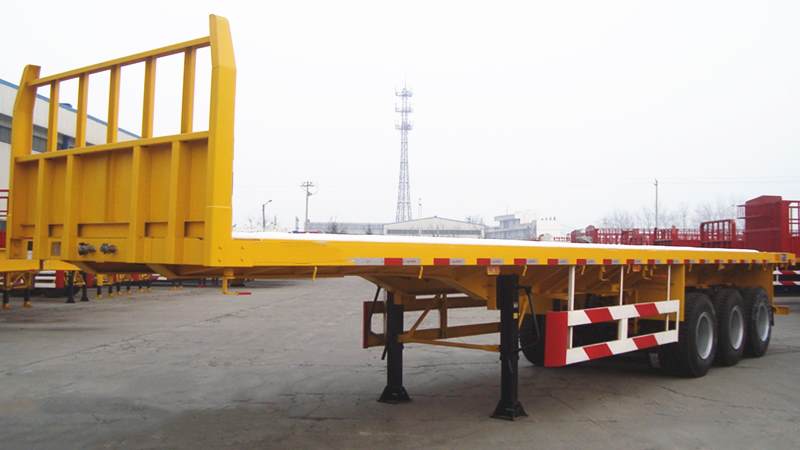

CIMC 40ft 3 Axle Flatbed Trailer for Sale
Overall L*W*H: 12500*2500*1550mm
Payload: 60 tons
Axles: 13 tons / 14 tons / 15 tons /16tons / 20 tons ( Fuwa/BPW /CIMC or other Chinese famous brand )
Tire: 12.00R20 / 11.00R20 / 12R22.5 / 385/65R22.5, optional
Landing gear: JOST
Kingpin: 50(2inch)#or 90(3.5inch)# bolted type
Suspension Mechanical: / airbag / bogie suspension
Brake system: WABCO brake system with dual brake chambers and emergency brake valve
Container lock: 12 pcs
Accessories: Tool box , spare tire carrier
1. The beam is integrated,Not spliced.
2. Flatbed container trailers adopt advanced design concepts. After fully understanding and analyzing the transportation environment in different countries.
3. Paint: Polyurethane paint and wax trailer.
4. CIMC 40 tons logistics trailer for sale adopts high strength steel material to manufacture the flatbed trailer, it can make the flatbed trailer have a higher loading capacity and a longer service life
