CIMC 40ft 3 Axle Container Chassis Skeleton Trailer

CIMC 40ft 3 Axle Container Chassis Skeleton Trailer

7700 USD

Size: 12400*2500*1550mm

Material: Carbon steeel

Suspension: Mechanical / Air / Bogie

Function: Transport 20/40ft container and Heavy Duty Equipment

SKU: CIMC 40ft 3 Axle Container Chassis Skeleton Trailer
GTIN: 6975766103668
MPN: ZJV9507093
Brand: CIMC

CIMC 40ft 3 Axle Container Chassis Skeleton Trailer Description:

Container chassis trailers are designed for maritime container and sea freight transport tasks and combine both safe and rapid container handling. CIMC shipping container trailer possesses a long service life even under the tough conditions which a semi-trailer container chassis has to face on a daily basis.

Most industries use large containers to transport finished products, so container trailers are required. Containers are still one of the safest ways to transport fragile and sensitive goods.

3 Axle 40ft Shipping Container Chassis Skeleton Trailer for Sale

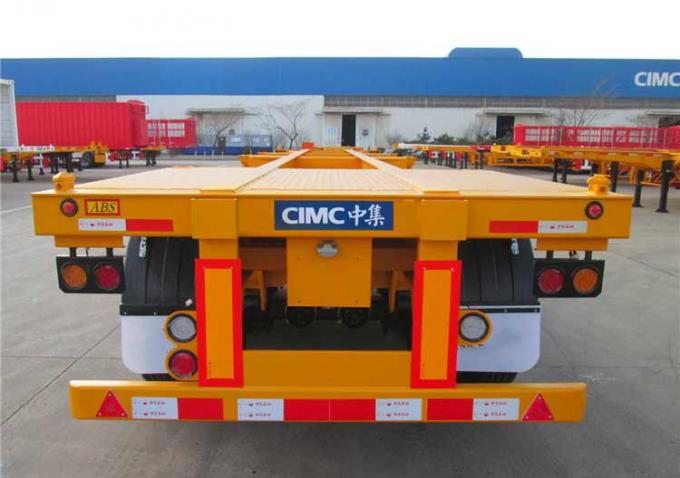

CIMC 40ft shipping container trailer

3 Axle 40ft Shipping Container Chassis Skeleton Trailer for Sale

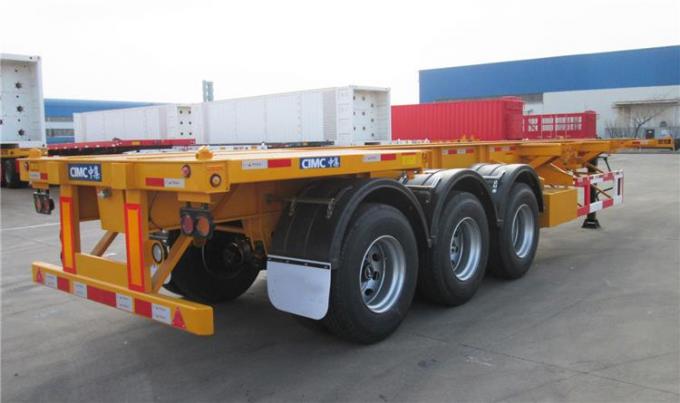

CIMC 40ft container chassis trailer

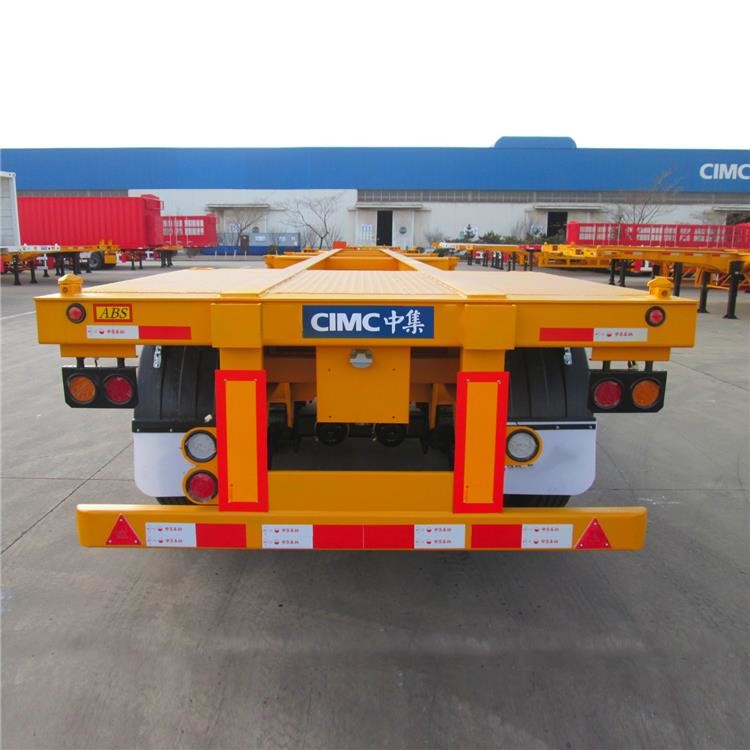

CIMC 40ft 3 Axle Container Chassis Skeleton Trailer

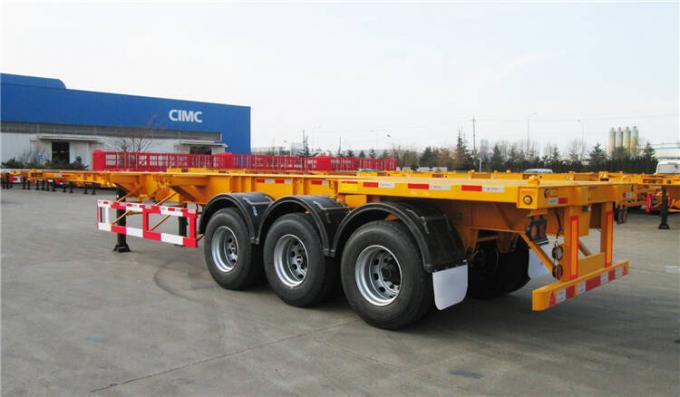

CIMC 3 axle container skeleton trailer



Specification of Container chassis trailer

Type Container semi trailer
Overall dimensios 12400*2500* 1550mm
Loading weight 60 ton
Container twist lock 8/12 pcs
Main beam Q345B steel
Side beam 16 U shaped steel or I shaped steel
Axle brand FUWA/BPW/CIMC brand
Traction pin 2” or 3.5”
Landing gear JOST brand optional
Suspension system Mechanical suspension, air suspension is optional
Tire 12.00R22.5 Triangle brand tires, others tires optional
Brake 6 big chamber brake system
Tool box 1 unit
Side marker lamp LED type
Voltage

24V



Adavantage:

1. The shipping container trailer is welded by the longitudinal beam, the beam and the front and rear beams. The longitudinal beam is made of high quality steel plate 16Mn submerged arc welded into an I-shape (main size is 450, 500). The beam is punched into a trough type with high quality steel plate, front and rear ends. The beam is a welded rectangular section. An integral long beam is arranged at the intermediate container locking device to improve the carrying capacity of the container locking device

2. Most important to note about container chassis trailers is the fact that they come in different types and that includes both robust and lightweight options. This is because of the reason that there those that are used in heavyweight applications and the others are used in lightweight operations.

3. The common container trailer chassis is easy to use and affordable. However, you will need auxiliary equipment such as the overhead cranes for loading and unloading the containers from the chassis.
