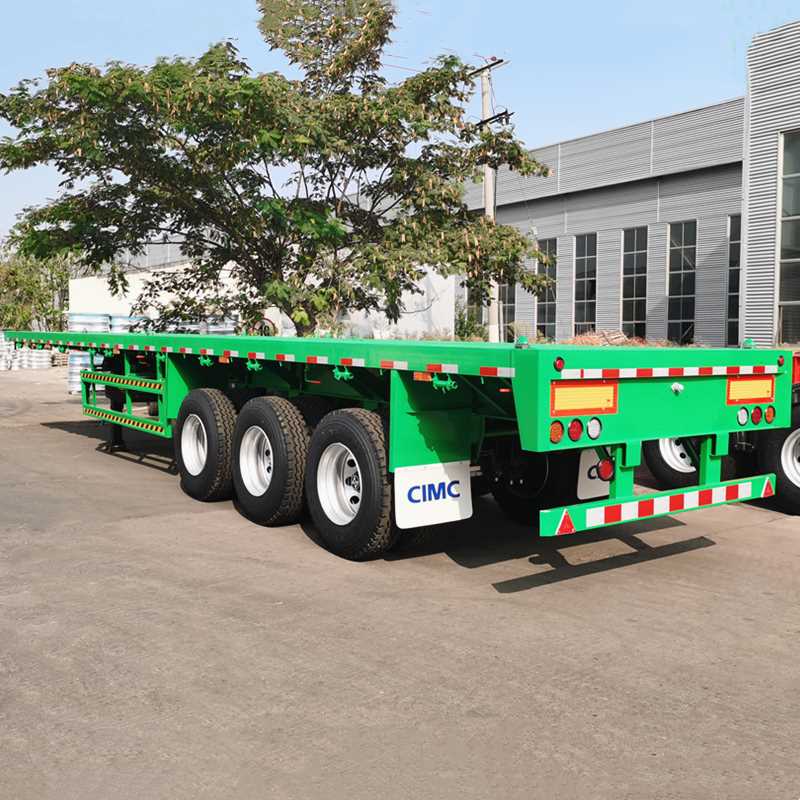

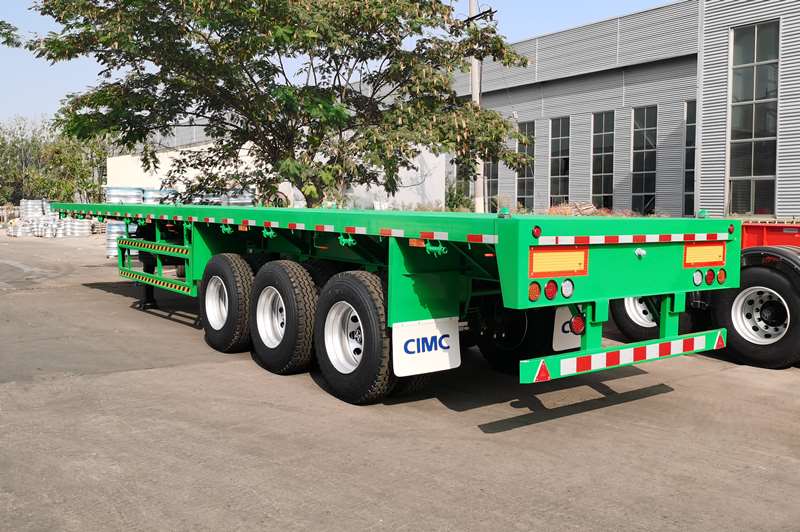

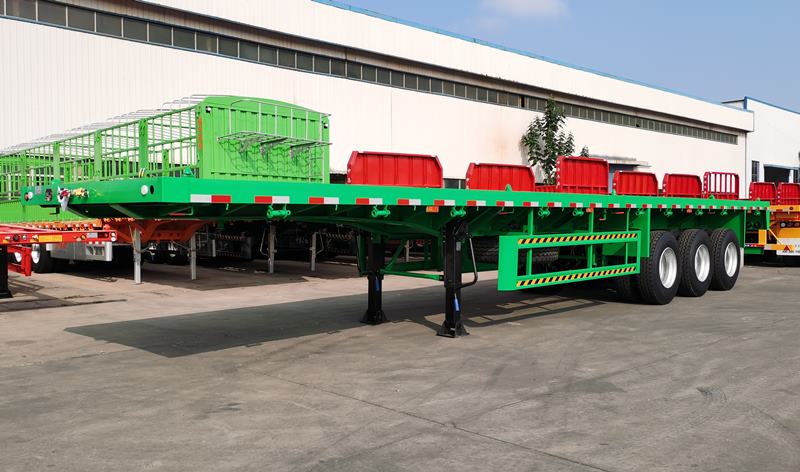

CIMC 40 Foot 3 Axle Flatbed Semi Trailer
CIMC 40 Foot 3 Axle Flatbed Semi Trailer

CIMC 40 Foot 3 Axle Flatbed Semi Trailer

Overall L*W*H: 12,500×2,500×1,530 mm

Payload: <80tons, customized

Landing Gear: JOST

Kingpin: 50(2inch)#or 90(3.5inch)# bolted type

Suspension: Mechanical

CIMC 40 Foot 3 Axle Flatbed Semi Trailer Description:

CIMC Flatbed Semi Trailer can load 1x40ft container and also can transport 2x20ft container when shipping a 20ft container separately that put it in the middle of the 40 foot flatbed trailer. this kind of trailer mainly transporting container, what's more. It can also transport bags of chemical fertilizers, wood, steel bars, boxes and other more easily fixed goods.

CIMC 3 Axle Flatbed Trailer is the most popular model. According to the length, we can also offer the 45ft 48ft 52ft, 2axles/3axles/4axles, the capacity from 35 ton to 60 ton. For the types, we can also make the flatbed with side wall, side panel with fence, or with front board, or with Columns to load the logs.

CIMC 40 Foot 3 Axle Flatbed Semi Trailer

CIMC 40 Foot 3 Axle Flatbed Semi Trailer

CIMC 40 Foot 3 Axle Flatbed Semi Trailer



Specification:

Overall L*W*H: 12500*2500*1530mm

Payload: <80 tons, customized

Axles: 13 tons/14 tons/15 tons/16tons/20 tons (Fuwa/BPW /CIMC or other Chinese famous brands)

Tire: 12.00R20/11.00R20/12R22.5/385/65R22.5, optional

Landing gear: JOST

Kingpin: 50(2inch)#or 90(3.5inch)# bolted type

Suspension: mechanical/airbag/bogie suspension

Brake system: WABCO brake system with dual brake chambers and emergency brake valve

Container lock: 12 pcs

Accessories: Tool box, spare tire carrier
