King Pin: 2"(50mm)or3.5"(90mm)
Function: Heavy Duty Equipment
Lowboy trailer main beam height is 550-580mm. The front/down plate width is 220mm, and thickness is 22mm. That durable and stronger construction ensure the loading capacity, and also improve its capacity to twisting forces, shock, bump, and meet load requirements on bad road condition.
Removable gooseneck trailer side beam adopt “H” steel, height is 300mm, width is 140mm, and its thickness is 8/6/8mm. The durable design avoid the side beam to have the deformation.
Gooseneck lowboy trailer side support’s thickness is 6mm, the distance of the side support is only 450mm. The side support firmly connect the main beam and side beam to improve the whole vehicle’s loading capacity, prevent the working platform to have cave the deformation.

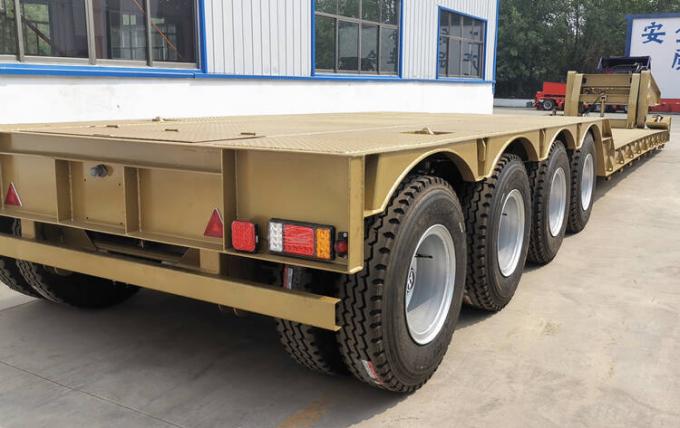

CIMC heavy duty 4 axle lowboy trailer for sale

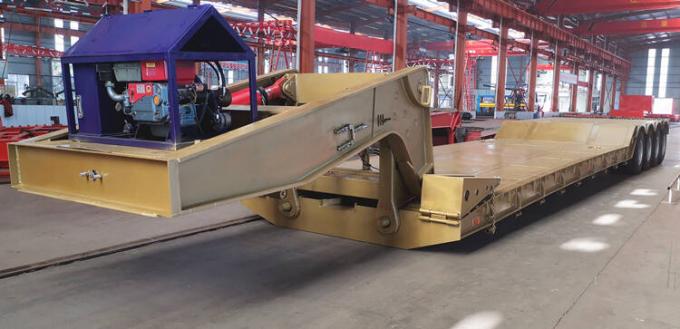

CIMC 4 axle lowboy trailer can separate the gooseneck from the trailer, and achieve contact between the front end of the vehicle and the ground. After the cargo or equipment is loaded, the RGN trailer is restored to the original transportation state in time for transportation.
Common low bed semi trailer, should use the ramp behind the trailer for cargo loading. Yet, some large machinery and equipment have very high centers of gravity due to their very high height. There is a great risk of later loading.
Loading method for gooseneck detachable gooseneck trailer: cargo is loaded from the front. Detachable gooseneck cargo table is very low, so the stability and security are very good.
|Dimension(L*W*H)||17000*3000*2500mm ( Details will be according to the drawing)|
|Loading capacity||100 ton heavy duty lowboy trailer|
|Axle||4 axles, FUWA/BPW/CIMC/other|
|Frame||Material: HG60 high strength steel, Main beam height: 550mm|
|Floorplate||5mm, diamond plate|
|Suspension||spring suspension, air suspension, bogie suspension|
|King Pin||2" 50# or 3.5" 90#|
|Electric System||24V, LED light|
|Color||white, blue, yellow, green, red, color optional|
