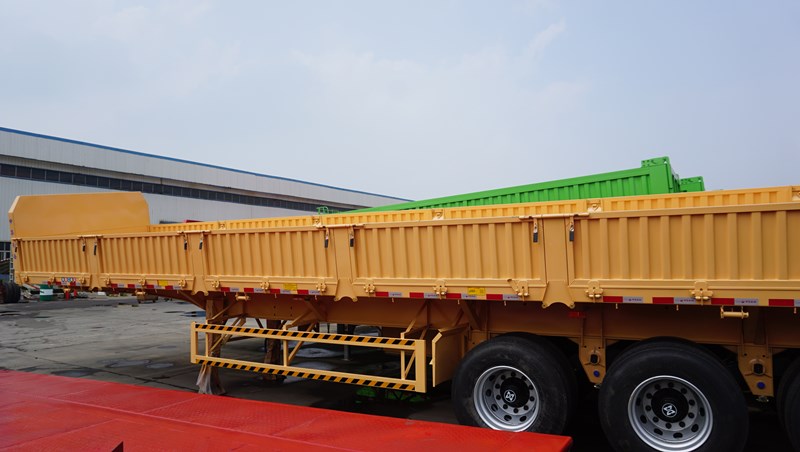

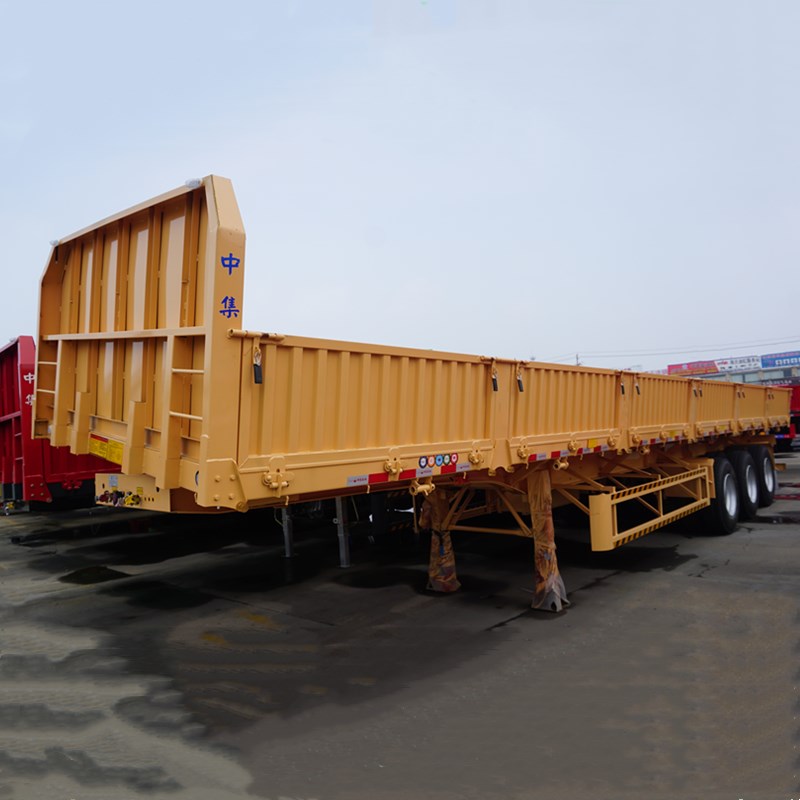

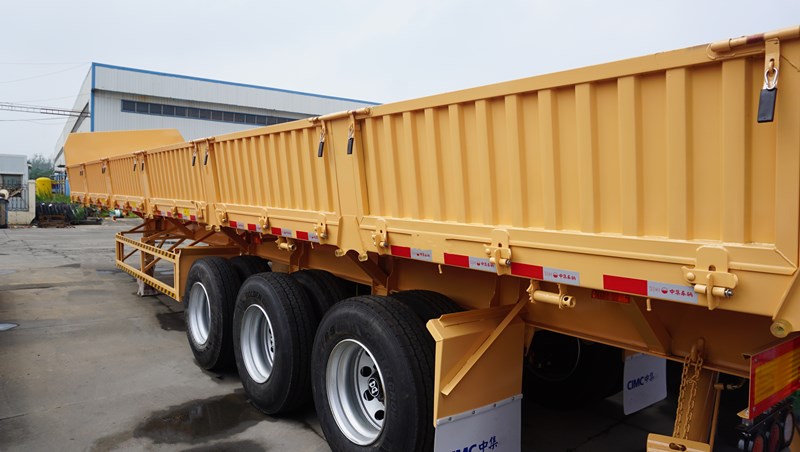

CIMC 3 Axle Side Tipper Trailer

CIMC 3 Axle Side Tipper Trailer Description:

CIMC dump trailers adopt high strength steel to make it durable when load the sand or small stones or rocks. And the loading capacity are 40t, 60t, 80t. CIMC Tippers equipped with reliable hydraulic HYVA cylinder. We can customize the tipper trailers according to your special need, like U shape dump, end dump, side tipper, and container tippers including skeleton and flatbeds trailers. We use well-known brand axles, FUWA, BPW. It's with high performance, and reliable to use.

3 Axle Side Tipper Trailer

Advantages:

1.Double-plate main beam for heavy-duty dump trailer; for heavy-duty dump semi-trailers, the main beam is designed with double plates, which have stronger carrying capacity; it is not easy to damage.

2.Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.

3.Vice beam: with 4 units vice beam, which can make the bottom of the box better bearing capacity, and will not easily deform. The lattice structure of the side door makes the side door more solid.

4.Cross balance beam: There is a balance beam at the front and rear of the main beam, which can better support the beam and is not easy to deform.

5.Flip Bracket: 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the trailer.

Specification:

Brand: CIMC 3 Axle Side Tipper Trailer

Braking System: WABCO

Landing Gear: JOST

Axle: 3 Axles

Tyre: 12 units

Hydraulic system: HYVA cylinder

Suspension: Mechanical suspension

Kingpin: 50#, 90#
