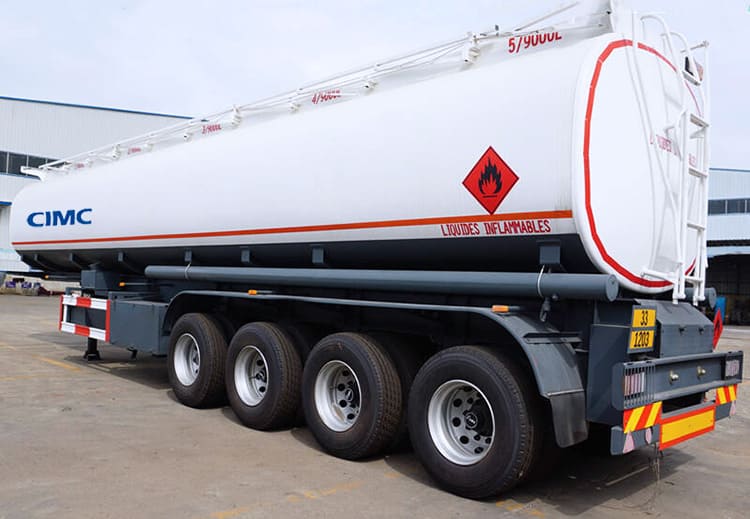

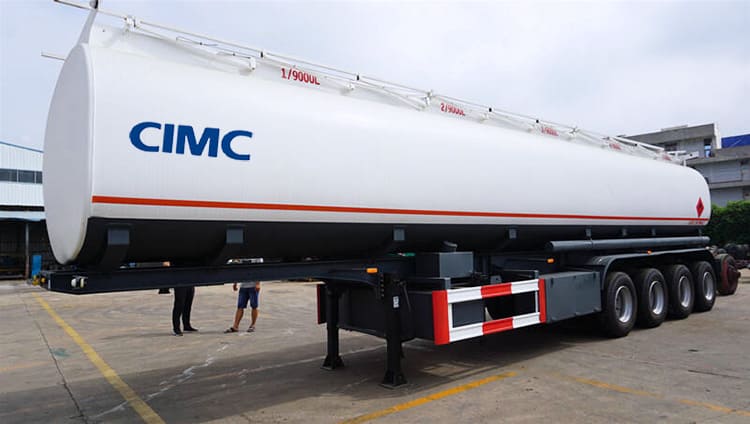

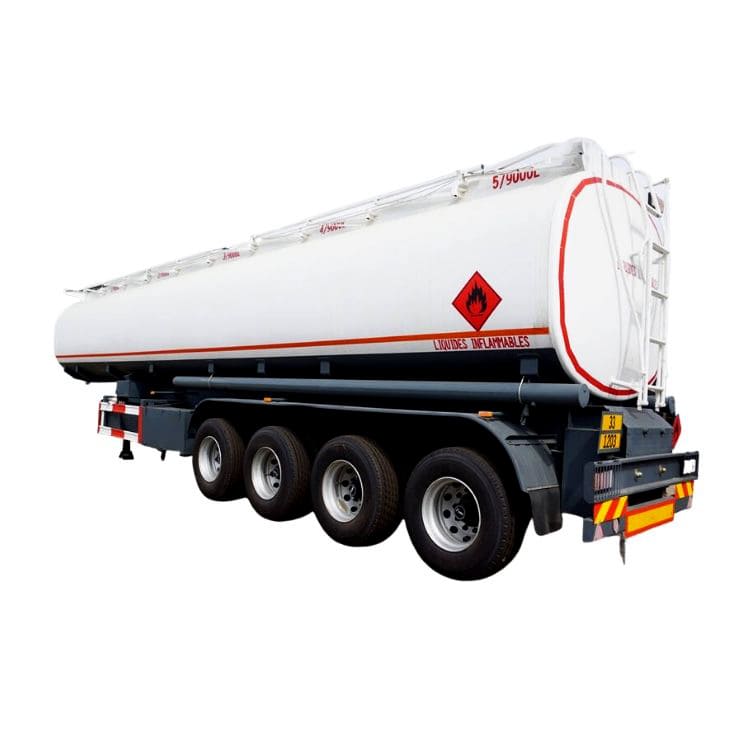

CIMC 40000 Liters Diesel Fuel Tank Trailer is mainly used for the transportation and storage of petroleum derivatives - gasoline, diesel, crude oil, lubricating oil and coal tar. The capacity is quiet large,from 10000 Liters to 70000 Liters.
CIMC 40000 Liters Diesel Fuel Tank Trailer adopts longitudinal welding technology to reduce the number of weld seams of the tank and improve the overall firmness of the tank by more than 20%
CIMC 40000 Liters Diesel Fuel Tank Trailer also adopts polyurethane paint with high adhesion, high chromogenic, beautiful color, and the cost is twice that of ordinary paint. The paint will not come off after five years.
Dimension: 11000mm*2500mm*3700mm(the exact size depends on the final design)
Volume: 40000liters
Application: transport Fuel, Oil, Diesel
Tank body:
Material: Carbon steel
Tank body and separate compartment plate: 6mm
Compartments: 1 to 7 compartments, based on customer needs
Manhole cover: Carbon steel or Aluminum alloy API manhole cover 500mm (diameter)
Discharge valve: Diameter is 3 or 4 inch
Bottom valve: Aluminum API Pneumatic Bottom Valve
Tanker body test: Hydrostatic test to 5 psi (35 Kpa) on each compartment
Chassis:
Axles: 4 units, FUWA/BPW/CIMC/other
Landing Gear: JOST brand
King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Suspension: Air suspension
Brake System: WABCO
Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
