Load capacity:30t
Color:optional
Landing gear: JOST
Axle: FUWA/BPW/CIMCBrand
King Pin: JOST 2.00 or 3.5-inch
Product Description:
CIMC tipper flatbed trailer could bear the bad road conditions. The sides with high tensile strengthening rip and the channel steel-reinforced enclosure shape design. The sides are welding molding which increasing the loading capacity. This type of trailer could be used for nearly 10 years.CIMC flatbed semi trailer is usually used to transport 20ft or 40ft containers, they are mainly used for container transportation supporting ships, ports, shipping lanes, highways, transit stations, bridges, tunnels, and multimodal transport.
CIMC flatbed semi trailer can be customized according to customer needs.
Different options: 2 axles, 3 axles, 4 axles. 30T, 40T, 50T, 60T. Airbag suspension, spring steel suspension.

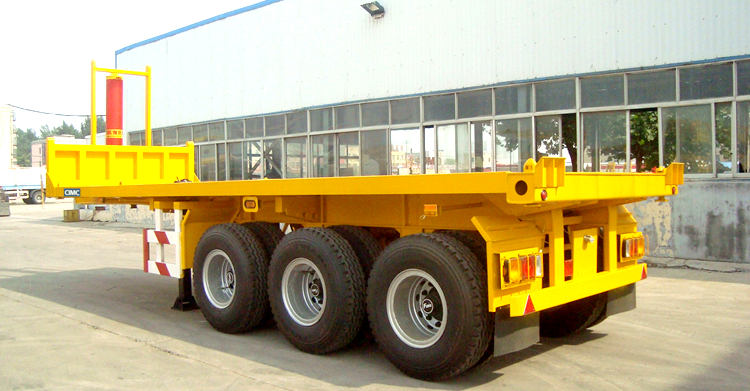

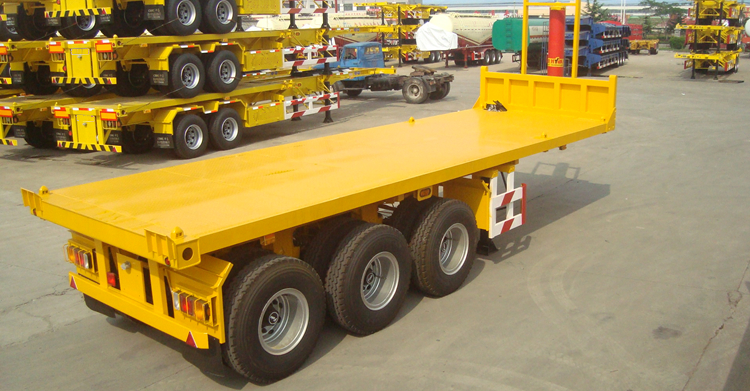

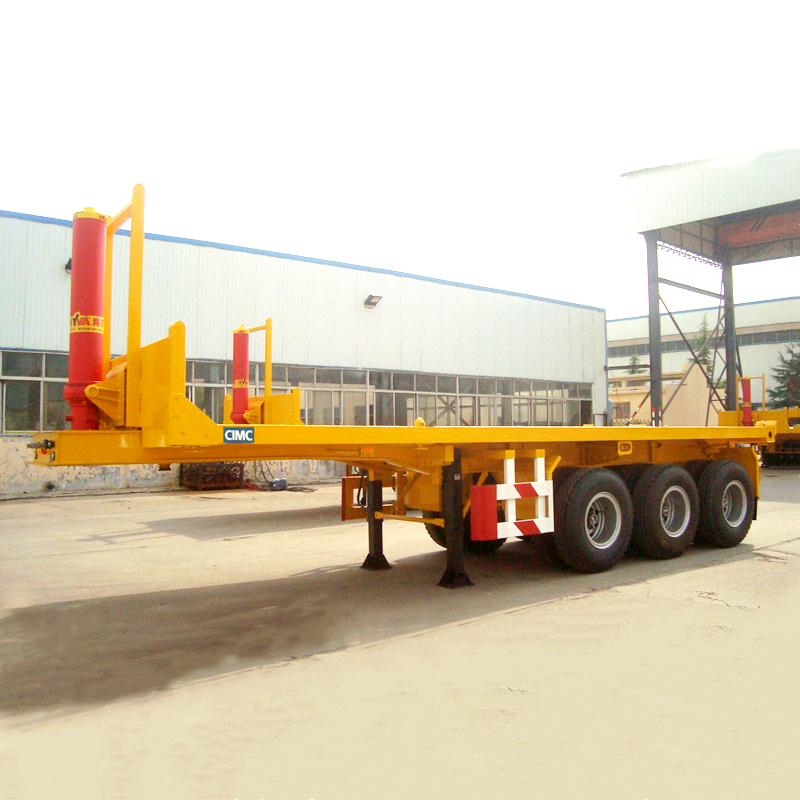

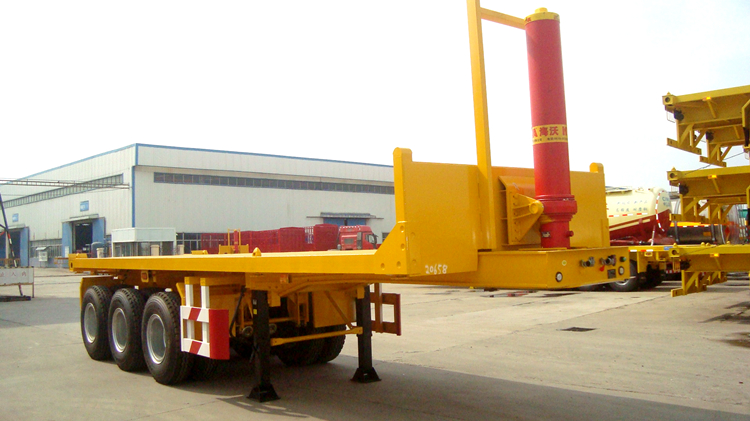

Flatbed tipper trailer
3 Axle Chassis End Tippers
Flatbed tipper trailer
Specification:
Overall dimension:6700mm*2500mm*2900mm
Loading capacity: 60T
Axles: 3 axles,13T/16T ,FUWA/ BPW/ CIMC/ Other Brand
Suspension:Heavy duty mechanical suspension
Tipping system: 196 hydraulic cylinder
Tire:12 units
King pin:90#
Landing gear:JOST
Brake system: WABCO
Electrical system: 24V, LED lights
