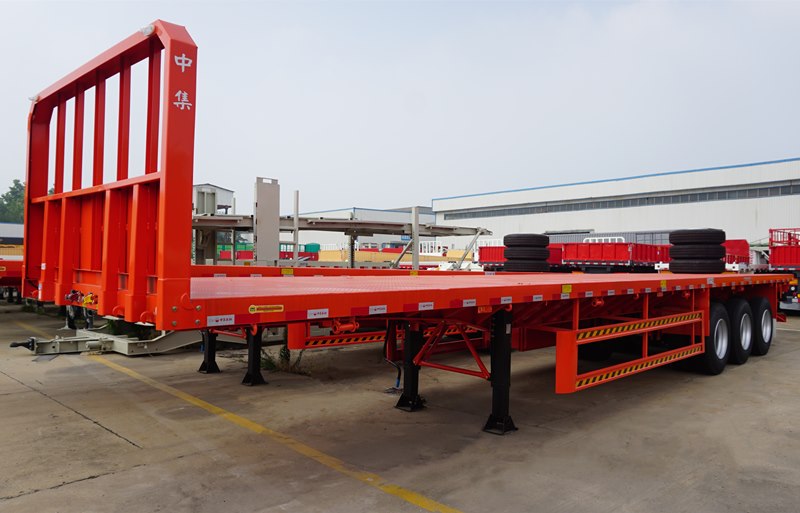

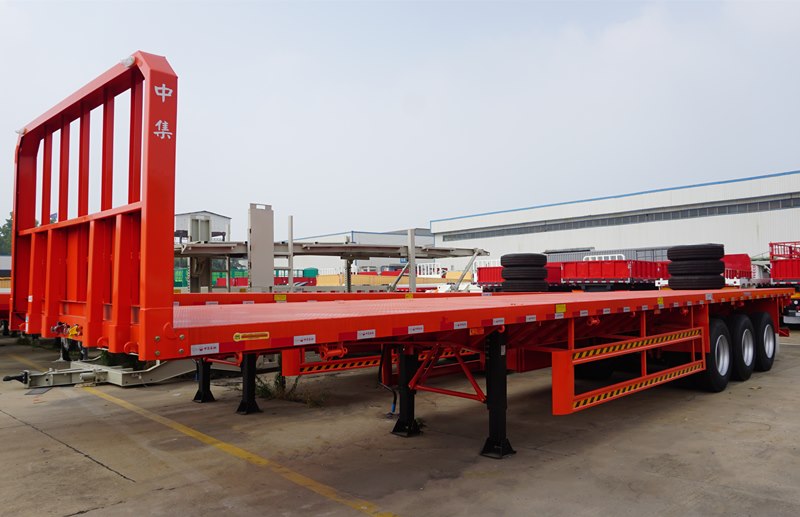

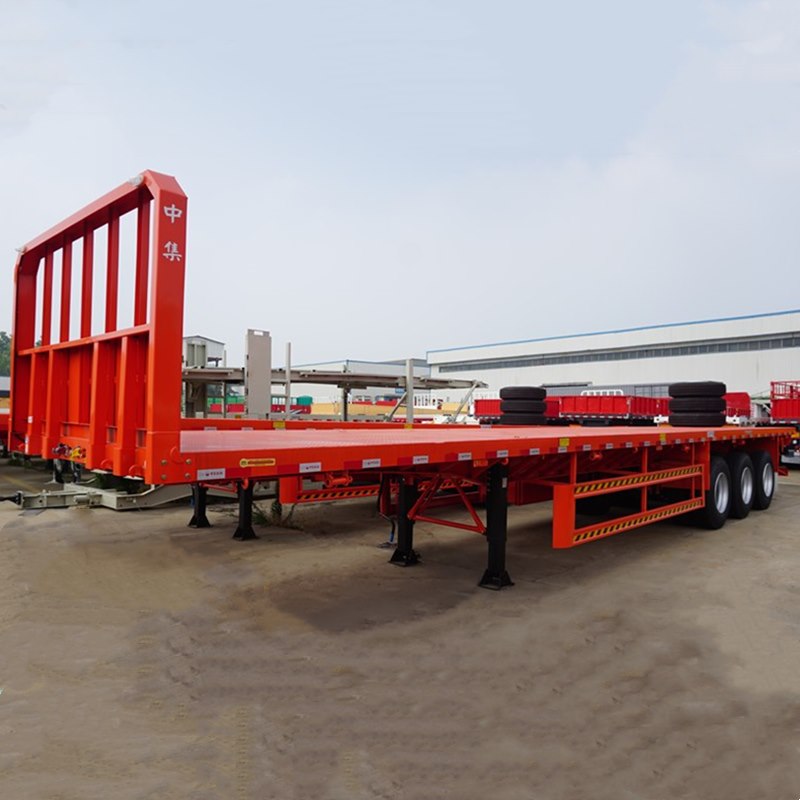

3 Axle Flatbed Container Trailer

3 Axle Flatbed Container Trailer Description:

Container Flatbed Semi Trailer, 40ft is the most popular model. According to the length, we can also offer the 45ft 48ft 52ft, 2axles/3axles/4axles, the capacity from 35 ton to 60 ton. For the types, we can also make the flatbed with side wall, side panel with fence, or with front board, or with columns to load the logs.

CIMC 3 Axle Container Flatbed Semi Trailer, offers the container trailers to maximize the payload. CIMC flatbed container trailer adopts advanced design concept. After fully understanding and analyzing the transportation environment in different countries.

3 Axle Flatbed Container Trailer

Advantages:

CIMC uses automatic arc-submerging welding method to weld the main beam, there is no interface between the steel plate, it can ensure the intergrated main beam, so the main beam is more stronger and more durable.

To make sure the service life of the semi trailers, all the spare parts we adopt are World Famous brand. We use famous German WABCO braking valve will definitely shorten the Braking Distance, to make the safety of the trailers and the drivers.

CIMC uses the 13 ton axle but the 16 ton 220 mm width brake pads which can improve the brake performance 20 %

Polyurethane paint, the vehicle is more beautiful, has a strong adhesion, long-term use of non-fading, non-fading paint, effective protection of the body against rust, prevent acid and alkali corrosion, extend the life of the vehicle

Hight Quality container locks, make sure the loads safe and stable

Specification:

Dimension: 12500mm*2500mm*1530mm

Vertical Beam Material: Q345 Steel

Braking System: WABCO

Landing Gear: JOST

Axle: 3 Axles

Suspension: Air suspension

Tire: 12 units

Landing gear: JOST

Brake system: WABCO

King pin: 90#

Electrical system: 24V, LED lights
