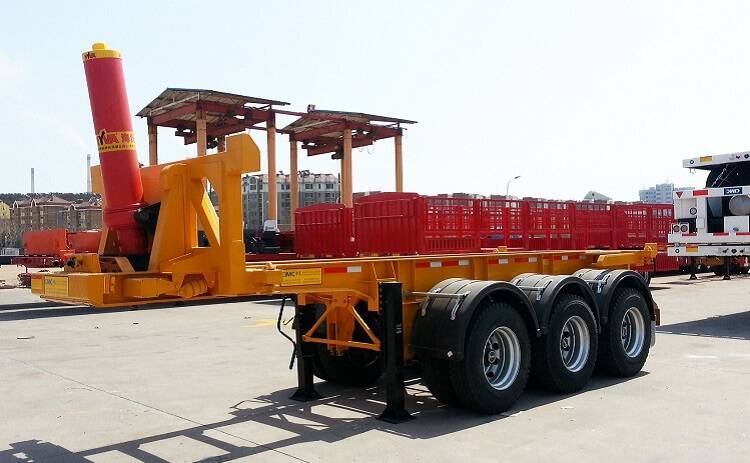

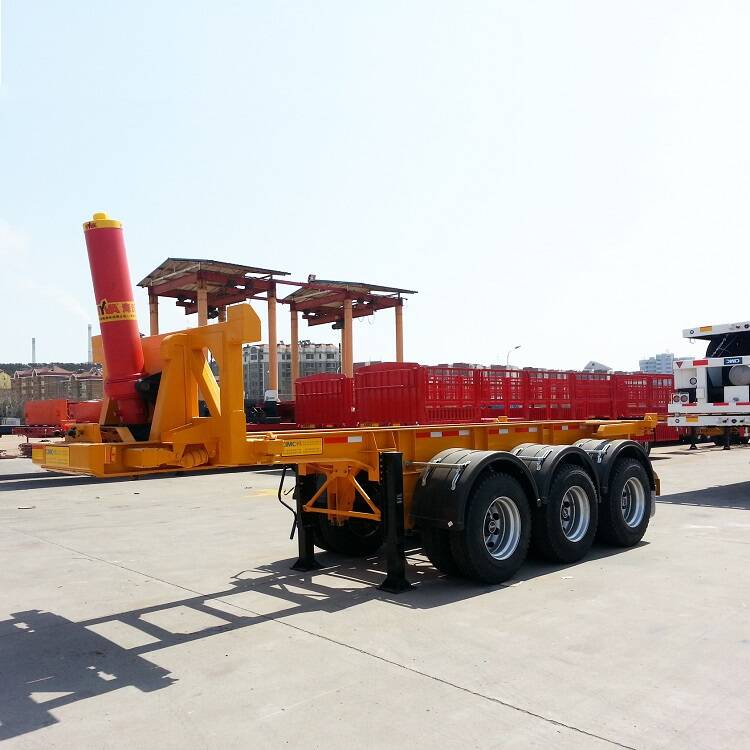

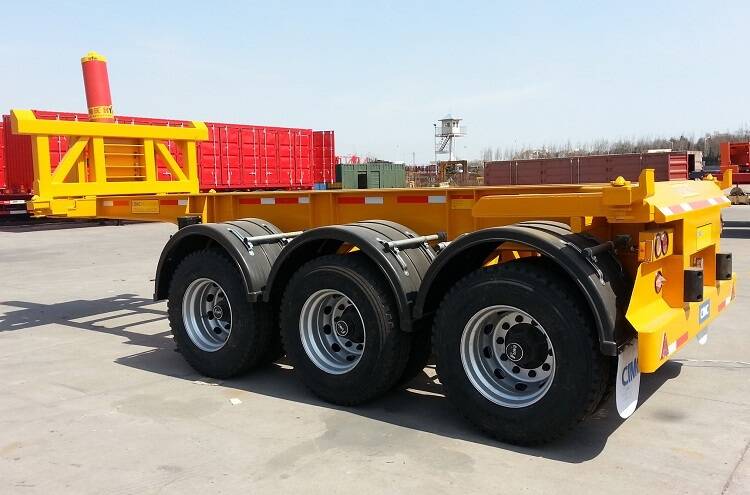

Type: CIMC 20ft tipper chassis trailer
Application: to carry 2*20ft container chassis
Axle: 3 *13 tons axles
Loading capacity: 60 tons
CIMC production the container trailer is mainly used trasport the container, the container tipper trailer can carry one 20 ft container,used for docks, harbors and other place. The steel structure of the frame adopts high-strength and high-quality steel and has a long service life. The trailer accessories all adopts domestic and aboard famous brand, this make the product increase long serivce life. Our trailer main beam used high-strength steel---Q345. Q345 steel's strength is 1.6 times that of ordinary steel frame, and the main beam adopts equal section design to achieve the best bearing effect.
CIMC can provide for customers 20 foot skeltal trailers, 40 foot skeleton conbtainer semi trailers, and you can tell us if you want other modle interlink trailers. And we can according to the customer requirements to produce.
Overall L*W*H: 6700x2500x2900mm
Load weight:40 tons ~70 tons
Axles: 3x13 tons / 14 tons / 15 tons /16tons / 20 tons
Landing gear: JOST
Kingpin: 50(2inch)#or 90(3.5inch)# bolted type
Suspension: Airbag / Mechanical / bogie suspenion
Brake system: Wabco
Electric system: 24V / 12V + LED lights
Accessory: spare tire carrie + tool box
Remark: we can supply different specification for different road condition
