Side Wall Trailer with Board

Flatbed Trailer with Side Walls:

The CIMC 3 axle sidewall trailers are widely used to transport container, pipe, steel, lumber, heavy equipment, and any other item that would be difficult to load into the back of a trailer.

The 3 axle Flatbed Trailer with Side Walls is mainly used for transporting steel, timber, stone and other cargo goods, The advantage of the sidewall trailer is that it can carry goods like super long, super wide and super high.it have wide applicability.

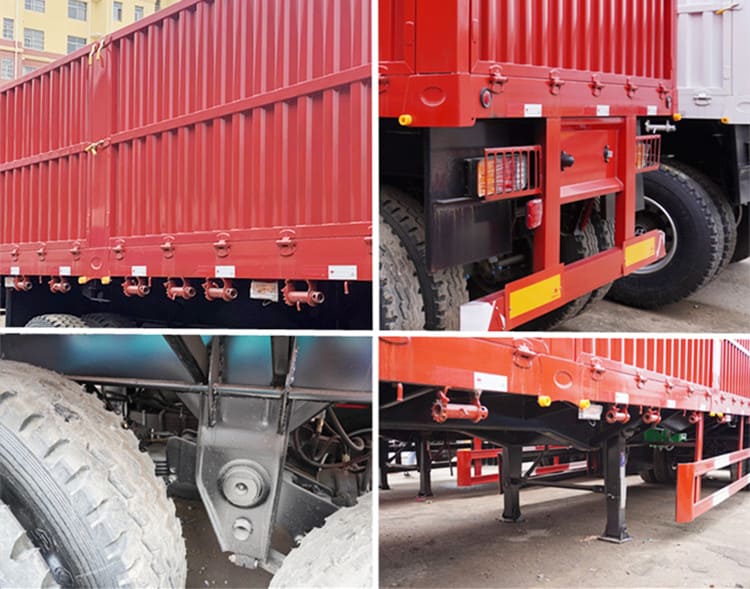

Triaxle with Boards Flatbed Trailer with Side Walls

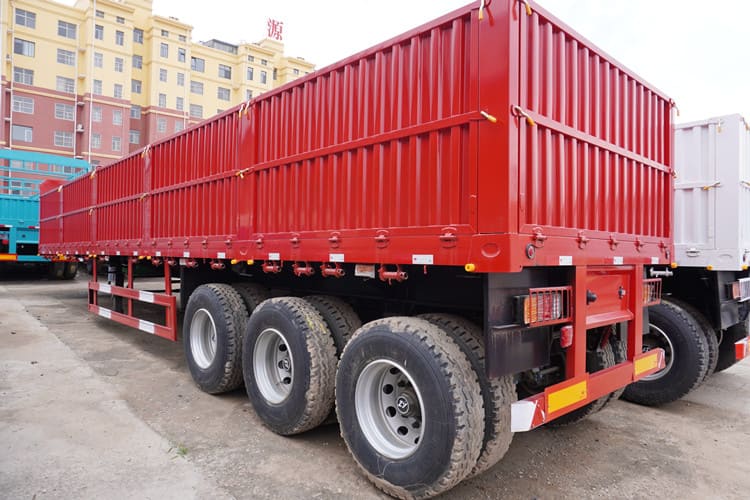

Triaxle with Boards Flatbed Trailer with Side Walls

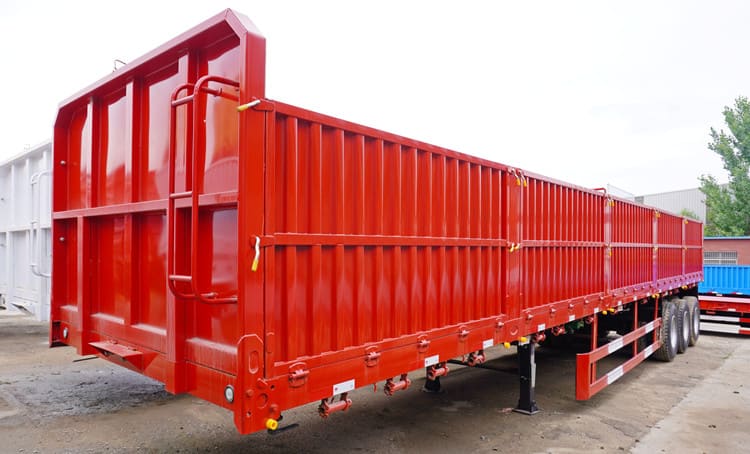

Triaxle with Boards Flatbed Trailer with Side Walls

Specification of side wall flatbed truck:

L*W: 12500mm*2500mm

Sidewall Height: 600mm

Max. Payload: <50T

Application: Coal/Cargo/Containers Loading

Material: Q345B Steel

Bottom Platform: 3mm-thick checkered plate

King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Support leg: JOST brand

Suspension: Airbag / Mechanical / bogie suspension

Axles: FUWA/BPW/CIMC/other

Tires: 12.00R22.5/315 80R22.5(Specially designed and for oversea markets)

Brake System: WABCO

Electrical System: 24-volt lighting system
