CIMC Tri Axle Trailer
CIMC Tri Axle Trailer

CIMC Tri Axle Trailer

Overall L*W*H: 12,500*2,500*1,530 mm

Payload: <60tons, customized

Landing Gear: JOST

Kingpin: 50(2inch)#or 90(3.5inch)# bolted type

Suspension: Mechanical suspension

CIMC Tri Axle Trailer Description:

CIMC Tri axle flatbed trailer can load 1*40ft container and also can transport 2*20ft containers when shipping a 20ft container separately that put it in the middle of the tri axle flatbed trailer. this kind of trailer mainly transporting container, what's more. It can also transport bags of chemical fertilizers, wood, steel bars, boxes and other more easily fixed goods.

CIMC tri axle trailer is the most popular model. According to the length, we can also offer the 45ft 48ft 52ft, 2axles/3axles/4axles, the capacity from 35 ton to 60 ton. For the types, we can also make the flatbed with side wall, side panel with fence, or with front board, or with Columns to load the logs.

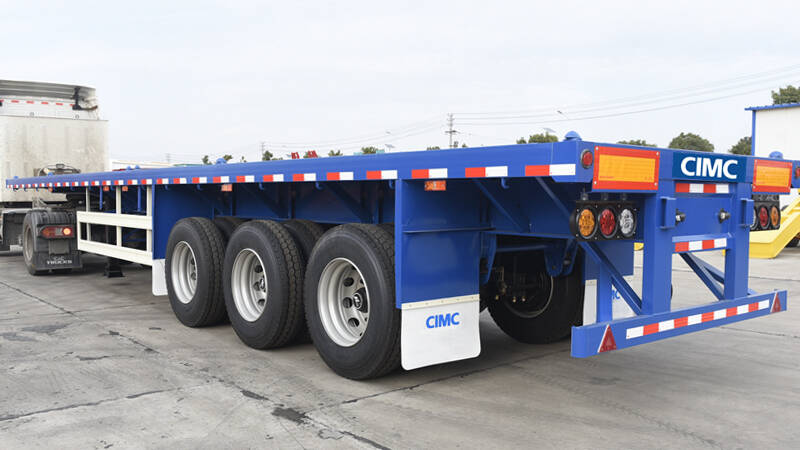

CIMC Tri Axle Trailer 40ft Container Flatbed For Sale

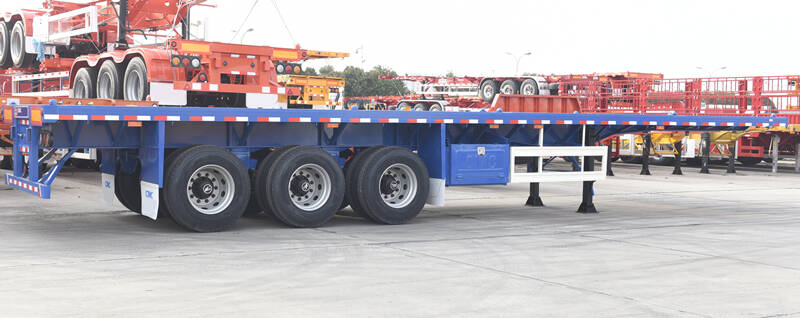

CIMC Tri Axle Trailer 40ft Container Flatbed For Sale

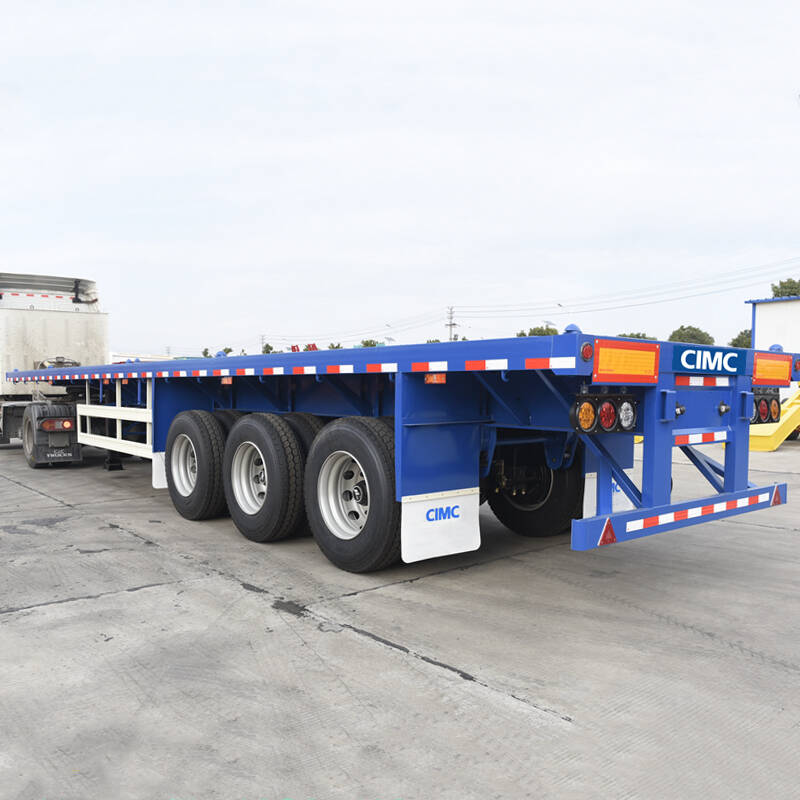

CIMC Tri Axle Trailer 40ft Container Flatbed For Sale



Specification:

Overall L*W*H: 12500*2500*1530mm

Payload: <60 tons, customized

Axles: 3 units, 13 tons/14 tons/15 tons/16tons/20 tons (Fuwa/BPW /CIMC or other Chinese famous brands)

Tire: 12 units, 12.00R20/11.00R20/12R22.5/385/65R22.5, optional

Landing gear: JOST

Kingpin: 50(2inch)#or 90(3.5inch)# bolted type

Suspension: mechanical/airbag/bogie suspension

Brake system: WABCO brake system with dual brake chambers and emergency brake valve

Container lock: 12 pcs

Accessories: Tool box, spare tire carrier
