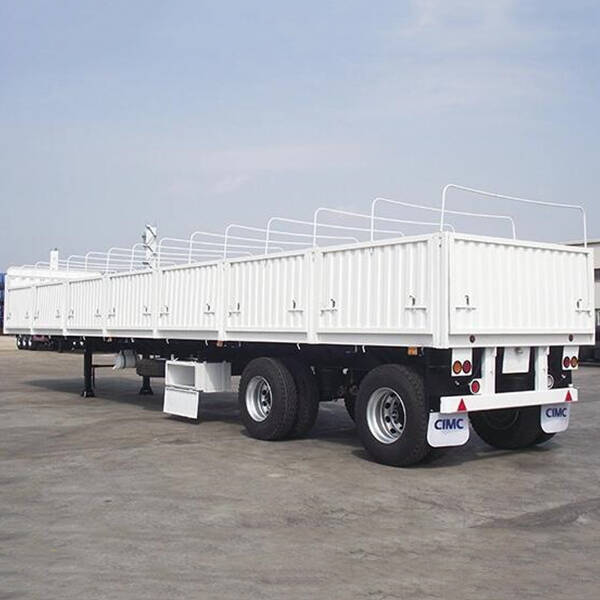

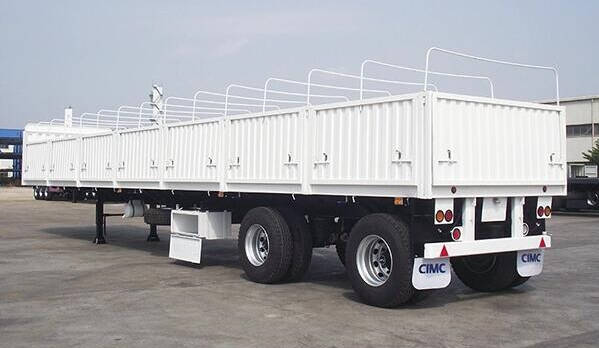

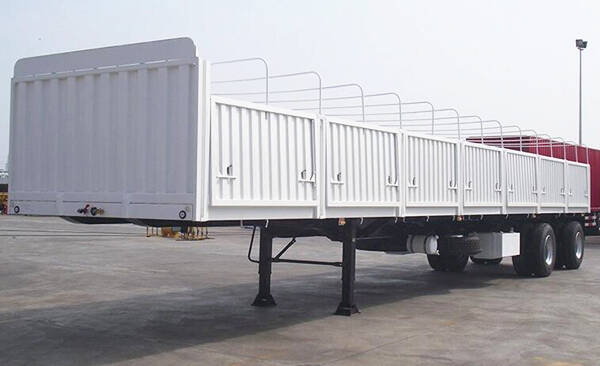

CIMC Tri-axle Dropside Trailer

Product description:

CIMC tri-axle dropside trailer are widely used to transport bulk cargo , pipe , steel , and any other item that would be difficult to load into the back of a trailer.

Tri- axle sidewall trailer is mainly used for transporting steel, timber, stone and other cargo goods ，The advantage of the sidewall trailer is that it can carry goods like super long, super wide and super high.it have wide applicability

Details of tri-axle dropside flatbed trailer:

Advantages:

1> Light tare weight design

2> Large load capacity

3>Thicken side wall plates ensures the cargo box never out of shape

Specification:

L*W: 12500mm*2500mm

Sidewall Height: 800mm

Max. Payload: <40T

Application: Coal/Cargo/Containers Loading

Material: Q345B Steel

Bottom Platform: 3mm-thick checkered plate

King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Support leg: JOST brand

Suspension: Airbag / Mechanical / bogie suspension

Axles: FUWA/BPW/CIMC/other

Tires: 12.00R22.5/315 80R22.5(Specially designed and for oversea markets)

Brake System: WABCO

Electrical System: 24-volt lighting system
