Fence semi trailer for sale is widely used in logistics and transportation for transporting various types of cargo due to its versatility, safety and efficiency.
Fence semi trailer for sale prevents cargo from falling during transport and reduces the risk of accidents. It is ideal for bulk or stacked cargo (e.g. building materials, machinery and equipment, pallets).
Fence semi trailer for sale is suitable for building materials (rebar, pipes, wood), agricultural products (hay bales, livestock feed), industrial equipment and general cargo. Fence semi trailer for sale is suitable for transporting large, irregularly shaped or tall cargo that cannot be loaded into a standard box trailer.
Fence semi trailer for sale is made of high-strength steel or aluminum for durability. It is highly resistant to weather (rain, wind) while maintaining ventilation.

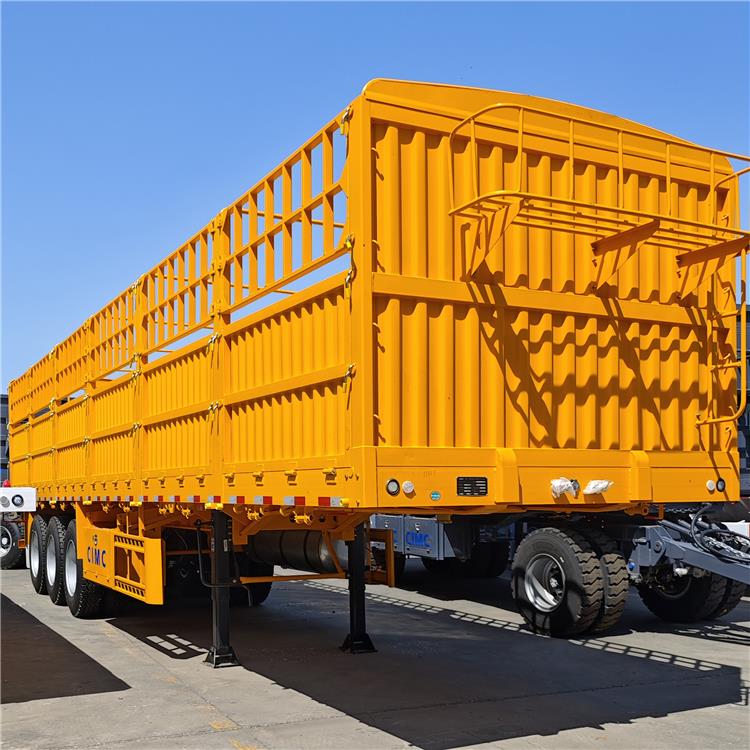

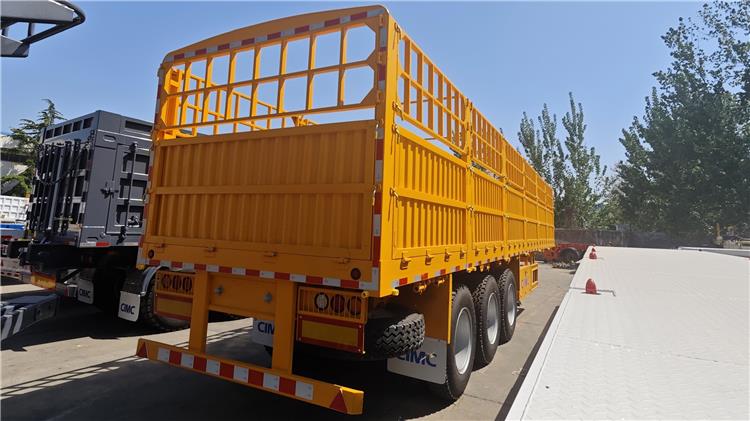

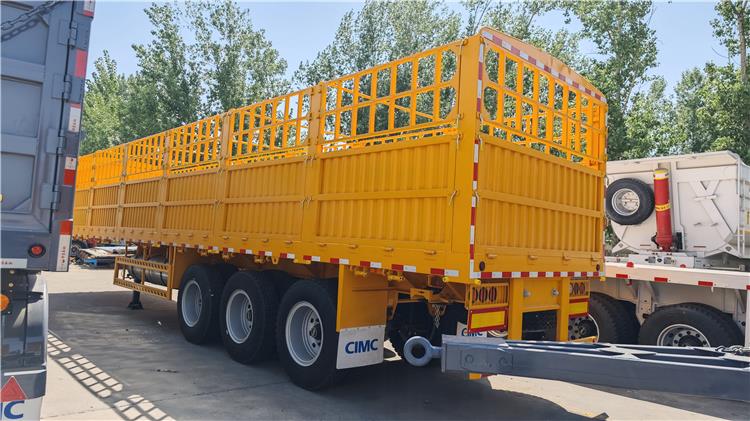

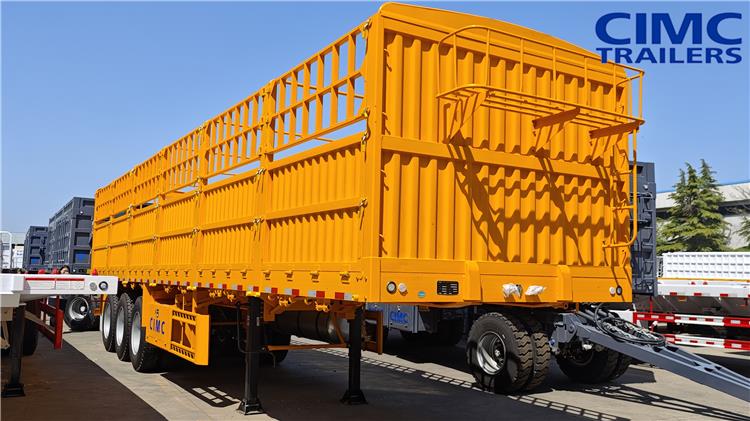

Tri Axle 80 Ton Fence Semi Trailer for Sale in Senegal
Tri Axle 80 Ton Fence Semi Trailer for Sale in Senegal
Tri Axle 80 Ton Fence Semi Trailer for Sale in Senegal
Tri Axle 80 Ton Fence Semi Trailer for Sale in Senegal
Tri Axle 80 Ton Fence Semi Trailer for Sale in Senegal

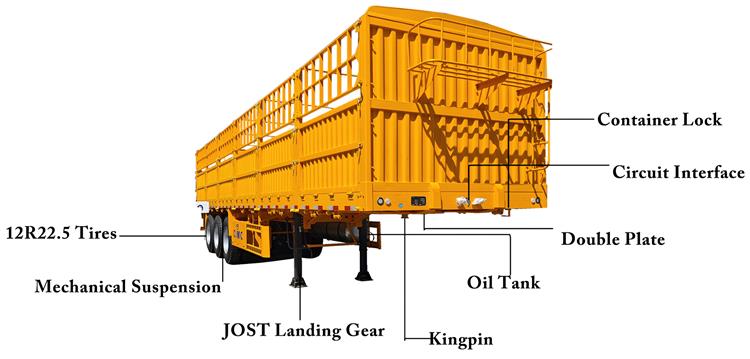

Dimension: 12490mm*2490mm*2000mm
Loading capacity: 60 ton

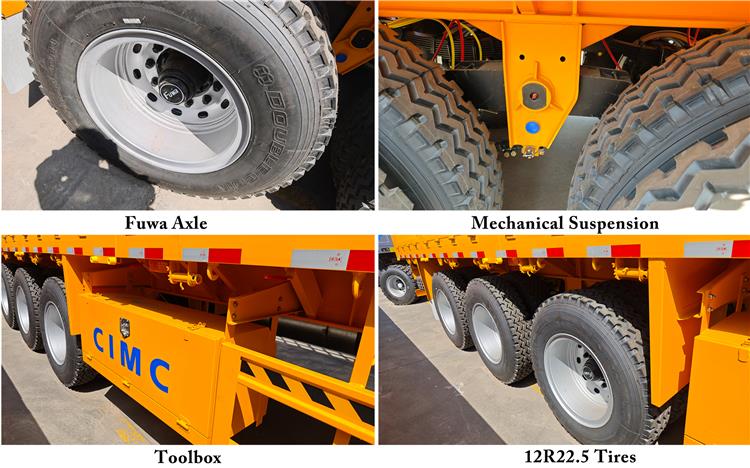

Axles: 3 axles, Fuwa brand

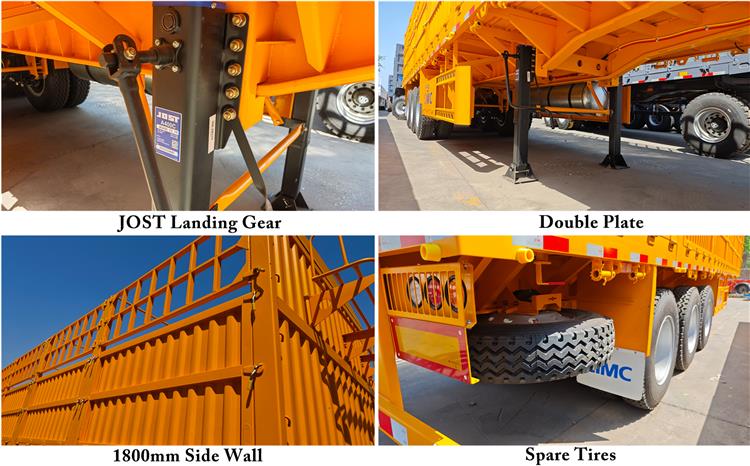

Sidewalls height: 1800mm
Suspension: Heavy duty mechanical spring suspension
Tire: 12R22.5, 12 units
Landing Gear: JOST brand
TITAN Fence semi trailer for sale uses low-carbon high-strength alloy steel Q345 to manufacture the main beam, and we use automatic submerged arc welding process to weld the main beam. Since there is no seam between the upper, middle and lower plates of the beam, the integrity of the main beam can be ensured, and the beam is more durable, with higher load-bearing capacity and a service life of more than 10 years.
The lower plate of the gooseneck part of the main beam of the fence semi trailer for sale adopts a reinforced double-plate structure, and the middle beam part adopts a double-plate structure. The deformation range of the trailer is smaller when overloaded, which is more suitable for use.
The side beam thickness of the fence semi trailer for sale is 160 mm channel steel, the cross beam is 100 mm channel steel, and all the cross beams are supported by oblique support frames. The spacing between these frames does not exceed 500 mm, which ensures that the trailer is not easily deformed.
The bottom plate of the fence semi trailer for sale is 3 mm thick and is a diamond plate. It is thicker than the 2.5 mm or 2 mm thick bottom plates produced by other manufacturers.
We set up 6 bottom beams under the bottom plate, which effectively ensures the flatness of the bottom plate, so that the bottom plate will not be easily deformed even after long-term use.
Fence semi trailer for sale uses powder spraying and baking paint technology, which has strong adhesion, brighter colors, and costs twice as much as ordinary acid paint, but it will not peel off after more than five years of use.
Fence semi trailer for sale uses the latest high-strength square tube 5*5 model, which has high strength and does not expand. Even after deformation, it will quickly return to its position. Ordinary square tubes are damaged immediately after being touched during unloading. High-strength square tubes are extremely strong and collision-resistant.
The columns of the fence semi trailer for sale are equipped with horizontal tie rods, which are removable to prevent deformation and expansion. The columns are thickened, and the plugs and plug warehouses are bent with 8mm thick steel to ensure absolute firmness! And with fastening column bolts to prevent loosening. The fence is automatically welded by robots, combining beauty and firmness
