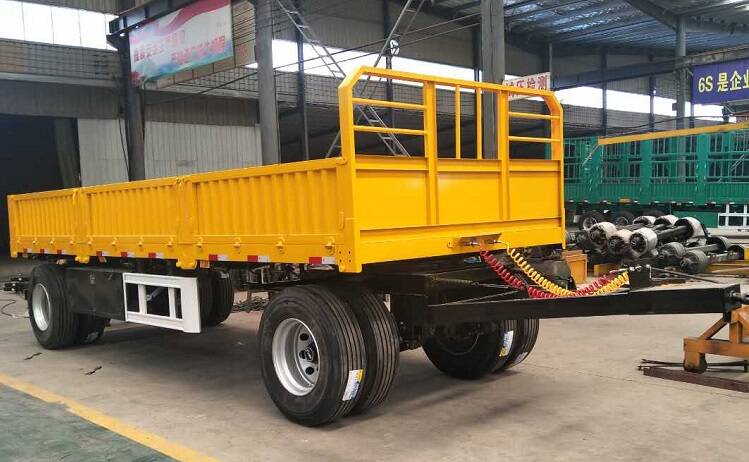

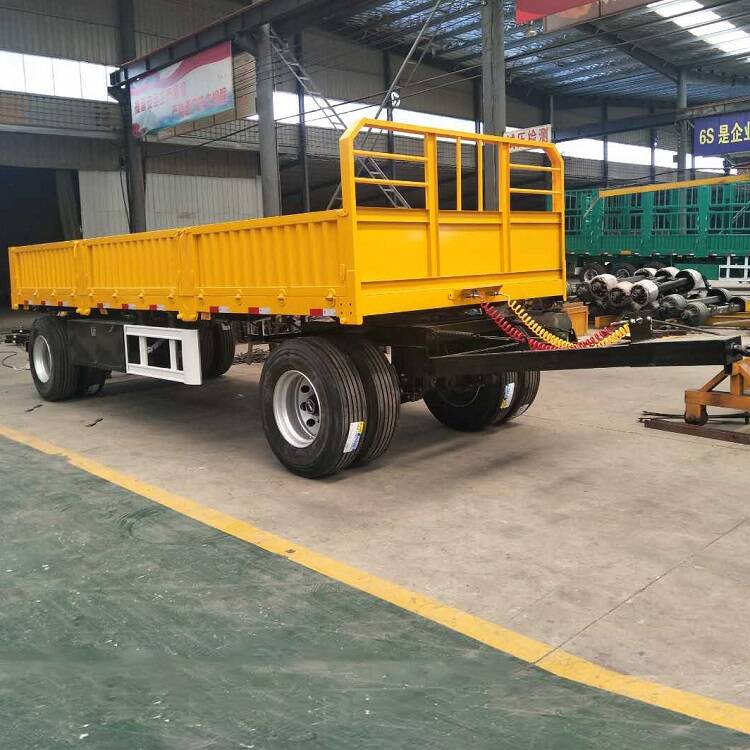

Product:CIMC draw bar trailer with side wall
Axles:2 * 13 tons axles
Load weight:25 tons
Application:carry bulk cargo
CIMC draw bar trailer maximises the cargo areas that are available under current legislation . When combined with a demountable system , the draw bar trailer offers unbeatable flexibility for the fleet operator – a flexibility that could dramatically improve the effectiveness of a transport operation and which may mean the difference between profit and loss to the company .
CIMC has utilised their long experience in the design and manufacture of draw bar trailers to ensure that the draw bar trailer is matched to the prime mover to maximise payload and body size .In terms of product quality, we adopt high quality material， accessories and configuration adopt domestic and aboard famous brand，this makes product increase longer serive life.
1>Trailer box adopts triangle type reinforced structure makes the trailer box no out of shape.
2>Trailer frame adopts minging truck frame design makes the tractor trailer with a large load capacity.
3>Quality top list paint and europe standard painting makes a beautiful outlook.
Overall dimension: 4800*2500*2100（customized）
Loading capacity: 25 T and customized
Axles of the trailer: 13T/16T ,FUWA or BPW brand
Breaking valve: WABCO breaking valve
Material of the main beam: Q345 high strength steel
Landing gear: JOST C200
King pin: 50#
