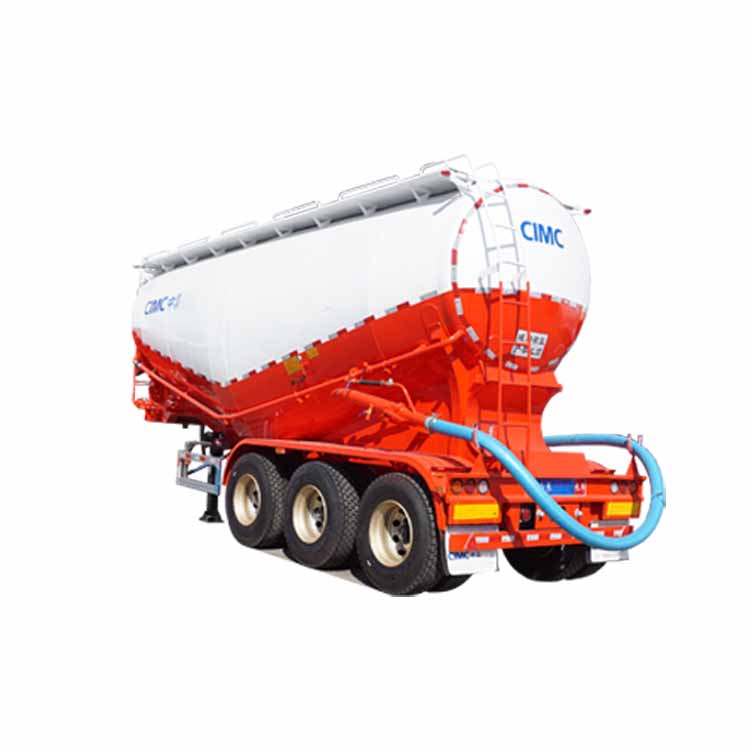

35cbm Powder Tanker for Sale

CIMC 35cbm Powder Tanker for Sale Product Description:

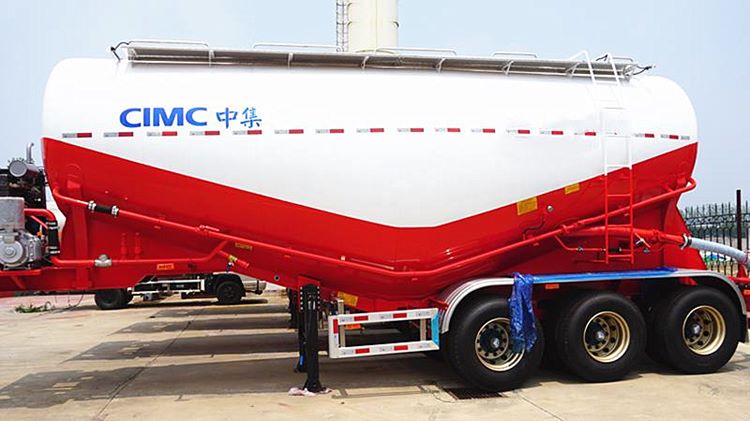

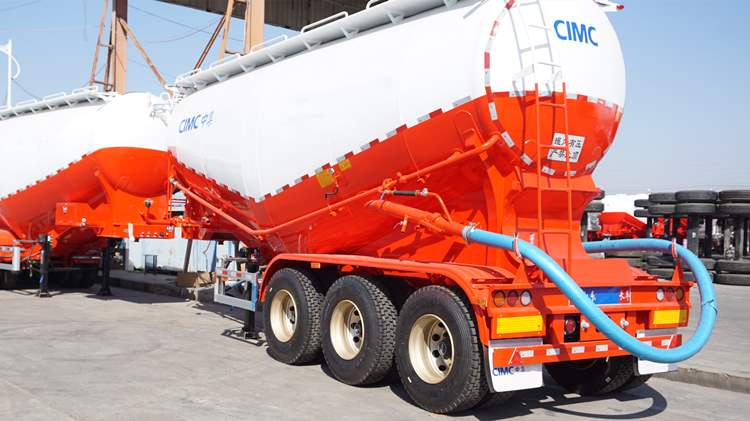

Cement tank trailer is a type of trailer equipped with a bulk tanker to storage cement powder and other dry powder materials like fly ash, lime powder, mineral powder particles smaller than 0.1mm in diameter.

Specification:

Brand: CIMC bulk powder tankers

Total Volume (m³): 25 cbm ~60 cbm

Tanker Body Material: 5mm or 6mm/ high strength wear-resistance steel

Diesel Engine: WEICHAI 4105 Brand

Compressor: BOHAI, FUDA 12m3/14 m3or other brands

Manhole Cover: Carbon steel or Aluminum 500mm(Diameter)

Discharging Valve: Diameter is 3 or 4 inch

Main Beams: Welded design, High Strength Steel

Axle: 3 axles, 14 ton

Suspension: Mechanical suspension

Advantages:

SPECIAL DESIGN

This type of tank design has high strength, good rigidity, pressure bearing and performance ability. The tank body is two chambers in one vessel structure.

TANK LAYOUT

The special layout is reasonable, can effectively shorten the loading and unloading time, and improve the volume utilization rate of the tank body. It can also reduce the residue rate.

TOP OF THE TANK

There are two inlet-ports at the top of the tank body. On the one hand, we can open the manhole cover to speed up the loading of material into the tank. On the other hand, it is convenient for operator to enter and exit when the tank needs an overhaul.

BOTTOM OF THE TANK

Under the tank, there is an outlet that enable the operator to remove the residual cement in the tank easily.
