CIMC 3 Axle 40ft Curtain Side Semi Trailer

CIMC 3 Axle 40ft Curtain Side Semi Trailer

15000 USD

Product: CIMC 40ft Curtainsider for Sale

Type: CIMC Curtain trailer

Axles: 3 axles

Load weight: 40 tons

Side: made of reinforced PVC curtains

SKU: CIMC 3 Axle 40ft Curtain Side Semi Trailer
GTIN: 6975766101831
MPN: ZJV9511003
Brand: CIMC

Product Description:

CIMC Curtain Side Trailer is mainly designed to provide security and aerodynamics to the trailer, and to protect the load from the weather. The curtains are kept tight by buckles down the side which hook under a rail.

Large bags and other types of loads can be carried if secured properly. Basically, anything that can be loaded from the side that is contained within itself or can be contained using dunnage or by other means.

Some CIMC Curtain Side Trailer also allow loading from the top and can be used to carry woodchips and other loose freight.

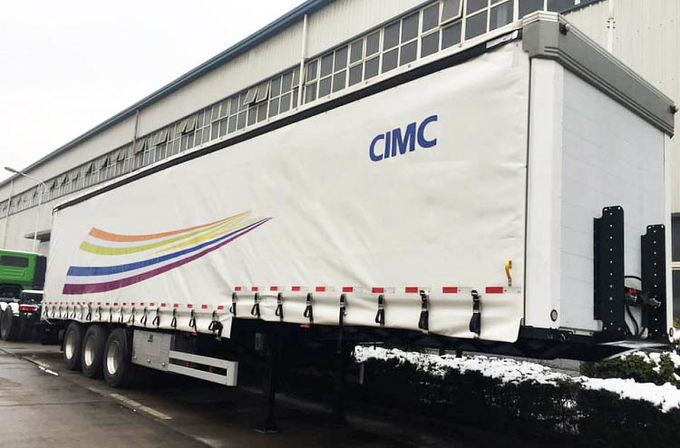

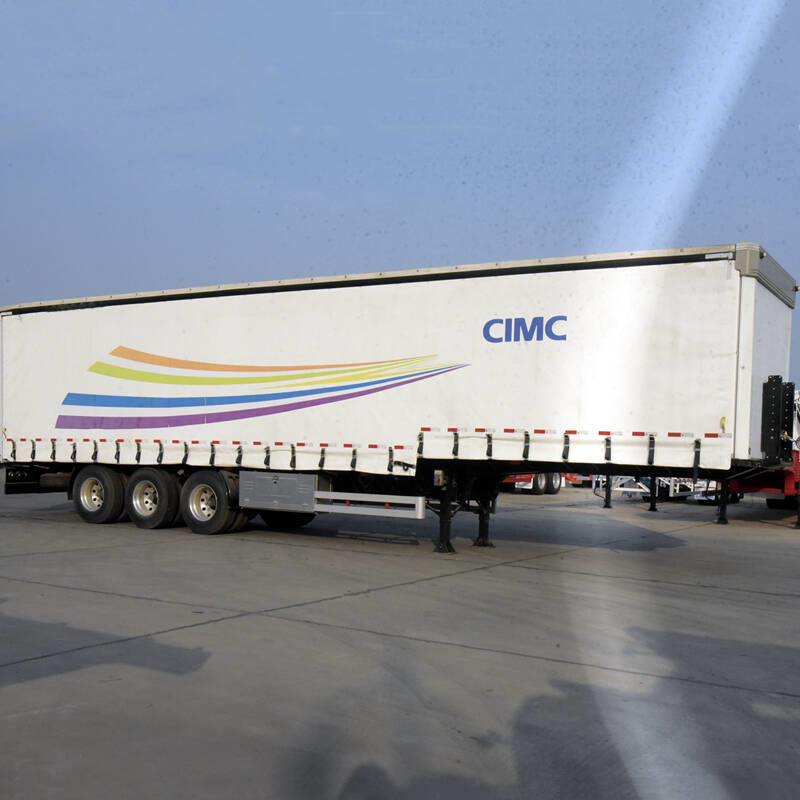

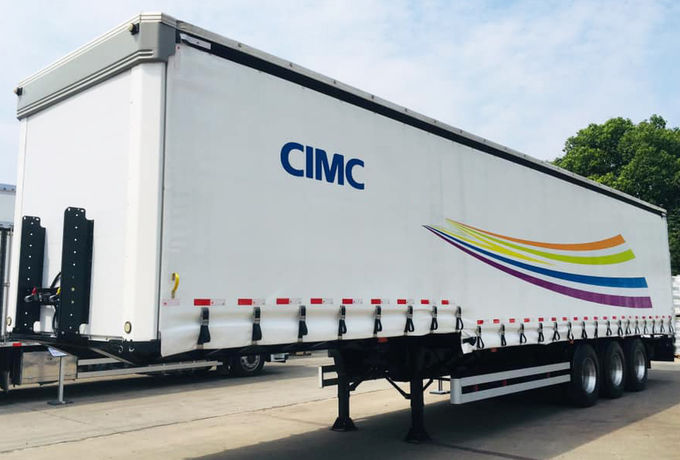

CIMC 3 Axle 40ft Curtain Side Semi Trailer for Sale

CIMC 3 Axle 40ft Curtain Side Semi Trailer for Sale


Specification of curtain side trailer:

Dimension(mm): 12400x2500x3600mm(The height can be adjusted)

Tare Weight: 7,500kg(+/- 5%)

Payload: 40T

Axle: 3 axles

Tire: 12 units

Suspension: mechanical spring suspension

Landing Gear: JOST

Kingpin: 3.5”JOST, exchangeable

Brake System: WABCO brake valve.

Electrical System: 24V, LED lamp


How to use a Curtain Side Trailer :

1. Don’t open a Curtain Side Trailer which is bulging, freight could have moved and might fall on you. Open it from the back or the opposite side to check.

2. In strong or gusty winds, open the lee side of the curtain side trailer first (the side that’s not exposed to the wind).

When opening any curtain in gusty winds, take care as the wind can take the curtain pole and swing it into your head, knocking you out.

3. Loose buckles can flap around and hit passing cars, make sure all buckles are tight.

4. Make sure you check the rating and the expiry date on any curtains to make sure they will be fine for what you are carrying.

5. Make sure you have enough load securing restraints available to restrain the load properly.

6. Watch where you are going while you’re walking backwards as you slide the curtains back.
