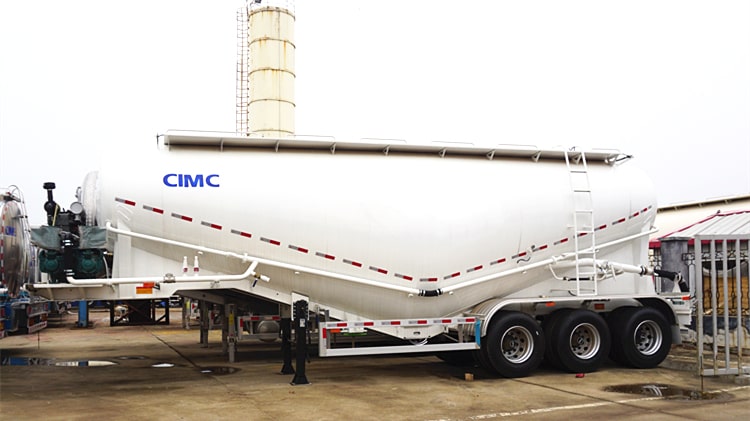

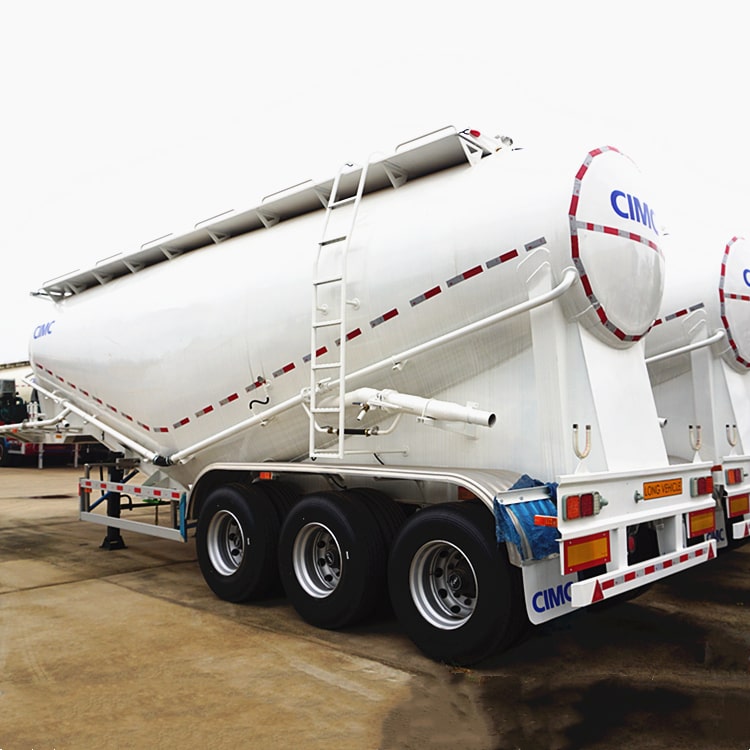

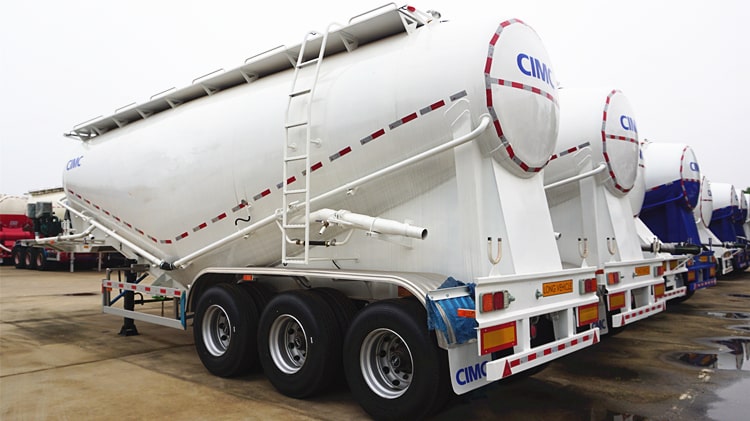

Brand: CIMC 33 Axle 50Ton Cement Bulk Tanker Trailer
Total Volume (m3): 50ton
Diesel Engine: WEICHAI 4105 Brand
Compressor: BOHAI
Axle:3 axles, 13 ton
The 3 Axle 50Ton Cement Bulk Tanker Trailer for powder and granular materials, the tank body adopts the V-shaped filling and leveling structure, and the latest fluidized structure. It has the characteristics of large loading volume, low center of gravity, small residual material, simple structure, fast discharge speed, etc., which is convenient for operation and maintenance.
Dimension:10000*2500*4000 mm
Tank Body
Tank thickness: 4 mm
Front & end plate: 4 mm
Tank rated pressure: 0.2Mpa
Discharging System
Diesel Engine: Model 4102 Diesel
Air Compressor: 12 m³ one unit double cylinders compressor
Discharging valve: 4 inch butterfly valve
Discharging pipe: 1pcs, 6m/each
Manholes 2 pcs
Trailer Chassis
Main Beam: Welded design,
Axles: 3 axles
Landing gear: 28T
Kin pin: 3.5 inch high tensile bolt-in king pin
Suspension: Mechanical suspension with 10 layers leaf spring
Tire: 12.00R22.5 ,
Braking system: WABCO emergency valve;
Electrical system:
Voltage: 24V
Tool box & tire carrier: One tool box , 2 pieces tire carrier
Light & reflector: Rear light, rear reflector, turn indicative light, side reflector,fog lamp,number plate light
