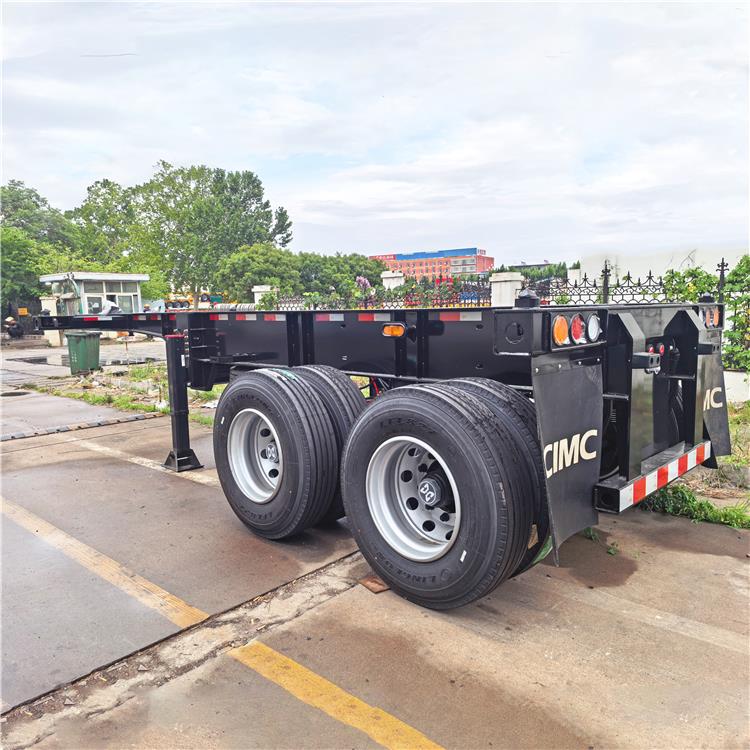

2 Axle 20ft Container Chassis

CIMC Container Chassis Trailer Price: 8500 USD

2 Axle 20ft container chassis trailer is a classic and highly efficient model in container logistics transportation. 2 Axle 20ft container chassis trailer is specially designed for 20ft standard containers or Tank Container, featuring lightweight design, high strength, and flexible operation.

2 Axle 20ft container chassis trailer frequently operates between ports, container yards, and terminal warehouses, performing fast pickup and delivery transportation of 20ft shipping containers. 2 Axle 20ft container chassis trailer is suitable for logistics distribution businesses where road weight limits are strict and only one 20ft standard container needs to be transported per trip.

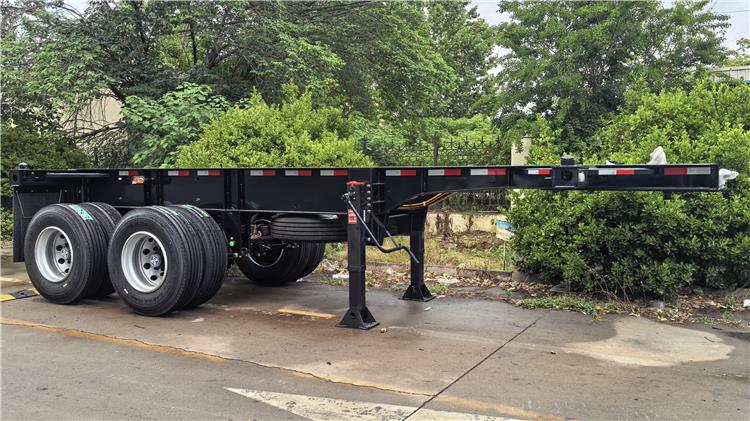

CIMC 2 Axle 20ft Container Chassis for Sale In Zambia

CIMC 2 Axle 20ft Container Chassis for Sale In Zambia

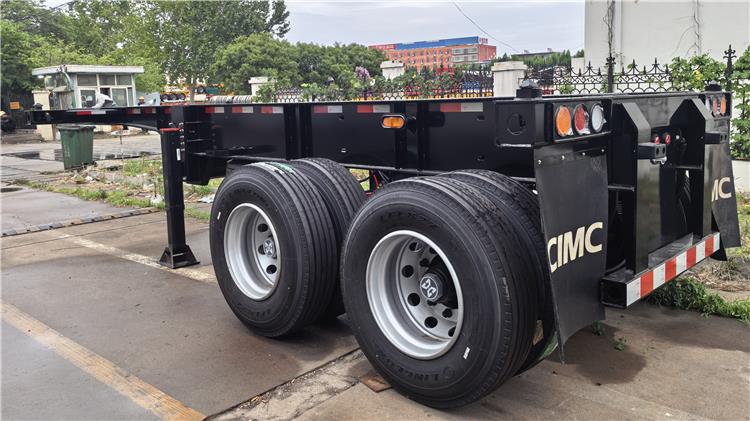

CIMC 2 Axle 20ft Container Chassis for Sale In Zambia

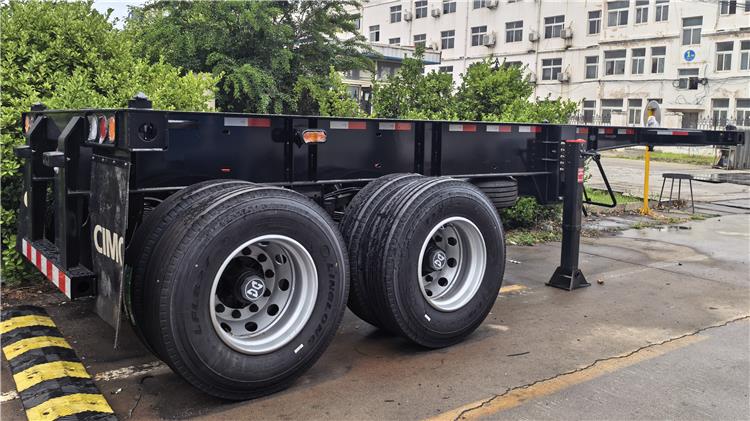

CIMC 2 Axle 20ft Container Chassis for Sale In Zambia

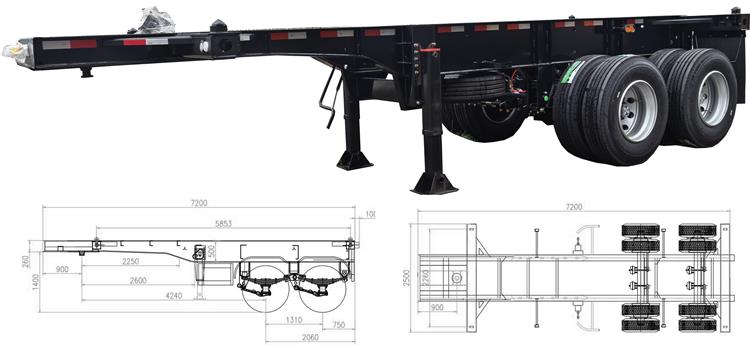

Specification of Container Chassis Trailer

Dimension(mm): 7500x2500x1500mm

Loading capacity(ton): ≤60T

Axles: 2 axles, 13T/16T ,FUWA/ BPWBrand

Tire: 8 units, 12.R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

Advantage of CIMC Trailer

2 Axle 20ft container chassis trailer is widely used for road transportation and multimodal transportation of 20ft ISO Tank Container carrying chemical liquids, liquefied gases, and other materials. In some overseas markets (such as Latin America and Africa), by installing a rear towing fifth wheel (Dolly System), it can realize single tractor pulling double trailers (B-Double) transportation, greatly improving transportation efficiency per trip.

Compared with the flatbed container semi trailer (Flatbed), 2 Axle 20ft container chassis trailer eliminates the floor structure, significantly reducing the overall vehicle weight (usually around 3.5 tons to 3.8 tons). 2 Axle 20ft container chassis trailer uses high-strength steel (such as T700 or Q345B) welded main beams, which are not easy to deform or crack under heavy loads and rough road conditions, making it especially suitable for export markets with complex road conditions such as Africa and Southeast Asia.

2 Axle 20ft container chassis trailer is equipped with 4 standard ISO locks (twist locks / locking heads). Once the container is placed and locked, it can be firmly secured. The loading and unloading process can be fully automated or semi-manual, greatly reducing waiting time and operation time at terminals.

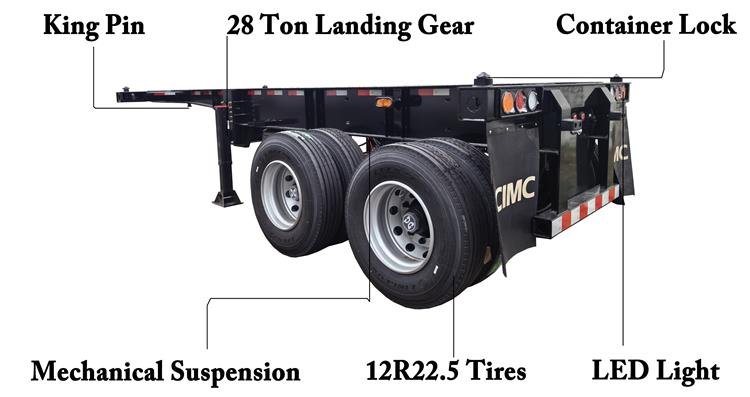

The key components of 2 Axle 20ft container chassis trailer adopt internationally recognized brands (such as JOST landing gear and kingpin, FUWA or BPW axle, WABCO valve). These parts are easy to purchase, making overseas after-sales maintenance more convenient.

The main beam material of 2 Axle 20ft container chassis trailer is high-strength steel (Q345B or high-strength steel T700). 2 Axle 20ft container chassis trailer adopts submerged arc automatic welding technology for the axle. Axles can be FUWA, BPW, or CIMC self-produced axles.

Tire: 12R22.5 tubeless tires, 8 pieces in total (plus 1 spare tire).

Suspension System: Reinforced mechanical leaf spring suspension (usually 8-piece or 10-piece leaf springs), optional air suspension.

Locks: 4 ISO standard twist locks.

Landing Gear: JOST two-speed synchronized landing gear (dynamic load capacity 28 tons, static load capacity 80 tons).

Kingpin: 2-inch (50#) or 3.5-inch (90#) JOST bolt-on kingpin.

Brake System: Dual-line air brake system with WABCO relay valve, ABS available according to customer requirements.

CIMC 2 Axle 20ft container chassis trailer usually undergoes shot blasting rust removal treatment before delivery, followed by zinc-rich primer and polyurethane topcoat spraying. This anti-corrosion coating effectively protects the trailer against salt spray corrosion during sea transportation and the humid, high-salt environment of ports, ensuring that the chassis remains rust-resistant for long-term operation.
