Tri axle Platform Semi Trailer
Tri axle Platform Semi Trailer

Tri axle Platform Semi Trailer

Overall L*W*H:12,500×2,500×1,530 mm

Payload:40-60 tons

Landing gear: JOST

Kingpin:50(2inch)#or 90(3.5inch)# bolted type

Suspension: Mechanical

CIMC tri axle flatbed trailer description

CIMC Platform semi trailer can load 1x 40ft container and also can transport 2x20ft container, When shipping a 20ft container separately that put it in the middle of the 40 ft flatbed trailer .this kind of Platform semi trailer mainly transporting container, what's more, It can also transport bags of chemical fertilizers, wood, steel bars, boxes and other more easily fixed goods.

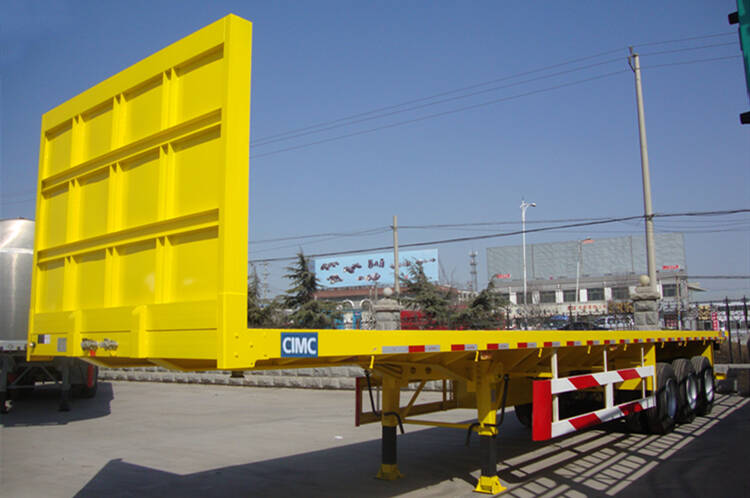

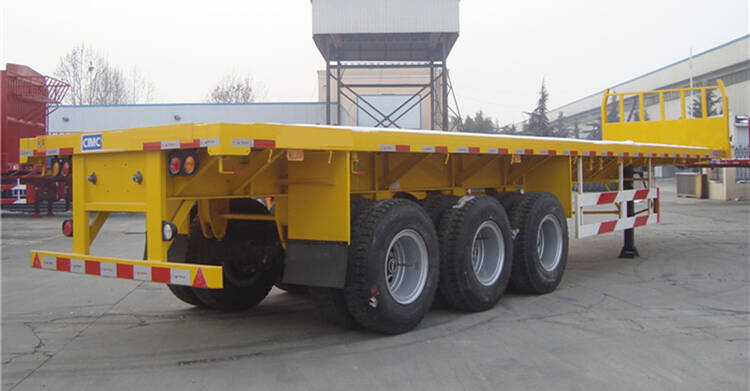

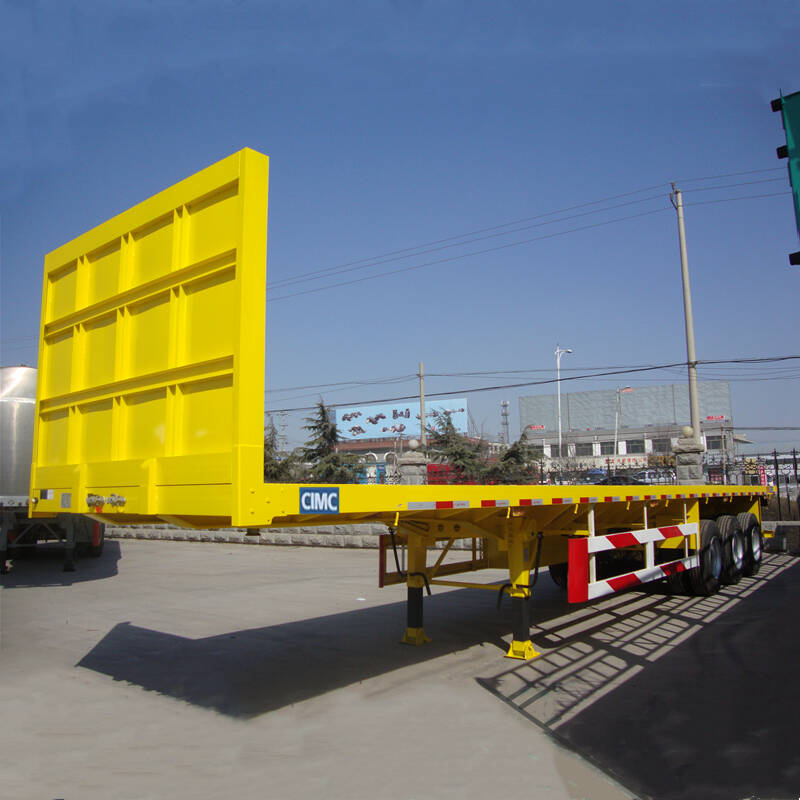

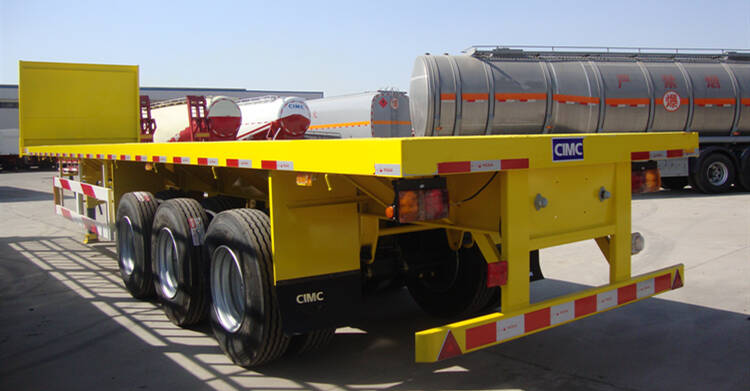

Tri axle platform semi trailer

CIMC Platform semi trailer

Tri axle platform semi trailer

CIMC 40 ft flatbed trailer for sale

Tri axle platform semi trailer



Specification:

Overall L*W*H: 12400*2500*1550mm

Payload: 60 tons

Axles: 13 tons / 14 tons / 15 tons /16tons / 20 tons ( Fuwa/BPW /CIMC or other Chinese famous brand )

Tire: 12.00R20 / 11.00R20 / 12R22.5 / 385/65R22.5, optional

Landing gear: JOST

Kingpin: 50(2inch)#or 90(3.5inch)# bolted type

Suspension Mechanical: / airbag / bogie suspension

Brake system: WABCO brake system with dual brake chambers and emergency brake valve

Container lock: 12 pcs

Accessories: Tool box , spare tire carrier



CIMC flatbed trailer Advantages:

1. The beam is integrated,Not spliced.

2. Flatbed container trailers adopt advanced design concepts. After fully understanding and analyzing the transportation environment in different countries.

3. Paint: Polyurethane paint and wax trailer.

4. CIMC 40 tons logistics trailer for sale adopts high strength steel material to manufacture the flatbed trailer, it can make the flatbed trailer have a higher loading capacity and a longer service life
