Size: 10000*2500*4000 mm
Material: Steel/Aluminum Alloy
Suspension: Mechanical / Air Suspension
King pin: 2"(50mm)or3.5"(90mm) JOST
The working principle of the dry bulk trailer: The power of the dry bulk tanker engine is transmitted to the air compressor through an additional transmission device composed of a gearbox power take-off and an additional transmission shaft. The compressed air generated by the air compressor enters the tank and passes the powder material through the fluidization device Fluidization, with the help of the pressure difference between the inside and outside of the tank, the powder material is transported along with the air to the designated location outside the tank along the discharge line.
The main volumes of cement tanker trailer are 25/30/35/40/55/65 cubic meters. bulk cement tanker trailers are V-shaped and W-shaped, and the materials are carbon steel, stainless steel, and aluminum alloy.
CIMC 40cbm dry bulk tanker for sale

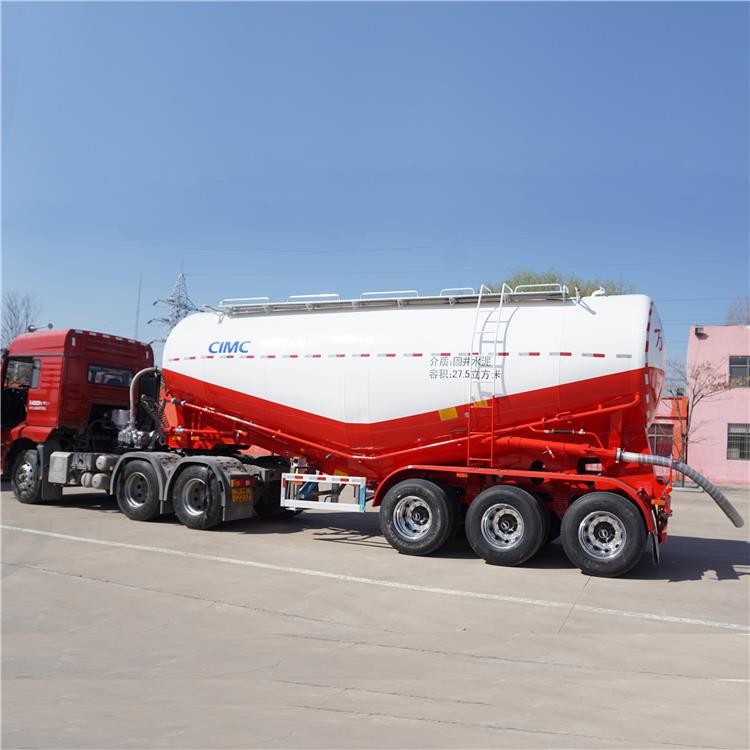

CIMC 3 axle bulk cement tanker trailer
The dry bulk trailer discharge pipeline is mainly composed of a suction port, a butterfly valve, a discharge steel pipe, a discharge pipe joint, and a discharge hose.
Dry bulk tanker Discharge hose: Abrasion-resistant steel discharge hose is used, with a diameter of 100mm.Butterfly valve: It is sealed by a rubber sealing ring, and the rubber ring can be replaced after being worn out, without replacing the entire butterfly valve, which can reduce the use cost.
An anti-seismic pressure gauge is installed on the tank body to monitor the pressure change in the tank and to guide the discharge.Dry bulk cement tanker Auxiliary devices: including side protection, rear protection, wheel cover, ladder, etc.
| Dimension: | 10000*2500*4000 mm |
| Tank Body | |
| Tank thickness | 4 mm |
| Front & end plate | 4 mm |
| Tank rated pressure | 0.2Mpa |
| Discharging System | |
| Diesel Engine | Model 4102 Diesel |
| Air Compressor | 12 m³ one unit double cylinders compressor |
| Discharging valve | 4 inch butterfly valve |
| Discharging pipe | 1pcs, 6m/each |
| Manholes | 2 pcs |
| Trailer Chassis | |
| Main Beam | Welded design, |
| Axles | 3 axles |
| Landing gear | 28T |
| Kin pin | 3.5 inch high tensile bolt-in king pin |
| Suspension | Mechanical suspension with 10 layers leaf spring |
| Tire | 12.00R22.5 , |
| Braking system | WABCO emergency valve; |
| Electrical system | Voltage: 24V |
| Tool box & tire carrier | One tool box , 2 pieces tire carrier |
| Light & reflector | Rear light, rear reflector, turn indicative light, side reflector,fog lamp,number plate light |
