Size: 10000*2500*4000 mm
Suspension: Mechanical / Air Suspension
Landing gear: JOST optional
King pin: 2"(50mm)or3.5"(90mm) JOST
CIMC silobas trailer adopts a three-dimensional design scheme. Three-dimensional design refers to the use of a computer to represent the actual shape of a product as a three-dimensional model. In this way, the three-dimensional model can contain more actual structural features, which can truly reflect the construction and processing of the actual product by simulating the bulk cement tanker trailer.
At the same time, using CAE force analysis, using computer-aided analysis of the structural mechanical properties of the bulker truck transporter tank body, and optimize the structural performance, so that the entire tank body force is more reasonable, so that the tank body can have a longer service life.
CIMC cement tank trailer adopts the latest advanced automatic splice plate machine to weld the steel plate with double-side, that ensure the high quality of welding seams, long service life and good appearance in tank body, long service life.
CIMC 40cbm cement transport vehicle for sale

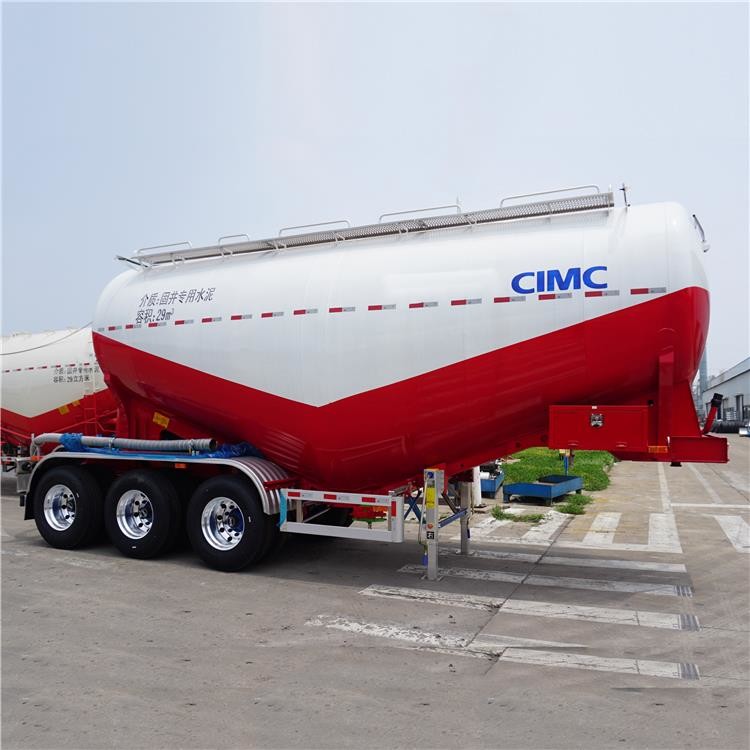

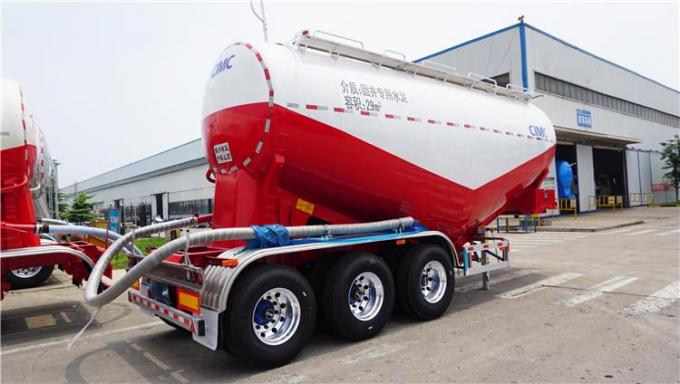

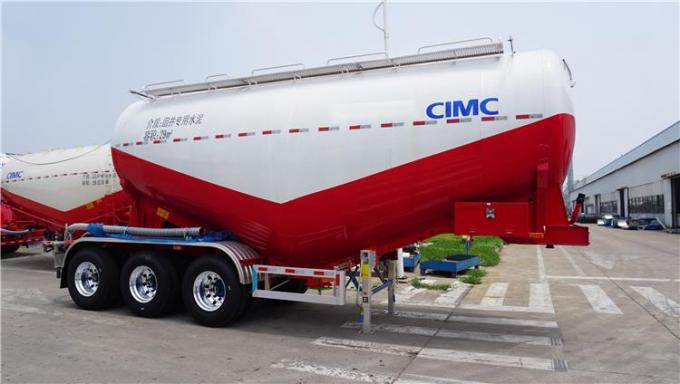

CIMC 3 axle bulk cement tank trailer

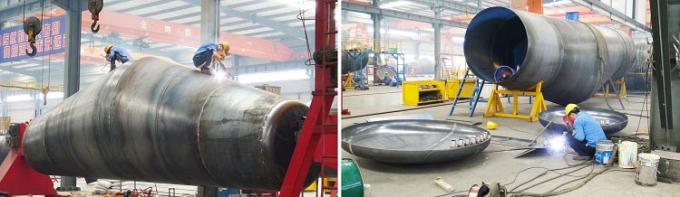

After the design of the tank is completed, actual manufacturing work is carried out. CIMC cement tank truck adopts laser cutting and cutting, which can improve the precision to 0.01mm. The mirror cut can be formed at one time, which can reduce the cutting hot-melt area as much as possible, so that the steel plate elements are unchanged, the rigidity will not be lost and the stress concentration will not occur.
Bulk cement tanker trailer is controlled by an automatic numerical control plate rolling machine, the cylinder body is formed at a time, the inside of the plate will not be damaged, and the forming quality is stable and reliable.
CIMC silobas trailer adopts polyurethane to paint the cement tank trailer, this kind of paint has high adhesion, high color rendering index, the color is beautiful.
| Dimension: | 10000*2500*4000 mm |
| Tank Body | |
| Tank thickness | 4 mm |
| Front & end plate | 4 mm |
| Tank rated pressure | 0.2Mpa |
| Discharging System | |
| Diesel Engine | Model 4102 Diesel |
| Air Compressor | 12 m³ one unit double cylinders compressor |
| Discharging valve | 4 inch butterfly valve |
| Discharging pipe | 1pcs, 6m/each |
| Manholes | 2 pcs |
| Trailer Chassis | |
| Main Beam | Welded design, |
| Axles | 3 axles |
| Landing gear | 28T |
| Kin pin | 3.5 inch high tensile bolt-in king pin |
| Suspension | Mechanical suspension with 10 layers leaf spring |
| Tire | 12.00R22.5 , |
| Braking system | WABCO emergency valve; |
| Electrical system | Voltage: 24V |
| Tool box & tire carrier | One tool box , 2 pieces tire carrier |
| Light & reflector |
Rear light, rear reflector, turn indicative light, side reflector,fog lamp,number plate light |
