Fence Livestock Truck Trailer

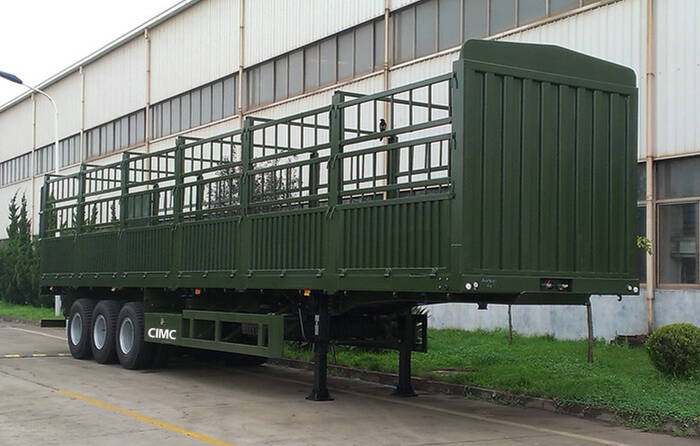

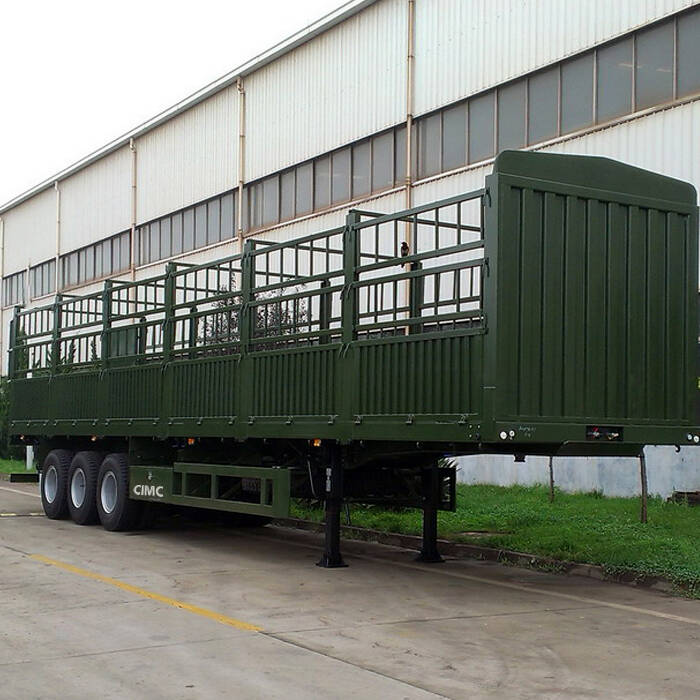

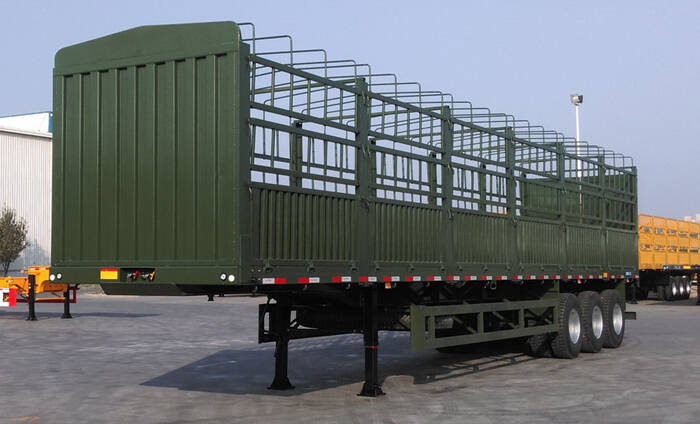

Fence Livestock Truck Trailer

Fence Livestock Truck Trailer

Brand :Livestock truck trailer
Payload:40~60 tons
Landing gear :JOST orequivalent with a lift capacity 28 tons
Kingpin :50(2inch)#or 90(3.5inch)# bolted type
Suspension:Mechanical

Product Description:

CIMC fence livestock trailer is a specified grain transport trailer . The trailer box is covered by tarpaulin. It's equipped with hoppers to speed discharging. It's warmly welcomed in East-south Asia and European countries.

CIMC provide the grain hopper trailer main beam material adopts Q345 high strength steel, it has strong and sturdy features. And the height of the side wall can be chosen.



Advantages:

1>Reduce the bag package process, makes the transportation cost down.

2>Speed the charging and discharing .

3>Scientific bottom hopper design makes a 0 residual volume.

4>Adopts rust proofing material for the box inside.

5>Equipped with spray system aviod the risk of tire blowing-out.



Specification:

L*W: 11900mm*2500mm

Sidewall Height: 1600mm

Max. Payload: <60T

Application: Coal/Cargo/Containers Loading

Material of the main beam : Q345 high strength steel

Bottom Platform: 3mm-5mm thick(according to the load capacity)

King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Support leg: JOST brand

Suspension: Airbag / Mechanical / bogie suspension

Axles: FUWA/BPW/CIMC/other

Tires: 12.00R22.5/315 80R22.5(Specially designed and for oversea markets)

Brake System: WABCO

Electrical System: 24-volt lighting system
