King pin: 2"(50mm)or3.5"(90mm) JOST
Function: Transport Sand and Stone Transport
Tire specification: 12pieces
Brake system: WABCO Valve

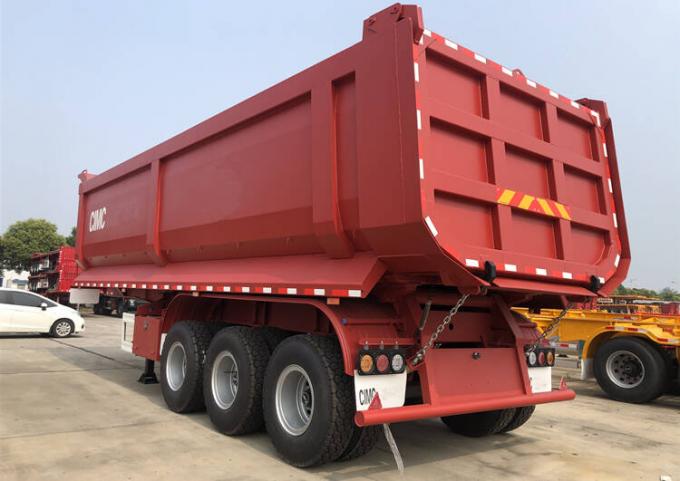

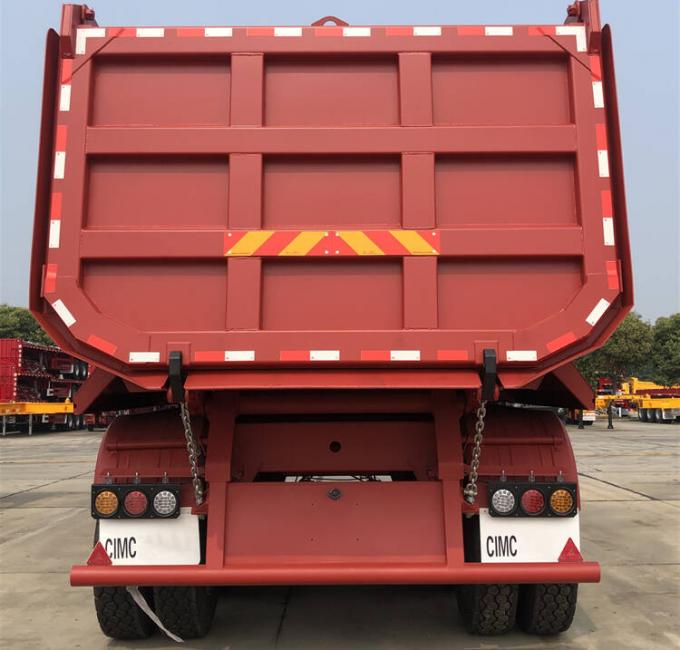

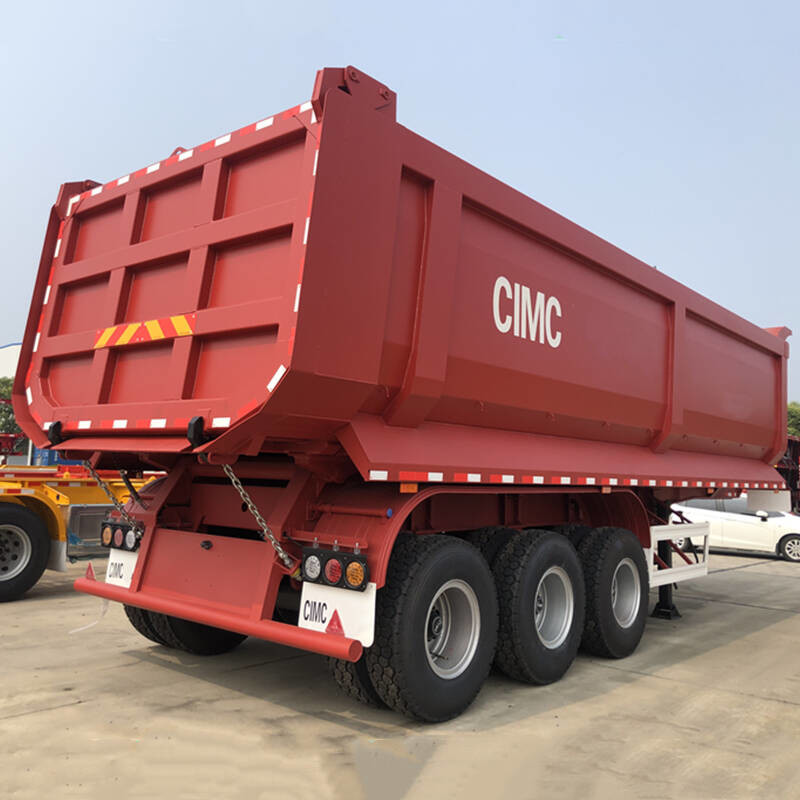

CIMC Tipper semi trailer can be used in many other fields such as construction, agriculture, etc. There are four types of tipper semi trailer: rear tipping semi trailers, side rock dump semi trailer, skeleton dump trailer, and flatbed type tipping trailer.
The tilt chassis trailer manufacturer’s hydraulic dump trailer can be customized from 15 tons to 80 tons, 80 tons to 120 tons, 120 tons-180 tons of different tonnage according to the different cargoes.
Hydraulic dump trailer can be customized from 15 tons to 80 tons, 80 tons to 120 tons, 120 tons-180 tons of different tonnage according to the different cargoes. The common volumes are 30 cubic meters, 32 cubic meters, 35 cubic meters, 45 cubic meters, 50 cubic meters, 60 cubic meters, 80 cubic meters and so on.
The high-pressure oil output by the gear pump enters the poppet valve through the high-pressure oil pipe.
The lift valve sends high pressure oil to the oil cylinder or discharges it into the hydraulic oil tank under the control of the air control valve, thereby achieving the functions of lifting, stopping and lowering the hydraulic oil cylinder.
| Overall dimension: | 9000*2500*4000mm |
| Volume: | 40-60T |
| Axles: | 3 axles |
| Suspension: | Heavy duty mechanical suspension |
| Tipping system: | 196 hydraulic cylinder |
| Tire | 12 units |
| King pin | 90# |
| Landing gear | JOST |
| Brake system | WABCO |
| Electrical system |
24V, LED lights |
semi trailer tipper For sale
Tipper semi Trailer Price
