Suspension: Mechanical / Air Suspension
Volume: 30-40Cubic metre
Material: Steel/Aluminum Alloy
King pin: 2"(50mm)or3.5"(90mm) JOST
CIMC 3 Axle Silo Bulk Cement Tanker Trailer of needs to accurately position the tank body after the shape of the tank body is determined Only accurate positioning can avoid problems such as traction pin wear, suspension tire wear, trailer tail flicking and center of gravity deviation.
The tank body of this model adopts the bottom price horizontal positioning platform with the function of automatic height adjustment. According to the difference in the height of the tractor saddles of different brands, it can ensure that the pneumatic tanker trailer chassis and the tractor saddle can completely match.

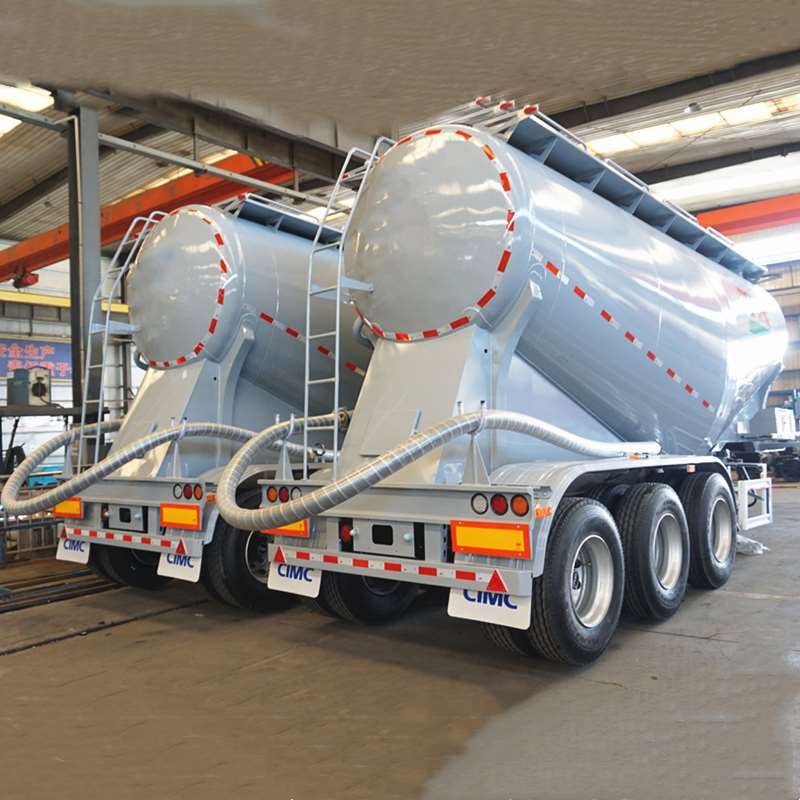

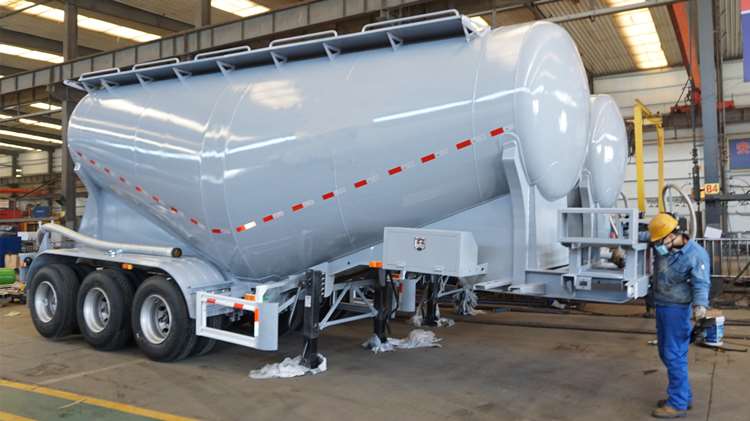

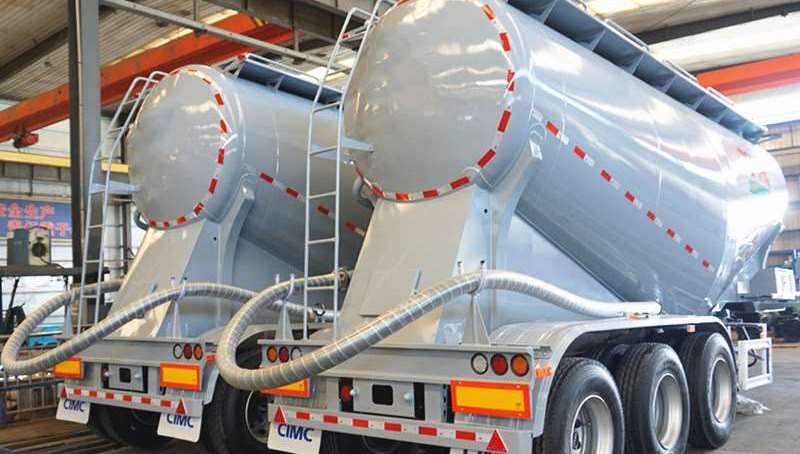

CIMC 3 Axle Silo Bulk Cement Tanker Trailer
| Dimension: | 9500*2500 *4000mm |
| Tank Body | |
| Tank thickness | 4 mm |
| Front & end plate | 4 mm |
| Tank rated pressure | 0.2Mpa |
| Discharging System | |
| Diesel Engine | Model 4102 Diesel |
| Air Compressor | 12 m³ one unit double cylinders compressor |
| Discharging valve | 4 inch butterfly valve |
| Discharging pipe | 1pcs, 6m/each |
| Manholes | 2 pcs |
| Trailer Chassis | |
| Main Beam | Welded design, |
| Axles | 3 axles |
| Landing gear | 28T |
| Kin pin | 3.5 inch high tensile bolt-in king pin |
| Suspension | Mechanical suspension with 10 layers leaf spring |
| Tire | 12.00R22.5 , |
| Braking system | WABCO emergency valve; |
| Electrical system | Voltage: 24V |
| Tool box & tire carrier | One tool box , 2 pieces tire carrier |
| Light & reflector | Rear light, rear reflector, turn indicative light, side reflector,fog lamp,number plate light |
